211-021-000 - MTD Tiller (1991) Chain Case Assembly Parts Diagram

Tiller

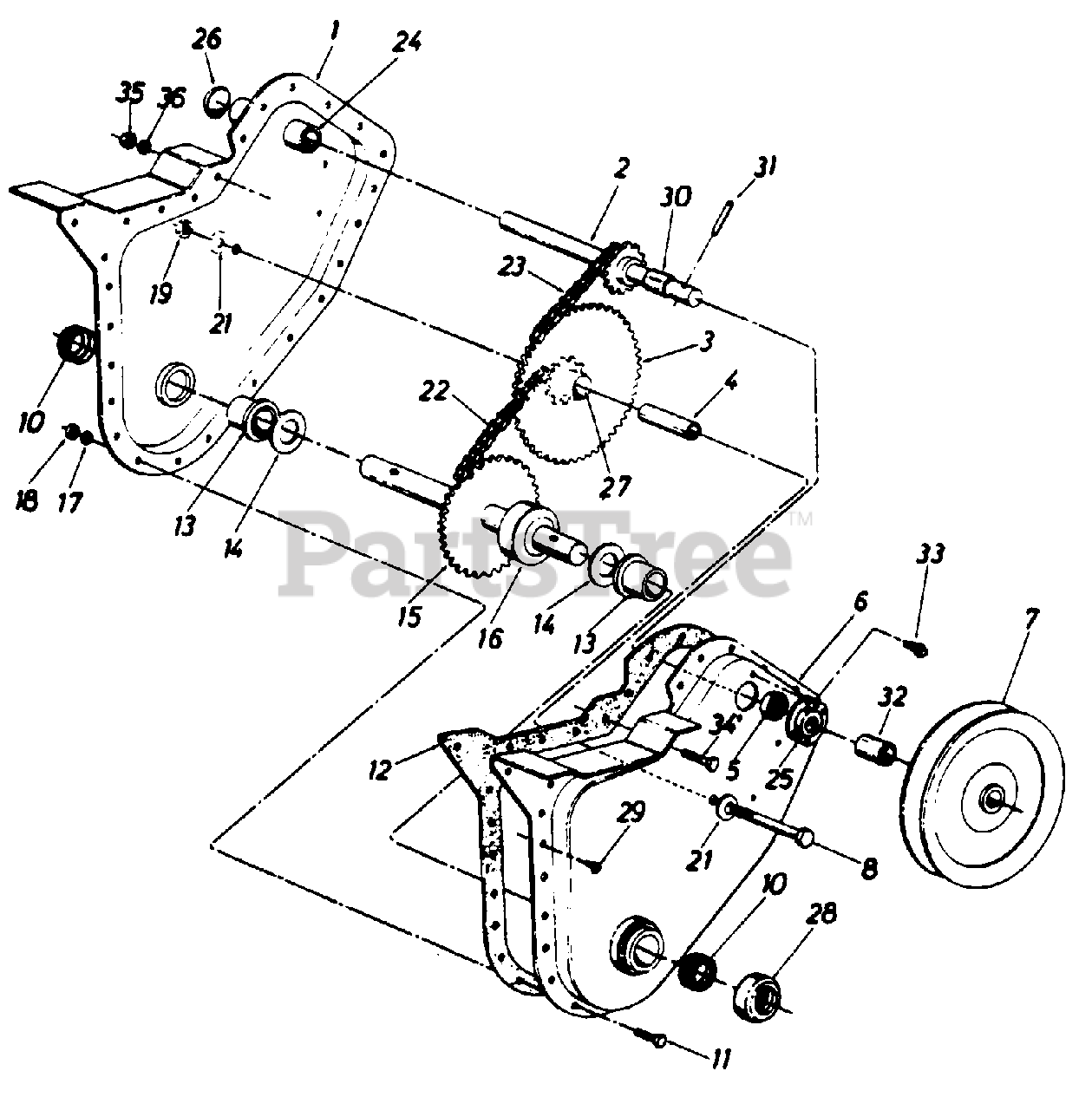

Chain Case Assembly Parts Diagram

  • Title
1

MTD 706-14423-00-90

RH Chain Case Ass'y

$

$

Currently unavailable

2

MTD 04756

Input Shatt Assembly

$

$

Not available

3

MTD 04757

Hub & Sprocket Assembly
(Superseded to 04757A)

$

$

Not available

4

MTD 750-0351

Bearing Inner Race

$

$

Not available

5

MTD 741-0155

Ball Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

6

MTD 706-14424-00-90

LH Chain Case Ass'y
(Superseded to 686-0087-0637)

$

$

Not available

7

MTD 756-0287

Pulley - Chain Case

$

$

Not available

8

MTD 710-0369

Hex Bolt 3/8-24 x 2-1/2

$6.49

$

Usually ships in 3-6 days

0

10

$

$

Not available

11

MTD 710-0195

Hex Bolt 1/4-28 x 5/8
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

12

MTD 721-0156

Gasket
(Superseded to 921-0156A)

$

$

Not available

13

MTD 741-0227

Flange Bearing 879 I D

$11.99

$

In Stock, Qty 20+

0

14

MTD 736-0265

Flat Washer

$

$

Not available

15

MTD 04920

Tine Shaft Assembly

$

$

Not available

16

MTD 750-0354A

Spacer

$

$

Not available

17

MTD 736-0329

Lock Washer 1/4 Spring
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

MTD 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

19

MTD 712-0116

Hex Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

21

MTD 736-0219

Bell Washer 3/8
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

MTD 713-0215

Chain #420 1/2 Pitch 38 Links

$

$

Not available

MTD 713-0154

Master Link #420
(Superseded to 913-0154)

$

$

Not available

23

MTD 713-0216

Chain #35 3/8 Pitch 50 Links

$

$

Not available

MTD 713-0139

Master Link #35
(Superseded to 913-0139)

$

$

Not available

24

MTD 748-0154

Bearing

$

$

Not available

25

MTD 05034A

Bearing Housing

$

$

Not available

26

MTD 726-0164

Expansion Plug

$

$

Not available

27

MTD 741-0228

Bearing

$

$

Not available

28

MTD 731-0486

Dust Cap

$

$

Not available

29

MTD 710-0599

Hex Tap. Screw 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

30

MTD 750-0471

Spacer

$

$

Not available

31

MTD 715-0114

Sprol Spring Pin 1/4 x 1-1/2

$9.49

$

In Stock, Qty 20+

0

32

MTD 750-0550

Spacer

$

$

Not available

33

MTD 710-0653

Hex Tap. Screw 1/4-20 x 3/8

$4.49

$

In Stock, Qty 8

0

34

MTD 710-0118

Hex Bolt 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

35

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0119

Lock Washer 5/16 Spring
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
