2109593 - Simplicity Model 64 Snow Thrower Attachment Hydraulic Valves - Control Group (3482I112) Parts Diagram

Model 64 Snow Thrower Attachment

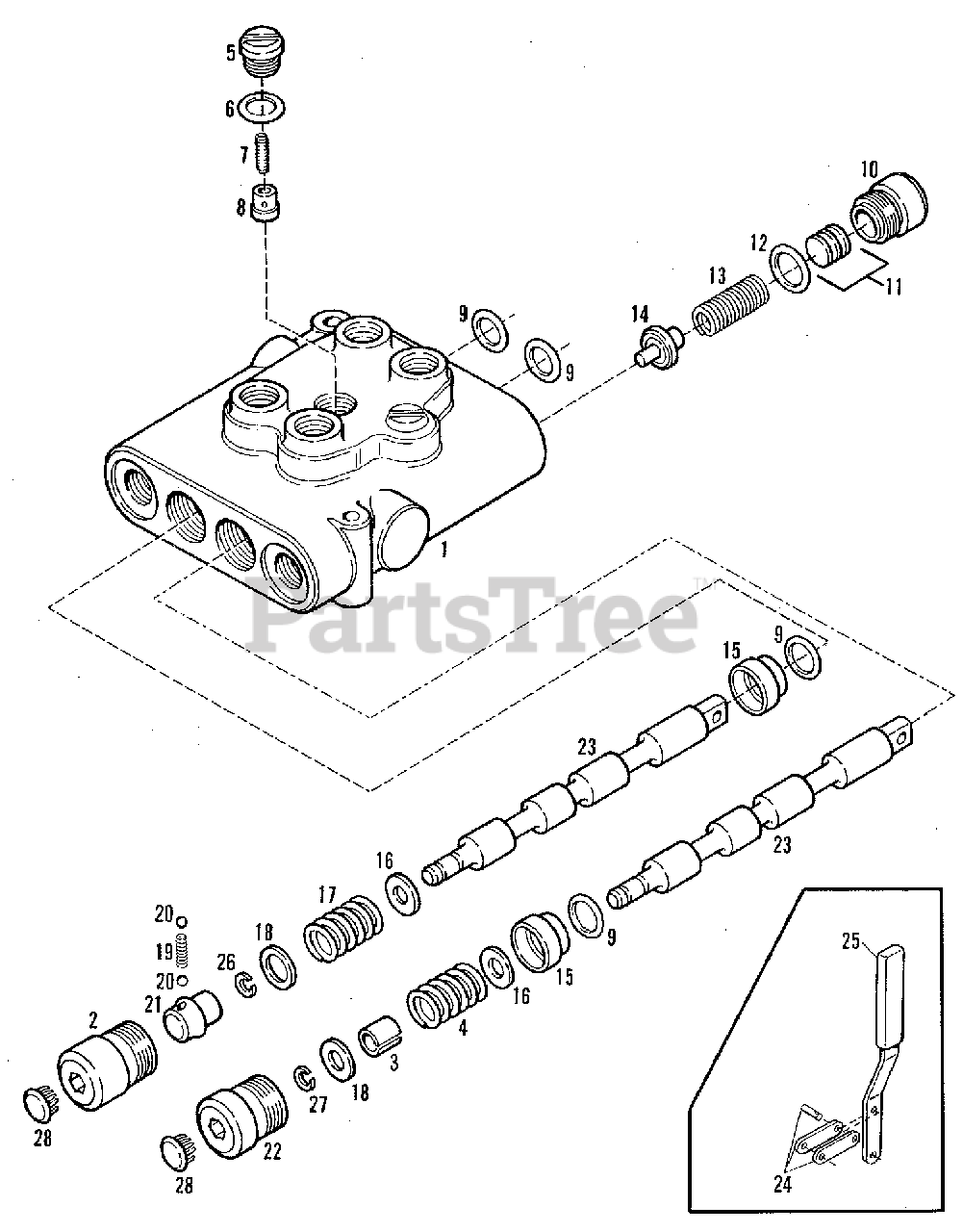

Hydraulic Valves - Control Group (3482I112) Parts Diagram

  • Title
-

Simplicity 2096109-0

VALVE ASSEMBLY, Complete

$

$

Not available

1

BODY, Valve

$

$

Not available

2

$

$

Not available

3

Simplicity 2096019-1

SPACER, Spool

$

$

Not available

4

Simplicity 2096022-5

SPRING, Spool Centering

$

$

Not available

5

Simplicity 2096147-0

PLUG ASSEMBLY, Lift Check

$

$

Not available

6

O-RING, Plug Assembly

$

$

Not available

7

Simplicity 2096018-3

SPRING, Lift Check Plug

$

$

Not available

8

Simplicity 2096017-5

PLUNGER, Lift Check Plug

$

$

Not available

9

O-RING, Spool

$

$

Not available

10

Simplicity 2096034-0

PLUG ASSEMBLY, Relief Valve

$

$

Not available

11

Simplicity 2096024-1

SHIM, Relief Valve (.015 Thick)

$

$

Not available

11

Simplicity 2096025-8

SHIM, Relief Valve (.010 Thick)

$

$

Not available

11

Simplicity 2096026-6

SHIM, Relief Valve (.035 Thick)

$

$

Not available

12

O-RING, Relief Valve Plug

$

$

Not available

13

Simplicity 2096033-2

SPRING, Relief Valve

$

$

Not available

14

Simplicity 2096023-3

POPPET, Relief Valve

$

$

Not available

15

Simplicity 2096021-7

BUSHING, Spool

$

$

Not available

16

Simplicity 2096039-9

WASHER, Spool (.020 Thick)

$

$

Not available

16

Simplicity 2096040-7

WASHER, Spool (.046 Thick)

$

$

Not available

17

Simplicity 2096029-0

SPRING, Spool Centering

$

$

Not available

18

Simplicity 2096031-6

WASHER, Spool (.046 Thick)

$

$

Not available

18

Simplicity 2096038-1

WASHER, Spool (.065 Thick)

$

$

Not available

19

Simplicity 2096035-7

SPRING, Detent

$

$

Not available

20

Simplicity 2096036-5

BALL, Detent Spring, 5/32 Diameter

$

$

Not available

21

Simplicity 2096221-3

CAP, Detent Adapter

$

$

Not available

22

Simplicity 2096148-8

CAP, Detent

$

$

Not available

23

SPOOL

$

$

Not available

24

Simplicity 2096015-9

LINK ASSEMBLY, Valve

$

$

Not available

25

Simplicity 2069016-7

HANDLE ASSEMBLY, Valve

$

$

Not available

25

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

26

Simplicity 2096218-9

RING, Retainer (5/16 Round Open)

$

$

Not available

27

Simplicity 2096219-7

RING, Retainer (Square - 5/16 Closed)

$

$

Not available

28

Simplicity 2096220-5

BUTTON, Insert

$

$

Not available

-

Simplicity 2096028-2

SEAL KIT, Valve O-Ring

$

$

Not available
