2109593 - Simplicity Model 64 Snow Thrower Attachment Hitch & Drive Assembly - Tractor End Group (3482I102) Parts Diagram

Model 64 Snow Thrower Attachment

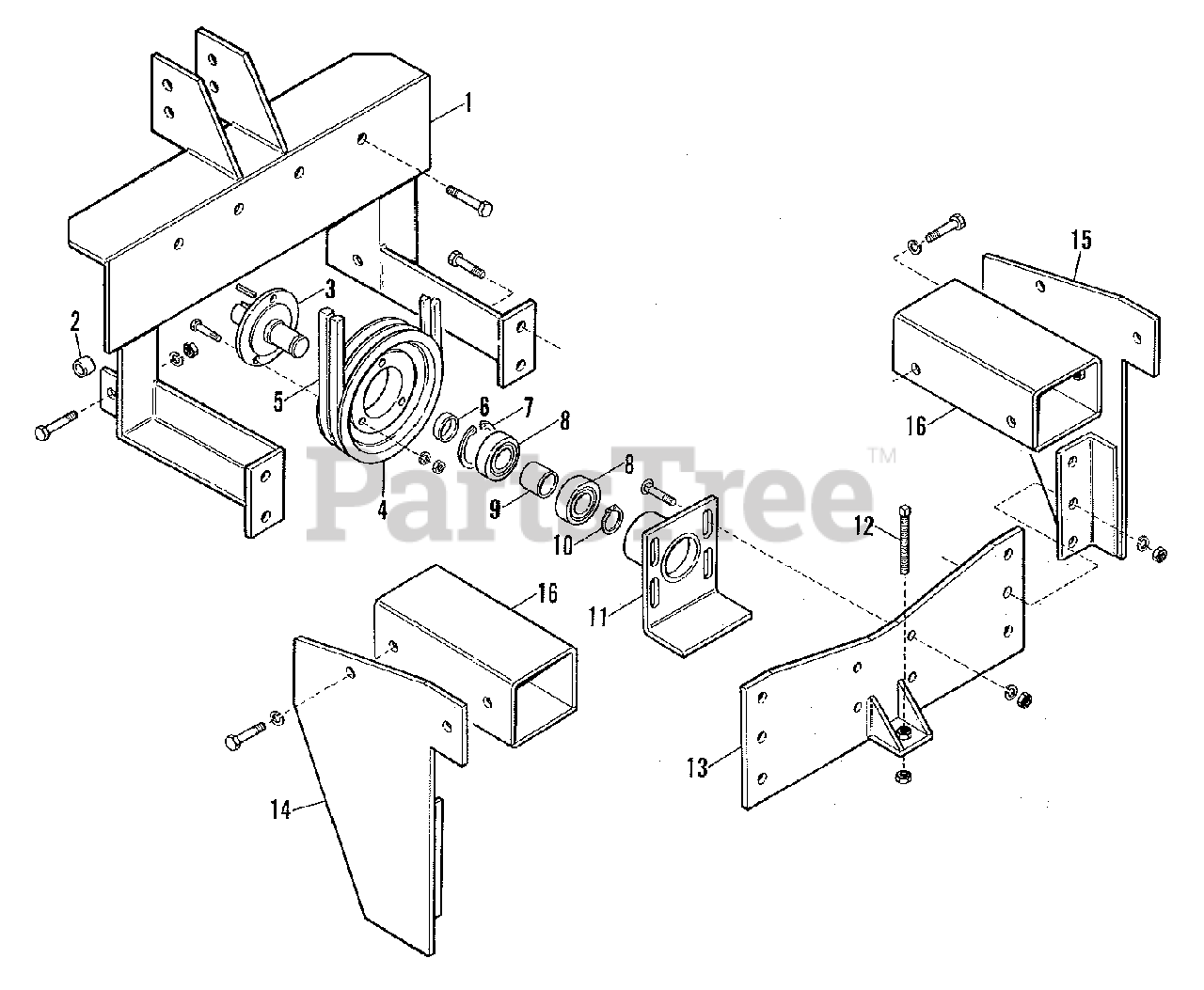

Hitch & Drive Assembly - Tractor End Group (3482I102) Parts Diagram

  • Title

1

Simplicity 2109608-6

FRAME ASSEMBLY, Drop

$

$

Not available

1

Simplicity 0929837-3

CAPSCREW, 9/16NC x 1-1/2

$

$

Not available

1

Simplicity 0920326-6

LOCKWASHER, 9/16

$

$

Not available

1

Simplicity 0920384-5

NUT, 9/16NC

$

$

Not available

1

Simplicity 0919084-4

CAPSCREW, 1/2NC x 1-3/4

$

$

Not available

1

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

2

Simplicity 2109540-1

BUSHING

$

$

Not available

3

Simplicity 2109554-2

SHAFT ASSEMBLY

$

$

Not available

3

Simplicity 0921346-3

KEY, Square, 1/4 x 1/4 x 1

$

$

Not available

3

Simplicity 0921449-5

CAPSCREW, 1/4NC x 1-1/4

$

$

Not available

3

Simplicity 0919310-3

LOCKWASHER, 1/4

$

$

Not available

3

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

4

Simplicity 2109549-2

SHEAVE (5-27/32" O.D.)

$

$

Not available

5

Simplicity 2109552-6

BELT SET, Matched, Set of 2 (38" Belt for 5030 w/Turf Tires)

$

$

Not available

5

Simplicity 2109553-4

BELT SET, Matched, Set of 2 (42" Belt for 5020 w/Ag. Or Turf Tires - 2-Wheel Only)

$

$

Not available

5

Simplicity 2109599-7

BELT SET, Matched, Set of 2 (46" Belt for 5020 w/4-Wheel Drive & for 5030 w/Ag. Tires)

$

$

Not available

6

Simplicity 2109550-0

SPACER, Shaft

$

$

Not available

7

Simplicity 0927698-1

RING, Retaining, Internal

$

$

Not available

8

Simplicity 2109582-3

BEARING, Drive Pulley Shaft

$

$

Not available

9

Simplicity 2109551-8

SPACER, Bearing

$

$

Not available

10

Simplicity 0927737-7

RING, Retaining

$

$

Not available

11

Simplicity 2109609-4

HOUSING ASSEMBLY, Bearing

$

$

Not available

11

Simplicity 0931351-1

BOLT, Carriage, 3/8NC x 1-1/4

$

$

Not available

11

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

11

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

12

Simplicity 0903811-8

SETSCREW, Square Head, Cup Point, 3/8NC x 3

$

$

Not available

12

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

13

Simplicity 2109610-2

PLATE, Mounting, PTO

$

$

Not available

14

Simplicity 2109542-7

PLATE, Frame, L.H.

$

$

Not available

14

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

14

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

15

Simplicity 2109545-0

PLATE, Frame, R.H.

$

$

Not available

15

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

15

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

16

Simplicity 2109544-3

SPACER

$

$

Not available

16

Simplicity 0950989-4

*BOLT, Carriage, 12MM x 45MM (Use on 5020 - 2-Wheel Drive Only)

$

$

Not available

16

Simplicity 0950221-2

*LOCKWASHER, 12MM (Use on 5020 - 2-Wheel Drive Only)

$

$

Not available

16

Simplicity 0919089-3

*CAPSCREW, 1/2NC x 1-3/4 (Use on 5020 FWD)

$

$

Not available

16

Simplicity 0916966-5

*LOCKWASHER, 1/2 (Use on 5020 FWD)

$

$

Not available

16

Simplicity 0916951-7

*NUT, 1/2NC (Use on 5020 FWD)

$

$

Not available

17

Simplicity 2109631-8

SPACER, Plate

$

$

Not available
