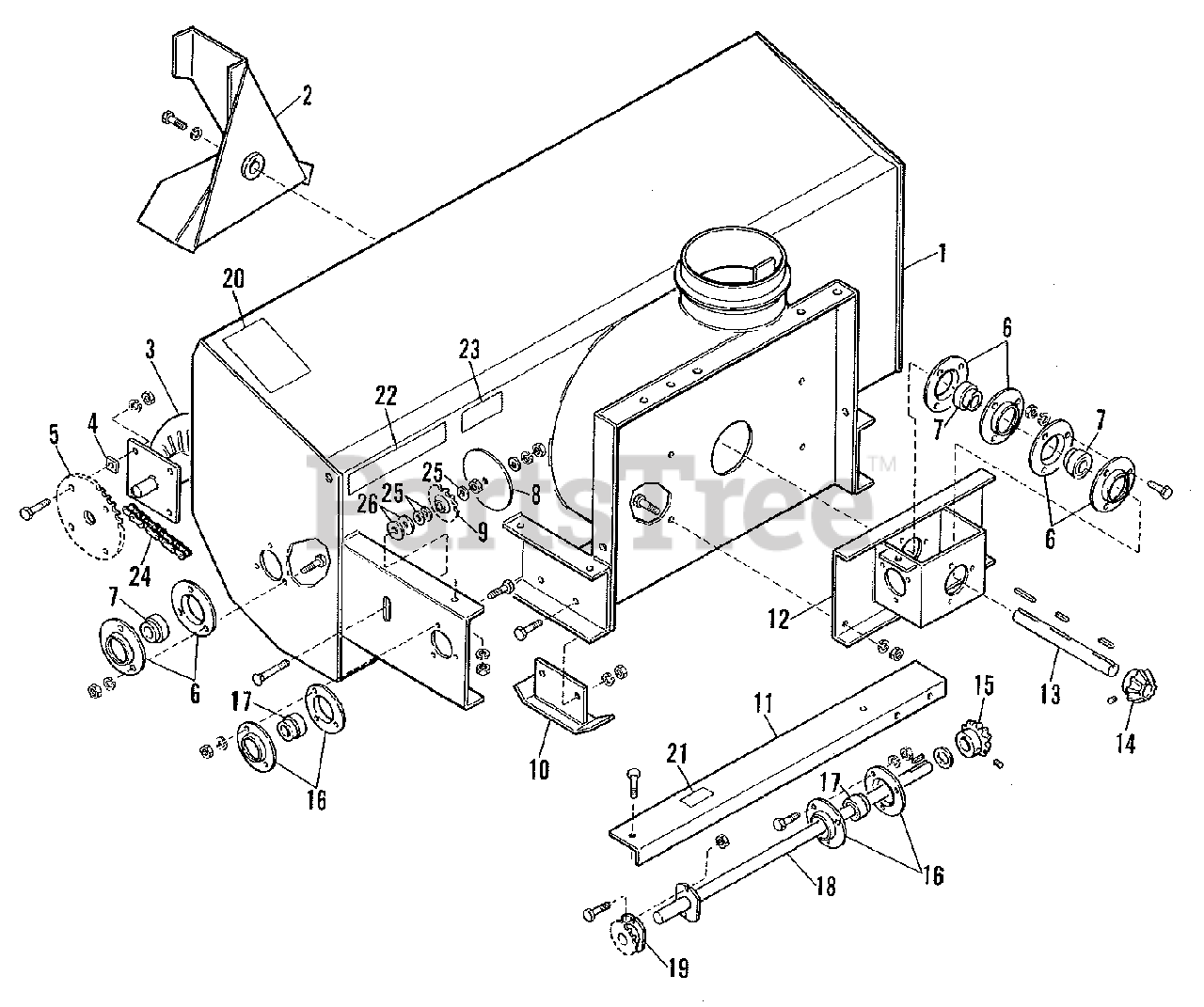

2109593 - Simplicity Model 64 Snow Thrower Attachment Frame - Housing & Drive Group (3482I99) Parts Diagram

Model 64 Snow Thrower Attachment

Frame - Housing & Drive Group (3482I99) Parts Diagram

  • Title

1

Simplicity 2109510-4

BODY ASSEMBLY

$

$

Not available

2

Simplicity 2109511-2

ROTOR ASSEMBLY

$

$

Not available

2

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

2

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

3

Simplicity 2109515-3

AUGER ASSEMBLY

$

$

Not available

4

Simplicity 2109517-9

SPACER

$

$

Not available

5

Simplicity 2109516-1

SPROCKET

$

$

Not available

5

Simplicity 0921969-2

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

5

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

5

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

6

Simplicity 0593179-5

FLANGE, Bearing (3-Hole)

$

$

Not available

6

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

6

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

7

Simplicity 0590711-8

BEARING, Auger & Rotor Shafts

$

$

Not available

8

Simplicity 2109518-7

SHIELD, Chain

$

$

Not available

8

Simplicity 0931370-1

BOLT, Carriage, 1/2NC x 2-3/4

$

$

Not available

8

Simplicity 0929304-4

WASHER, Plain, 13/16 x 1-1/4 x 10 Ga.

$

$

Not available

8

Simplicity 0918431-8

WASHER, Plain, 9/16 x 1-3/8 x 12 Ga.

$

$

Not available

8

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

8

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

9

Simplicity 2109519-5

IDLER, Chain

$

$

Not available

10

Simplicity 2109513-8

SKID

$

$

Not available

10

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

10

Simplicity 0918431-8

WASHER, Plain, 9/16 x 1-3/8 x 12 Ga.

$

$

Not available

10

Simplicity 0922134-2

NUT, Lock, 1/2NC

$

$

Not available

11

Simplicity 2109514-6

SHIELD, Cross Shaft

$

$

Not available

11

Simplicity 0921332-3

CAPSCREW, 5/16NC x 3/4

$

$

Not available

11

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 16 Ga.

$

$

Not available

11

Simplicity 0919311-1

LOCKWSHER, 5/16

$

$

Not available

11

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

12

Simplicity 2109512-0

CASE, Gear Assembly

$

$

Not available

12

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

12

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

12

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

13

Simplicity 2109524-5

SHAFT, Rotor

$

$

Not available

13

Simplicity 0906168-0

KEY, Square, 1/4 x 1/4 x 3

$

$

Not available

13

Simplicity 0905856-1

KEY, Square, 1/4 x 1/4 x 1-1/2

$

$

Not available

14

Simplicity 2109523-7

GEAR, Bevel 1-1/4" Bore (19T)

$

$

Not available

14

Simplicity 0914383-5

SETSCREW, Hex Socket Knurled Cup Point, 3/8 x 1/2

$

$

Not available

15

Simplicity 2109522-9

GEAR, Bevel, 7/8" Bore (19T)

$

$

Not available

16

Simplicity 1114839-2

FLANGE, Bearing (3-Hole)

$

$

Not available

16

Simplicity 0921332-3

CAPSCREW, 5/16NC x 3/4

$

$

Not available

16

Simplicity 0921333-1

CAPSCREW, 5/16NC x 1

$

$

Not available

16

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

16

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

17

Simplicity 1308770-5

BEARING, Cross Shaft

$

$

Not available

18

Simplicity 2109521-1

SHAFT, Cross

$

$

Not available

18

Simplicity 0905850-4

KEY, Square, 3/16 x 3/16 x 1

$

$

Not available

18

Simplicity 0921960-1

BOLT, Shear, 1/4NC x 1

$

$

Not available

18

Simplicity 0923358-6

NUT, Lock, 1/4NC

$

$

Not available

19

Simplicity 2109520-3

SPROCKET, Auger Drive

$

$

Not available

20

Simplicity 2109507-0

DECAL, Caution

$

$

Not available

21

Simplicity 2109508-8

DECAL, Chain Oil

$

$

Not available

22

Simplicity 0579149-6

DECAL (Allis-Chalmers)

$

$

Not available

23

Simplicity 0593746-1

DECAL (64 Model Identification)

$

$

Not available

24

CHAIN, 5/8 Pitch

$

$

Not available

24

Simplicity 0921049-3

CHAIN, Bulk, 5/8 Pitch (10ft Roll)

$

$

Not available

24

Simplicity 0926363-3

CHAIN, Bulk, 5/8 Pitch (50ft. Roll)

$

$

Not available

24

Simplicity 0913681-3

LINK, Roller

$

$

Not available

24

Simplicity 0913680-5

LINK, Offset

$

$

Not available

24

Simplicity 0913682-1

LINK, Connecting

$

$

Not available

25

Simplicity 2109634-2

BUSHING, Machinery

$

$

Not available

26

Simplicity 2109635-9

SPACER

$

$

Not available
