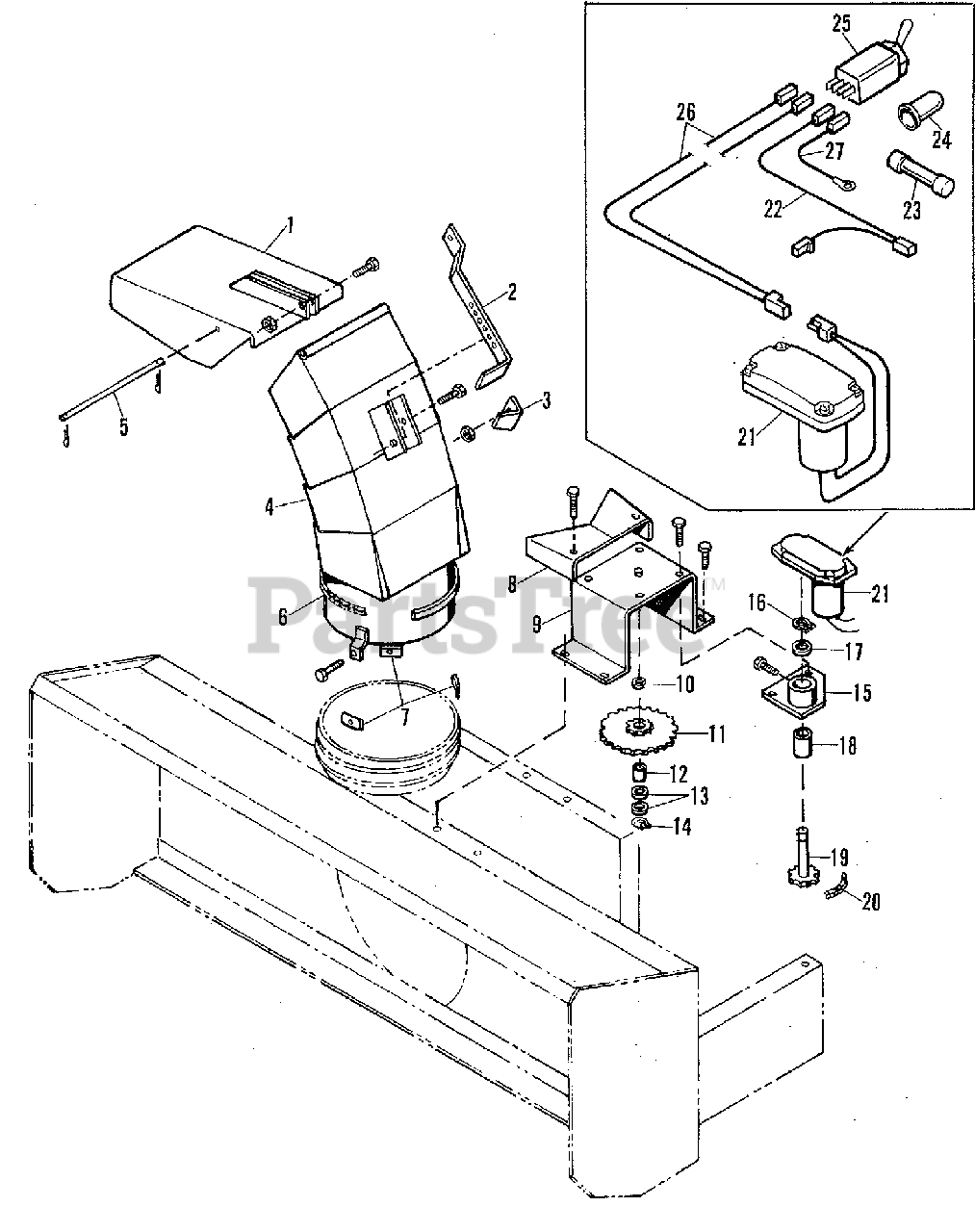

2109593 - Simplicity Model 64 Snow Thrower Attachment Electrical & Instruments - Electric Spout & Controls Group (3482I106) Parts Diagram

Model 64 Snow Thrower Attachment

Electrical & Instruments - Electric Spout & Controls Group (3482I106) Parts Diagram

  • Title

1

Simplicity 2109568-2

DEFLECTOR

$

$

Not available

1

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

1

Simplicity 0922134-2

NUT, Huglock, 1/2NC

$

$

Not available

2

Simplicity 2109569-0

HANDLE

$

$

Not available

3

Simplicity 2109567-4

LOCK, Adjuster

$

$

Not available

3

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

3

Simplicity 0922134-2

NUT, Huglock, 1/2NC

$

$

Not available

4

Simplicity 2109571-6

SPOUT ASSEMBLY

$

$

Not available

4

Simplicity 0921984-1

CAPSCREW, 3/8NC x 3/4

$

$

Not available

4

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

5

Simplicity 2109570-8

ROD, Hinge

$

$

Not available

5

Simplicity 0918452-4

PIN, Cotter, 1/8 x 1

$

$

Not available

6

CHAIN, 1/2 Pitch (Chute Rotator)

$

$

Not available

6

Simplicity 0921047-7

CHAIN, Bulk, 1/2 Pitch (10ft. Roll)

$

$

Not available

6

Simplicity 0926361-7

CHAIN, Bulk, 1/2 Pitch (50Ft. Roll)

$

$

Not available

6

Simplicity 0924833-7

LINK, Roller

$

$

Not available

6

Simplicity 0918718-8

LINK, Offset

$

$

Not available

6

Simplicity 0915515-1

LINK, Connecting

$

$

Not available

7

Simplicity 2109566-6

RING, Slip

$

$

Not available

8

Simplicity 2109612-8

SHIELD, Chain

$

$

Not available

8

Simplicity 0920787-9

CAPSCREW, 5/16 NC x 1/2

$

$

Not available

8

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 16 Ga.

$

$

Not available

8

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

9

Simplicity 2109613-6

BRACKET, Chute Rotator

$

$

Not available

9

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

9

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

9

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

9

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

10

Simplicity 2109614-4

SPACER, Idler

$

$

Not available

11

Simplicity 2109615-1

IDLER

$

$

Not available

12

Simplicity 2109616-9

BUSHING

$

$

Not available

13

Simplicity 2109617-7

BUSHING, Machine

$

$

Not available

14

Simplicity 2109618-5

RING, Retaining

$

$

Not available

15

Simplicity 2109628-4

BRACKET, Actuator

$

$

Not available

15

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

15

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

15

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

15

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

16

Simplicity 2109626-8

RING, Retaining

$

$

Not available

17

Simplicity 2109627-6

BUSHING

$

$

Not available

18

Simplicity 2109621-9

BUSHING, Bronze

$

$

Not available

19

Simplicity 2109620-1

SHAFT, Drive

$

$

Not available

20

CHAIN, 3/8 Pitch (Chute Actuator)

$

$

Not available

20

Simplicity 0928185-8

CHAIN, Bulk, 3/8 Pitch (10ft. Roll)

$

$

Not available

20

Simplicity 0928939-8

CHAIN, Bulk, 3/8 Pitch (50ft. Roll)

$

$

Not available

20

Simplicity 0928940-6

LINK, Roller

$

$

Not available

20

Simplicity 0928183-3

LINK, Offset

$

$

Not available

20

Simplicity 0931067-3

LINK, Connecting

$

$

Not available

21

Simplicity 2109625-0

MOTOR & GEARBOX ASSEMBLY

$

$

Not available

22

Simplicity 2109622-7

HARNESS, Wiring

$

$

Not available

23

Simplicity 0208960-5

FUSE, 20 Amp (Tractor Fuse Box)

$

$

Not available

24

Simplicity 2109623-5

BOOT, Switch

$

$

Not available

25

Simplicity 2109624-3

SWITCH, Electric Toggle

$

$

Not available

26

Simplicity 2109633-4

WIRE ASSEMBLY (Electric Clutch & Spout Control

$

$

Not available

27

Simplicity 2109632-6

WIRE ASSEMBLY, Ground

$

$

Not available
