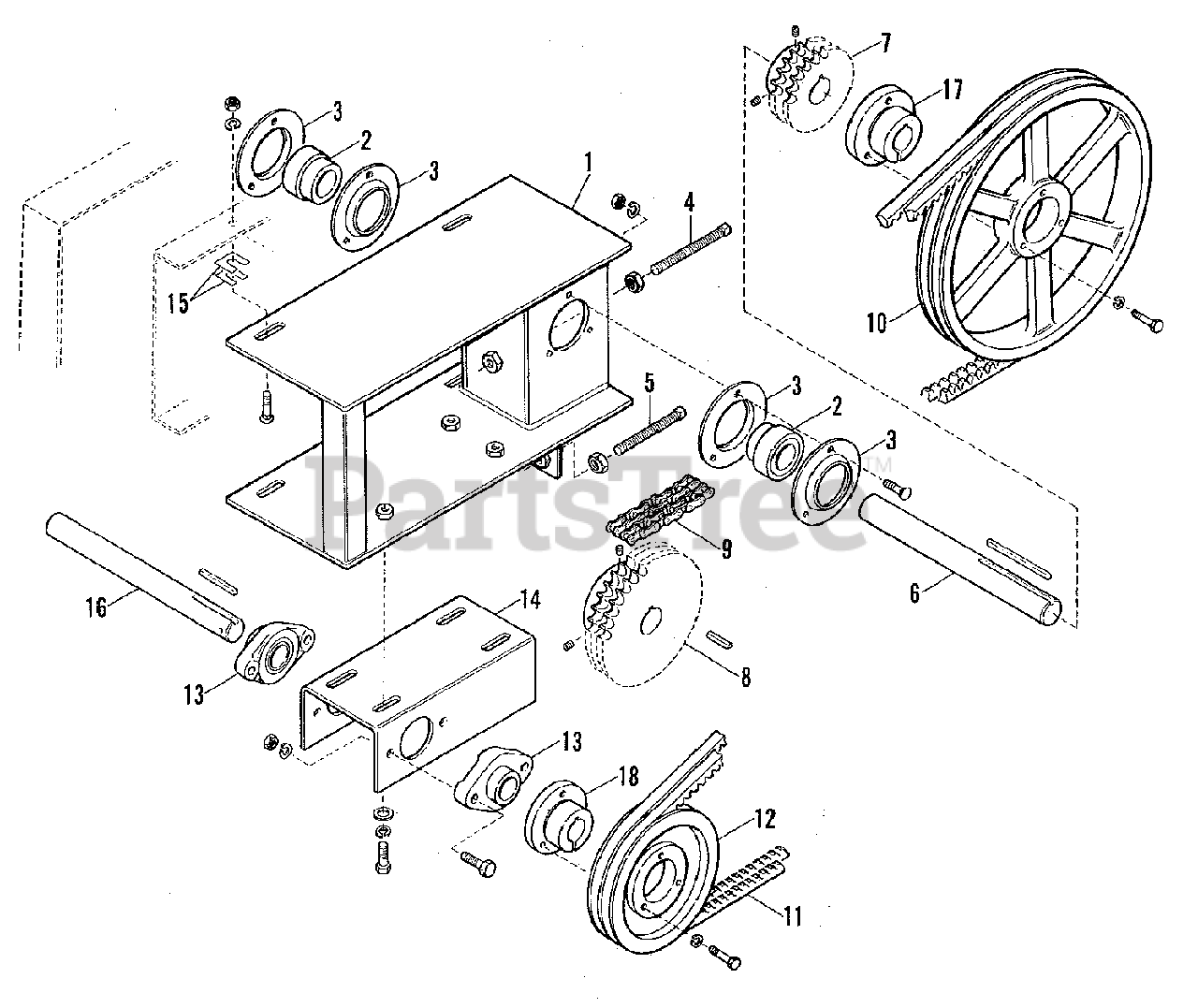

2109593 - Simplicity Model 64 Snow Thrower Attachment Drives - Reduction Drives Group (3482I103) Parts Diagram

Model 64 Snow Thrower Attachment

Drives - Reduction Drives Group (3482I103) Parts Diagram

  • Title

1

Simplicity 2109594-8

FRAME ASSEMBLY, Mounting

$

$

Not available

1

Simplicity 0931351-1

BOLT, Carriage, 3/8NC x 1-1/4

$

$

Not available

1

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

1

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

2

Simplicity 0590711-8

BEARING, Reduction Drive Shaft (1-1/4" Bore)

$

$

Not available

3

Simplicity 0533636-7

FLANGE, Bearing

$

$

Not available

3

Simplicity 0931348-7

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

3

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

3

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 2109528-6

SETSCREW, 1/2NC x 5

$

$

Not available

4

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

5

Simplicity 2109529-4

SETSCREW, 1/2NC x 4

$

$

Not available

5

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

6

Simplicity 2109595-5

SHAFT, Reduction (Driven)

$

$

Not available

6

Simplicity 0934888-9

KEY, Square, 1/4 x 1/4 x 3-1/2

$

$

Not available

7

Simplicity 2109596-3

SPROCKET ASSEMBLY (Double -17T)

$

$

Not available

7

Simplicity 0929277-2

SETSCREW, Socket Head, 3/8NC x 3/8

$

$

Not available

8

Simplicity 2109600-3

SPROCKET ASSEMBLY (Double -36T)

$

$

Not available

8

Simplicity 0929277-2

SETSCREW, Socket Head, 3/8NC x 3/8

$

$

Not available

8

Simplicity 0905098-0

KEY, Square, 1/4 x 1/4 x 1-5/8

$

$

Not available

9

Simplicity 2109601-1

CHAIN, Double Strand, #40, 1/2 Pitch (62 Pitches)

$

$

Not available

9

Simplicity 2109636-7

LINK, Connecting

$

$

Not available

10

Simplicity 2109598-9

SHEAVE (9-1/4" O.D.)

$

$

Not available

11

Simplicity 2109599-7

BELT SET, Matched, Set of 2 (46")

$

$

Not available

12

Simplicity 2109603-7

SHEAVE

$

$

Not available

13

Simplicity 2109581-5

BEARING ASSEMBLY

$

$

Not available

13

Simplicity 0921969-2

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

13

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

13

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

14

Simplicity 2109532-8

BRACKET, Bearing

$

$

Not available

14

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

14

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

14

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

15

Simplicity 2109535-1

SHIM

$

$

Not available

16

Simplicity 2109530-2

SHAFT, Reduction, Drive

$

$

Not available

16

Simplicity 0910301-1

KEY, Square, 1/4 x 1/4 x 1-3/8

$

$

Not available

17

Simplicity 2109597-1

BUSHING, 1-1/4" Bore

$

$

Not available

17

Simplicity 0922837-0

BOLT, Carriage, 1/4NC x 1-1/2

$

$

Not available

17

Simplicity 0919310-3

LOCKWASHER, 1/4

$

$

Not available

18

Simplicity 2109602-9

BUSHING, 1" Bore

$

$

Not available

18

Simplicity 0922837-0

BOLT, Carriage, 1/4NC x 1-1/2

$

$

Not available

18

Simplicity 0919310-3

LOCKWASHER, 1/4

$

$

Not available
