2109505 - Simplicity Spout & Controls Manual Frame - Spout & Controls Group (3482I100) Parts Diagram

Spout & Controls Manual

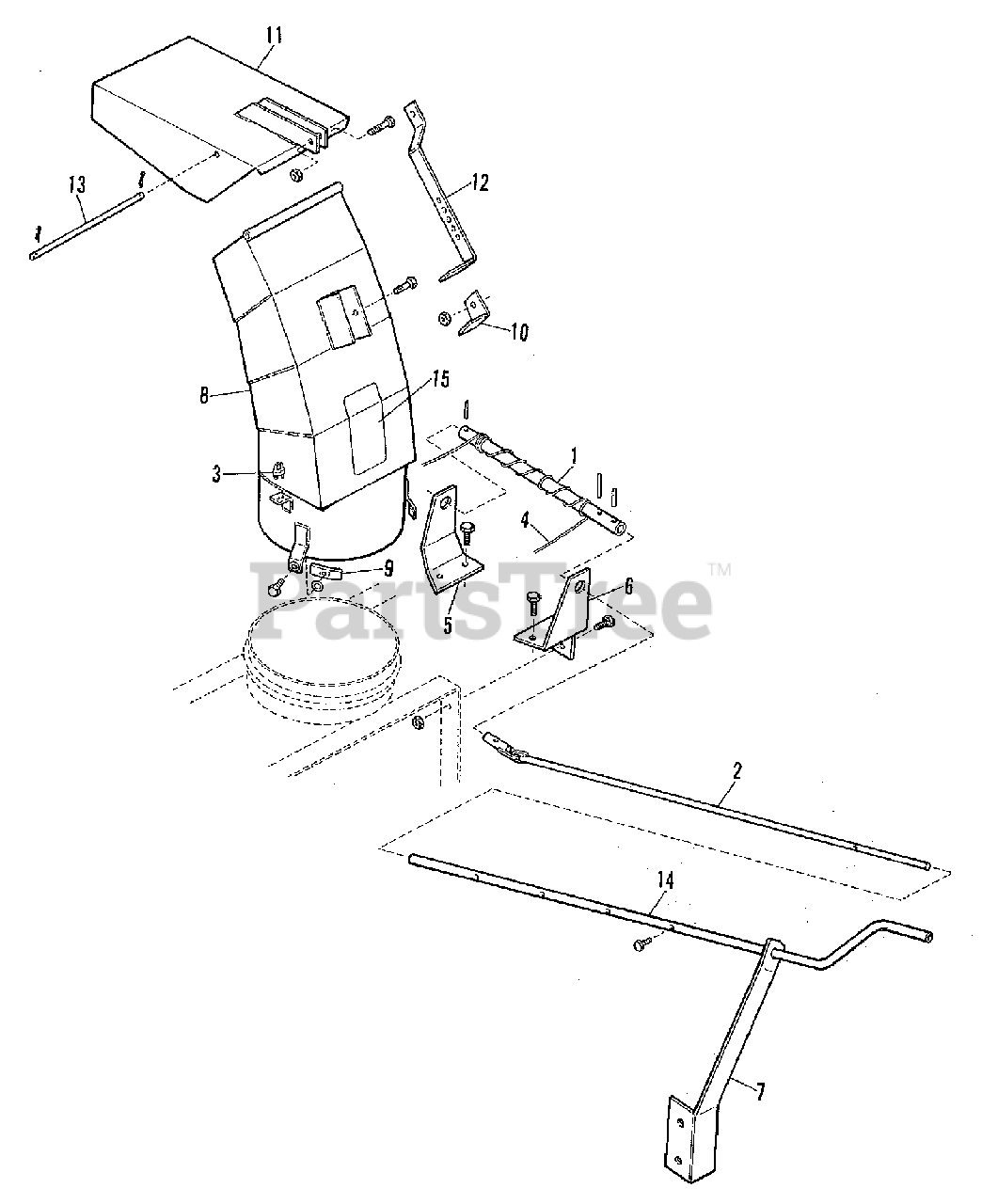

Frame - Spout & Controls Group (3482I100) Parts Diagram

  • Title

1

Simplicity 2109559-1

SHAFT, Spout Rotator

$

$

Not available

1

Simplicity 0923128-3

PIN, Roll, 1/4 x 1-1/2

$

$

Not available

2

Simplicity 2109560-9

SHAFT, Adjustable

$

$

Not available

2

Simplicity 0923128-3

PIN, Roll, 1/4 x 1-1/2

$

$

Not available

3

Simplicity 0549220-2

CLAMP, Cable

$

$

Not available

4

Simplicity 2109562-5

CABLE ASSEMBLY

$

$

Not available

5

Simplicity 2109563-3

BRACKET, Front

$

$

Not available

5

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

5

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

5

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

6

Simplicity 2109564-1

BRACKET, Rear

$

$

Not available

6

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

6

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

7

Simplicity 2109565-8

BRACKET, Handle

$

$

Not available

8

Simplicity 2109571-6

SPOUT ASSEMBLY

$

$

Not available

8

Simplicity 0921984-1

CAPSCREW, 3/8NC x 3/4

$

$

Not available

8

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

9

Simplicity 2109566-6

RING, Slip

$

$

Not available

10

Simplicity 2109567-4

LOCK, Adjuster

$

$

Not available

10

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

10

Simplicity 0922134-2

NUT, Huglock, 1/2NC

$

$

Not available

11

Simplicity 2109568-2

DEFLECTOR

$

$

Not available

11

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

11

Simplicity 0922134-2

NUT, Huglock, 1/2NC

$

$

Not available

12

Simplicity 2109569-0

HANDLE

$

$

Not available

13

Simplicity 2109570-8

ROD, Hinge

$

$

Not available

13

Simplicity 0918452-4

PIN, Cotter, 1/8 x 1

$

$

Not available

14

Simplicity 2109561-7

CRANK

$

$

Not available

14

Simplicity 0921961-9

CAPSCREW, 1/4NC x 1-1/4

$

$

Not available

14

Simplicity 0919310-3

LOCKWASHER, 1/4

$

$

Not available

14

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

15

Simplicity 2109506-2

DECAL, Warning

$

$

Not available
