2109001 (410) - Simplicity 72" Dozer Blade Hydraulic Lines - Cylinders & Control Valve Group (3482I12) Parts Diagram

72" Dozer Blade

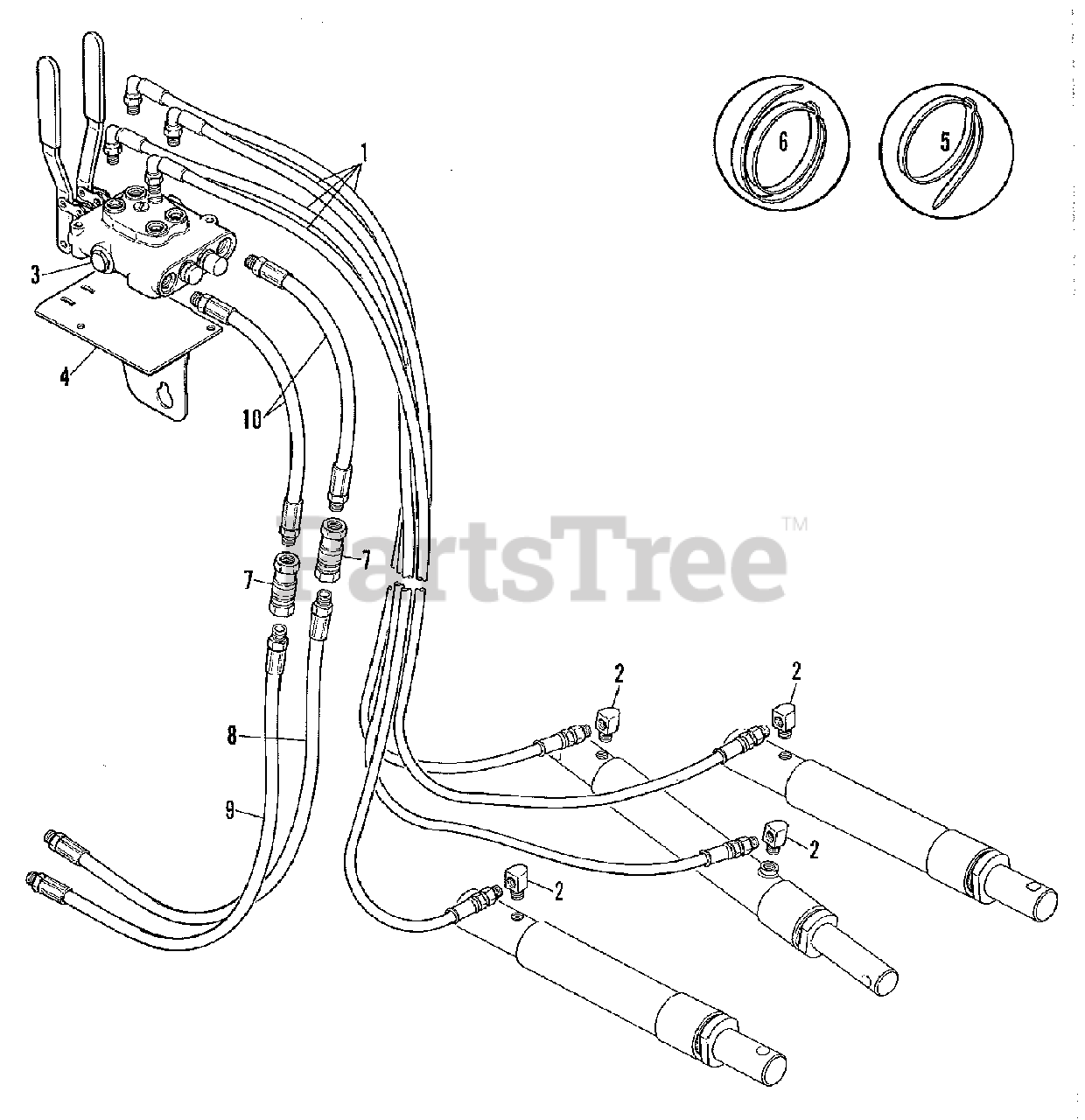

Hydraulic Lines - Cylinders & Control Valve Group (3482I12) Parts Diagram

  • Title

1

Simplicity 2096111-6

HOSE ASSEMBLY

$

$

Not available

2

Simplicity 0932606-7

ELBOW, Street, 90 Degrees

$

$

Not available

3

Simplicity 2096109-0

VALVE, Control

$

$

Not available

3

Simplicity 0921963-5

CAPSCREW, 1/4NC x 2

$

$

Not available

3

Simplicity 0919310-3

LOCKWASHER, 1/4

$

$

Not available

3

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

4

Simplicity 2096110-8

BRACKET, Valve Mounting

$

$

Not available

4

Simplicity 0950019-0

CAPSCREW, 8mm x 25mm

$

$

Not available

4

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

4

Simplicity 0917377-4

WASHER, Plain

$

$

Not available

5

Simplicity 0925442-6

TIE, Plastic

$

$

Not available

6

Simplicity 0929807-6

TIE, Plastic

$

$

Not available

7

Simplicity 2096043-1

COUPLER, Hose

$

$

Not available

8

Simplicity 2096046-4

HOSE ASSEMBLY (Selector Valve to Control)

$

$

Not available

9

Simplicity 2096047-2

HOSE ASSEMBLY (Control to Manifold)

$

$

Not available

10

Simplicity 2096048-0

HOSE ASSEMBLY (Valve Inlet & Outlet)

$

$

Not available
