2109001 (410) - Simplicity 72" Dozer Blade Blade & Support Frame - Free Floating Chain Group (3482I10) Parts Diagram

72" Dozer Blade

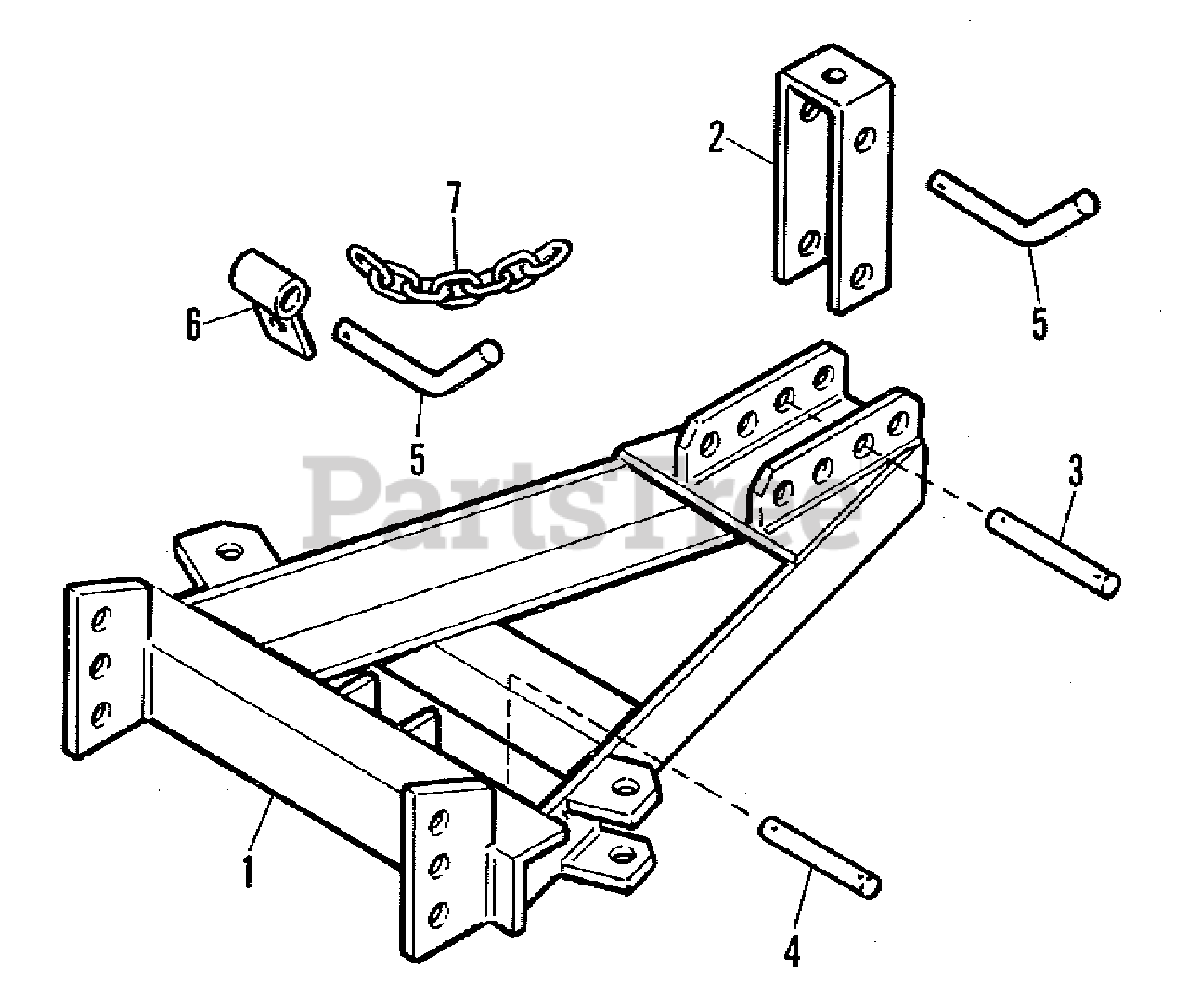

Blade & Support Frame - Free Floating Chain Group (3482I10) Parts Diagram

  • Title

1

Simplicity 2109005-5

FRAME ASSEMBLY

$

$

Not available

1

Simplicity 0923292-7

CAPSCREW, 3/4NC x 2

$

$

Not available

1

Simplicity 0926662-8

NUT, Lock, 3/4NC

$

$

Not available

2

Simplicity 2109016-2

ARM, Chain Lift

$

$

Not available

2

Simplicity 0925696-7

CAPSCREW, 7/16NC x 2

$

$

Not available

2

Simplicity 0921347-1

WASHER, Plain, 15/32 x 1 x 14 Ga.

$

$

Not available

2

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

2

Simplicity 0918213-0

NUT, 7/16NC

$

$

Not available

3

Simplicity 2109013-9

PIN, Chain, Lift Arm

$

$

Not available

3

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

4

Simplicity 2109014-7

PIN, Straight, Lift Cylinder

$

$

Not available

4

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

5

Simplicity 2109015-4

PIN, Pistol Grip, Lift Cylinder

$

$

Not available

5

Simplicity 9002803-6

CLIP, Hairpin

$

$

Not available

6

Simplicity 2109017-0

ADAPTER, Chain Lift, Upper

$

$

Not available

6

Simplicity 0925696-7

CAPSCREW, 7/16NC x 2

$

$

Not available

6

Simplicity 0921347-1

WASHER, Plain, 15/32 x 1 x 14 Ga.

$

$

Not available

6

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

6

Simplicity 0918213-0

NUT, 7/16NC

$

$

Not available

7

Simplicity 2109018-8

CHAIN, Lift

$

$

Not available
