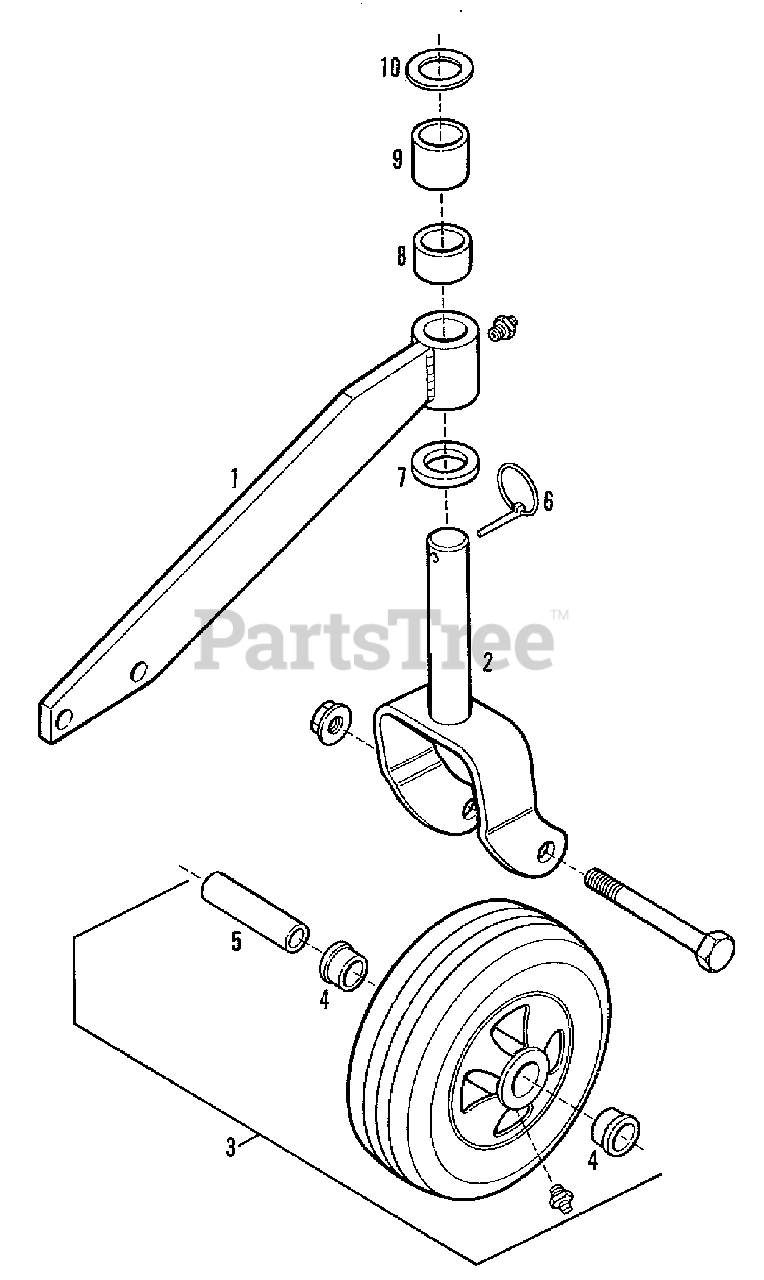

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Rear Wheel - L.H. & R.H. Eff. S/N 2100 & Up Group (3482I75) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Rear Wheel - L.H. & R.H. Eff. S/N 2100 & Up Group (3482I75) Parts Diagram

  • Title

1

Simplicity 2108640-0

ARM ASSEMBLY

$

$

Not available

1

Simplicity 9002040-5

FITTING, Lube, 1/4 Straight

$

$

Not available

1

Simplicity 0919089-3

CAPSCREW, 1/2NC x 1-3/4

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

2

Simplicity 2108641-8

FORK ASSEMBLY, Wheel

$

$

Not available

2

Simplicity 0920272-2

CAPSCREW, 1/2NC x 5

$

$

Not available

2

Simplicity 0935954-8

NUT, Lock, Flange, 1/2NC

$

$

Not available

3

Simplicity 2108642-6

WHEEL & TIRE ASSEMBLY (Pastic Rim)

$

$

Not available

3

Simplicity 2108649-1

WHEEL & TIRE ASSEMBLY (Steel Rim)

$

$

Not available

3

Simplicity 0914465-0

FITTING, Lube, 1/8 Straight

$

$

Not available

4

Simplicity 2108643-4

BEARING, Wheel Assembly, Iron (Use w/Plastic Rim Wheel)

$

$

Not available

4

Simplicity 2108650-9

BEARING, Wheel Assembly, Iron (Use w/Steel rim Wheel)

$

$

Not available

5

Simplicity 2108644-2

SLEEVE, Wheel Assembly (1/2" x 3/4" 3-3/8")

$

$

Not available

6

Simplicity 0239854-3

PIN, Quick

$

$

Not available

7

Simplicity 2108645-9

SPACER, Lower (1 x 1-5/16" x 1/2")

$

$

Not available

8

Simplicity 2108646-7

SPACER, Upper (1 x 1-5/16" x 1")

$

$

Not available

9

Simplicity 2108647-5

SPACER, Upper (1 x 1-5/16" x 1-1/2")

$

$

Not available

10

Simplicity 0919393-9

WASHER, Plain, 1-1/64" x 1-5/8" x 12 Ga.

$

$

Not available
