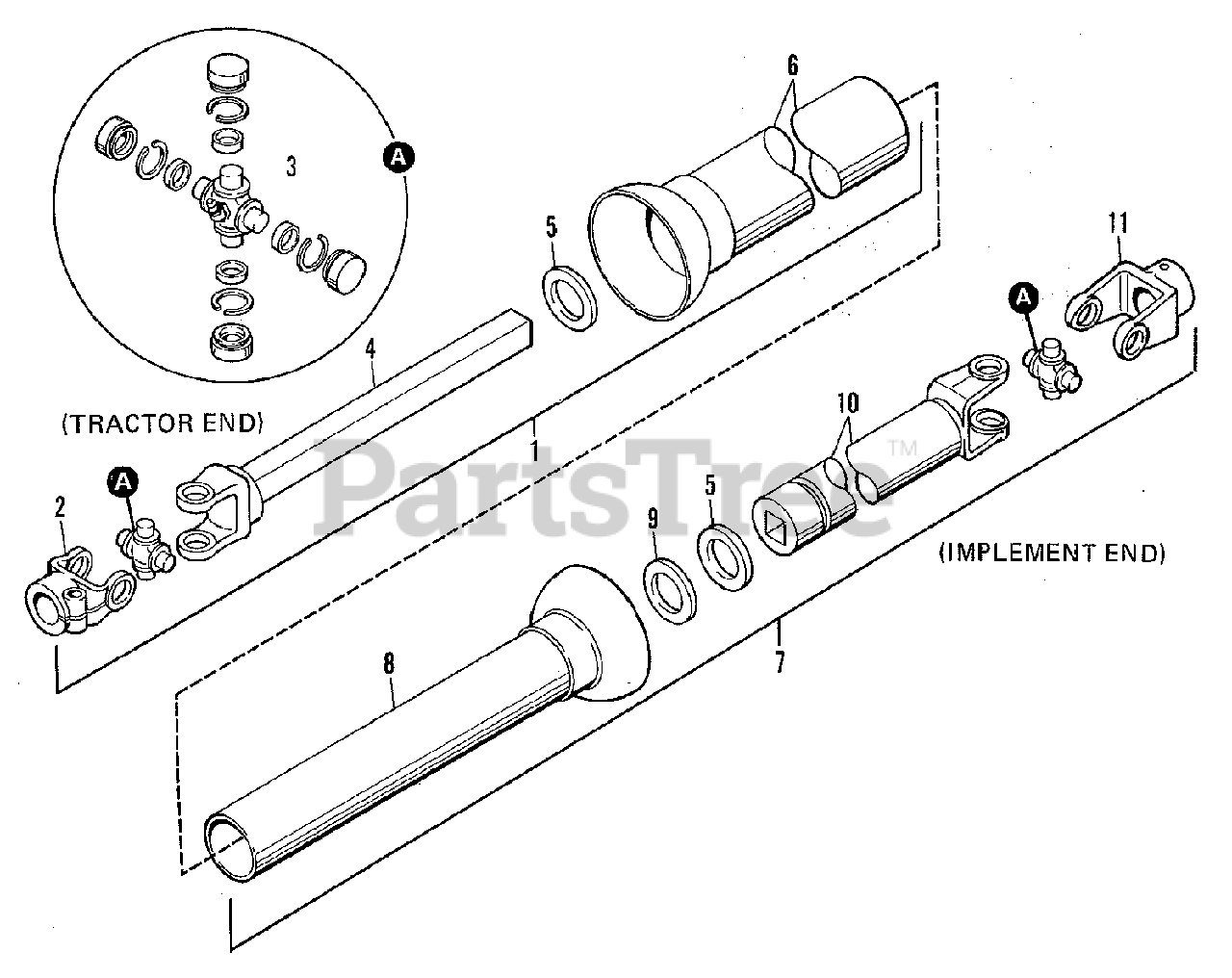

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type PTO Shafts & Joints Prior to S/N 2100 Group (3482I76) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

PTO Shafts & Joints Prior to S/N 2100 Group (3482I76) Parts Diagram

  • Title

1

Simplicity 2108551-9

PTO ASSEMBLY, Tractor End

$

$

Not available

2

Simplicity 2108553-5

YOKE, Tractor End

$

$

Not available

3

Simplicity 1174981-9

U-JOINT KIT

$

$

Not available

3

Simplicity 9002035-5

FITTING, Lube, Special Short, 1/4 x 65 Degrees

$

$

Not available

4

Simplicity 2108554-3

SHAFT & YOKE ASSEMBLY

$

$

Not available

5

Simplicity 2108555-0

SHIELD KIT

$

$

Not available

6

Simplicity 2108556-8

SHIELD, Outer

$

$

Not available

7

Simplicity 2108552-7

PTO ASSEMBLY, Implement End

$

$

Not available

8

Simplicity 2108557-6

SHIELD, Inner

$

$

Not available

9

Simplicity 2108558-4

BEARING, Nylon

$

$

Not available

10

Simplicity 2108559-2

TUBE & YOKE ASSEMBLY

$

$

Not available

11

Simplicity 2108560-0

YOKE, Implement End (Type l)

$

$

Not available

11

Simplicity 2108609-5

YOKE, Implement End (Type ll)

$

$

Not available

11

Simplicity 0912269-8

CAPSCREW, Socket Head, 3/8NC x 2, Gr. 8

$

$

Not available
