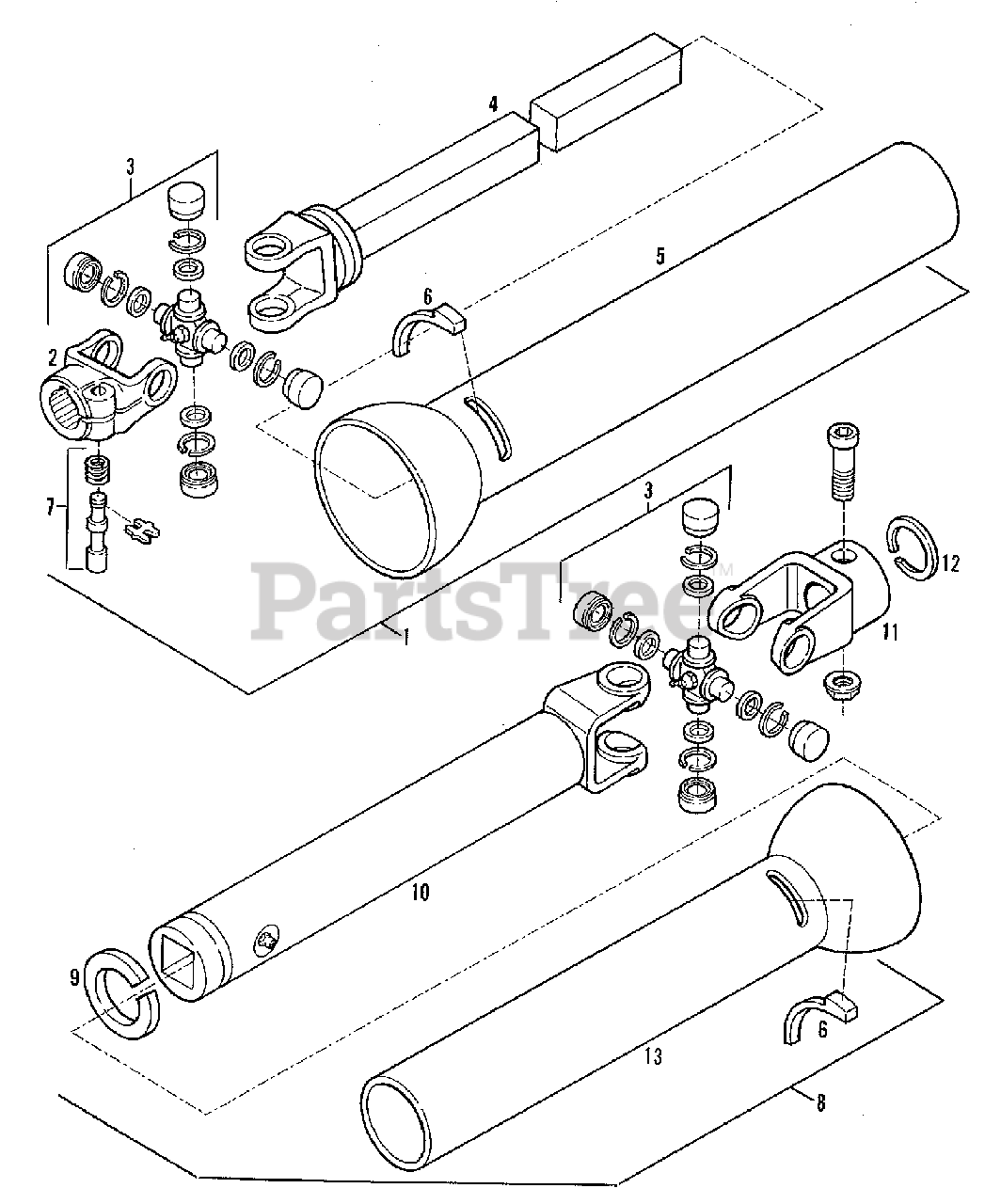

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type PTO Shafts & Joints Eff. S/N 2100 & Up Group (3482I77) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

PTO Shafts & Joints Eff. S/N 2100 & Up Group (3482I77) Parts Diagram

  • Title

1

Simplicity 2108626-9

PTO ASSEMBLY, Tractor End

$

$

Not available

2

Simplicity 2108553-5

YOKE, Tractor End

$

$

Not available

3

Simplicity 2069946-8

U-JOINT KIT

$

$

Not available

4

Simplicity 2108627-7

SHAFT & YOKE ASSEMBLY

$

$

Not available

5

Simplicity 2108628-5

SHIELD, Outer

$

$

Not available

6

Simplicity 2108629-3

BEARING, Shield

$

$

Not available

7

Simplicity 2108630-1

SPRING, Lock, Pin & x-Washer

$

$

Not available

8

Simplicity 2108631-9

PTO ASSEMBLY, Implement End

$

$

Not available

9

Simplicity 2108632-7

BEARING, Nylon

$

$

Not available

10

Simplicity 2108633-5

TUBE & YOKE ASSEMBLY

$

$

Not available

11

Simplicity 2108609-5

YOKE, Gearbox

$

$

Not available

11

Simplicity 0912269-8

CAPSCREW, Hex Socket Head, 3/8NC x 2

$

$

Not available

11

Simplicity 0928352-4

NUT, Lock, Flange, 3/8NC

$

$

Not available

12

Simplicity 2069908-8

RING, Retaining

$

$

Not available

13

Simplicity 2108634-3

SHIELD, Inner

$

$

Not available
