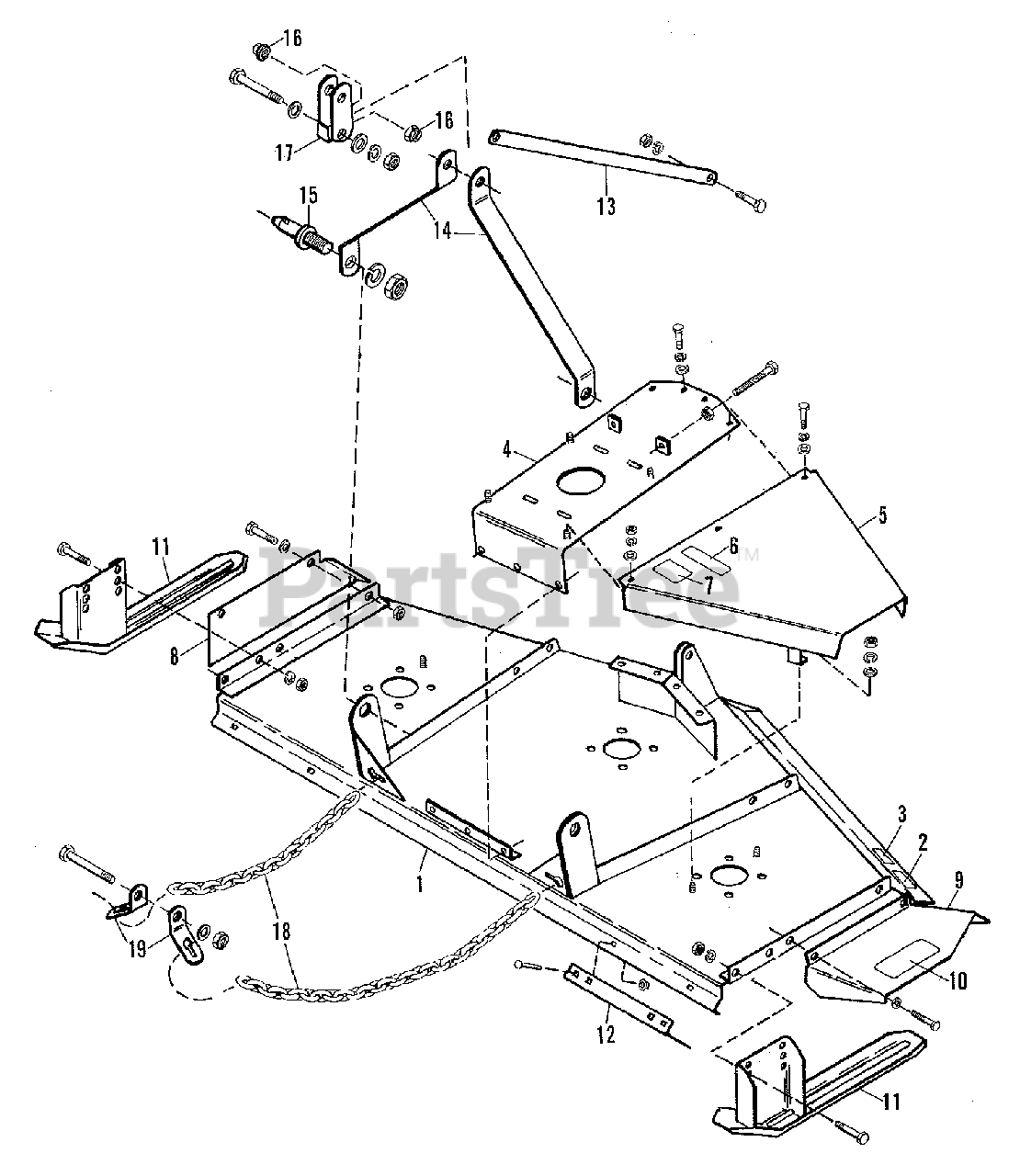

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Deck & Hitch Prior to S/N 2100 Group (3482I72) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Deck & Hitch Prior to S/N 2100 Group (3482I72) Parts Diagram

  • Title

1

Simplicity 2108503-0

PLATFORM ASSEMBLY

$

$

Not available

2

Simplicity 0579149-6

DECAL (Allis-Chalmers)

$

$

Not available

3

Simplicity 0595795-6

DECAL (Model No. 63)

$

$

Not available

4

Simplicity 2108514-7

PLATE, Mounting

$

$

Not available

4

Simplicity 0933685-0

CAPSCREW, 3/8NC x 2-1/2, Full Thread

$

$

Not available

4

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

4

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

4

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 5/64

$

$

Not available

5

Simplicity 2108516-2

SHIELD, Belt

$

$

Not available

5

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

5

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

5

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 5/64

$

$

Not available

6

Simplicity 2108561-8

DECAL (Be Careful)

$

$

Not available

7

Simplicity 2108562-6

DECAL, Danger (Do Not Operate In Transport Position)

$

$

Not available

8

Simplicity 2108523-8

SHIELD, End, R.H.

$

$

Not available

8

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

8

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 5/64

$

$

Not available

8

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

9

Simplicity 2108522-0

SHIELD, Discharge, L.H.

$

$

Not available

9

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

9

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 5/64

$

$

Not available

9

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

10

Simplicity 2108563-4

DECAL, Danger (Discharge Shield)

$

$

Not available

11

Simplicity 2108520-4

RUNNER, R.H.

$

$

Not available

11

Simplicity 2108521-2

RUNNER, L.H.

$

$

Not available

11

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

11

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

11

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

12

Simplicity 2108539-4

GUARD, Toe

$

$

Not available

12

Simplicity 0931350-3

BOLT, Carriage, 3/8NC x 1

$

$

Not available

12

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

13

Simplicity 2108526-1

LINK

$

$

Not available

13

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

13

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

13

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

14

Simplicity 2108527-9

BAR, Mast

$

$

Not available

15

Simplicity 0334357-1

PIN, Hitch

$

$

Not available

15

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

15

Simplicity 0920747-3

NUT, 7/8NF

$

$

Not available

16

Simplicity 2108524-6

BUSHING

$

$

Not available

17

Simplicity 2108525-3

LINK

$

$

Not available

17

Simplicity 0920990-9

CAPSCREW, 1/2NC x 3-1/2

$

$

Not available

17

Simplicity 0918431-8

WASHER, Plain, 9/16 x 1-3/8 x 12 Ga.

$

$

Not available

17

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

17

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

18

Simplicity 2108528-7

CHAIN, Limit

$

$

Not available

18

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

18

Simplicity 0919384-8

WASHER, Plain, 7/16 x 1-1/4 x 11 Ga.

$

$

Not available

18

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

18

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

19

Simplicity 2108529-5

LUG, Chain

$

$

Not available

19

Simplicity 0925387-3

CAPSCREW, 3/4NC x 4

$

$

Not available

19

Simplicity 0919332-7

LOCKWASHER, 3/4

$

$

Not available

19

Simplicity 0913160-8

NUT, 3/4NC

$

$

Not available
