21073 - Toro Guardian Walk-Behind Mower (SN: 003000001 - 003999999) (1973) HOUSING ASSEMBLY MODEL 21273 Parts Diagram

Guardian Walk-Behind Mower

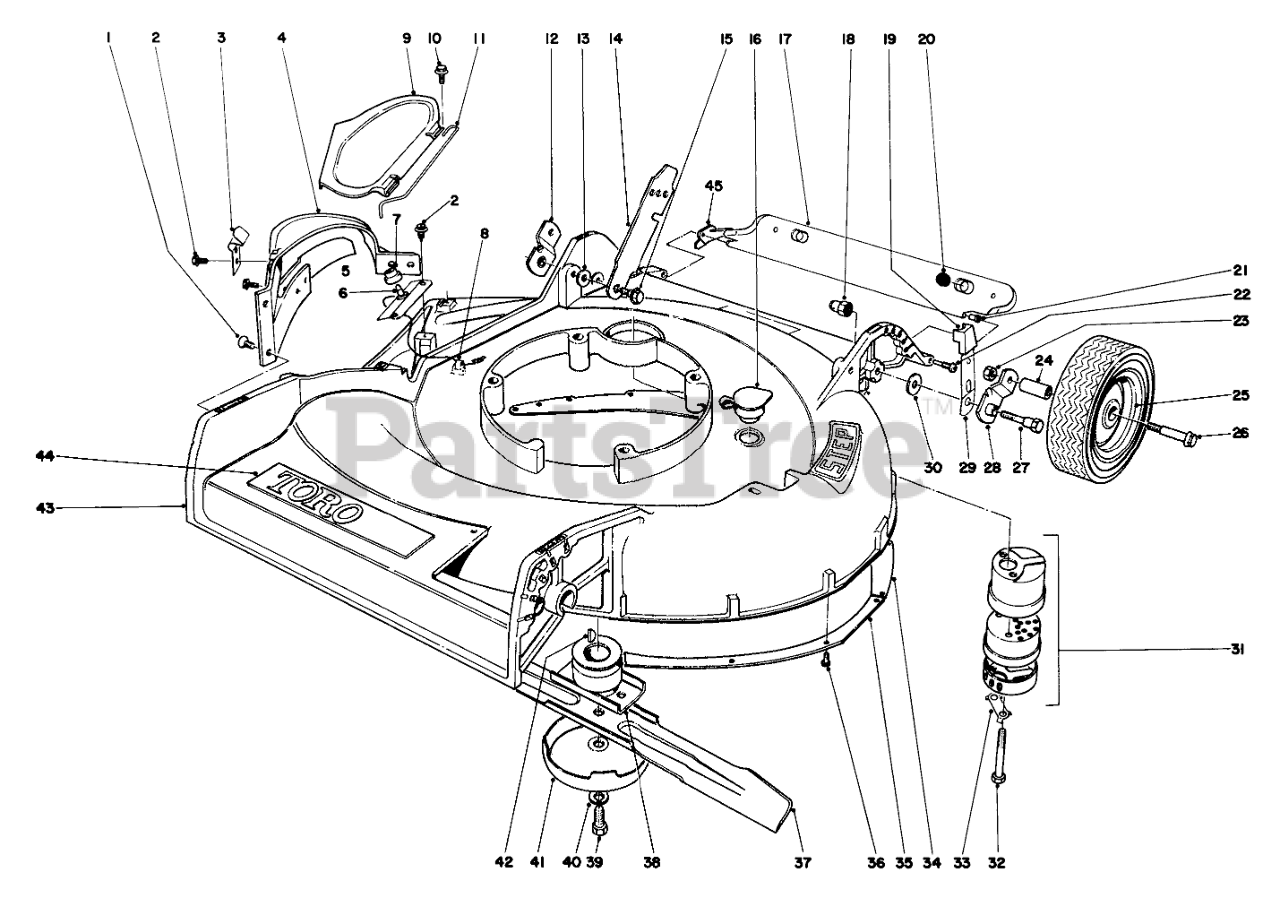

HOUSING ASSEMBLY MODEL 21273 Parts Diagram

  • Title

1

Toro 11-3010

Screw

$

$

Not available

2

Toro 32140-91

Screw

$

$

Currently unavailable

3

Toro 12-1170

Latch

$

$

Not available

4

Toro 12-1160

Deflector (Incl. Ref. Nos. 2, 3 & 5)

$

$

Currently unavailable

5

Toro 10-8960

DefIector Bar

$

$

Currently unavailable

6

Toro 12-4940

Deflector Switch & Wire (Incl. Ref. No. 7)

$

$

Not available

7

Toro 12-4930

Boot Switch

$

$

Not available

8

Toro 2412-9

Clip

$

$

Currently unavailable

9

Toro 17-1690

Deflector Cover

$

$

Currently unavailable

10

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

11

Toro 17-4820

Hinge Spring

$

$

Currently unavailable

12

Toro 8-4260

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

14

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

15

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

16

Toro 6-4500

WASHOUT PLUG

$

$

Not available

17

Toro 19-5780

Safety Shield (Incl. Ref. Nos. 20 & 21)
(Superseded to 28-3780)

$

$

Not available

18

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

19

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 8

0

20

Toro 5-6450

SKID BUTTON

$

$

Not available

21

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

22

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

23

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

24

Toro 17-4560

Bushing
(Superseded to 27-6250)

$2.99

$

In Stock, Qty 15

0

25

Toro 17-4120

Wheel & Tire Assy. (8") (Incl. Ref. No. 24)
(Superseded to 99-5256)

$

$

Not available

26

Toro 3-2652

Bolt

$

$

Not available

27

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

28

Toro 8-4280

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

29

Toro 8-3840

Spring Arm
(Superseded to 23-0400)

$

$

Not available

30

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

31

Toro 5-4769

Muffler (Incl. Ref. Nos. 32 & 33)

$54.99

$

Usually ships in 3-6 days

0

32

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

33

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

34

Toro 8-5550

Main Skirt

$

$

Currently unavailable

35

Toro 8-5570

Secondary Skirt

$

$

Currently unavailable

36

Toro 32144-12

Screw

$

$

Not available

37

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$33.99

$

Usually ships in 3-6 days

0

38

Toro 8-5370

BLADE RETAINER WA

$95.99

$

Usually ships in 3-6 days

0

39

Toro 3-5246

SPECIAL SCREW

$

$

Not available

40

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

41

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

Usually ships in 3-6 days

0

42

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

43

Toro 5-7929

Housing (Incl. Ref. Nos. 34, 35 & 36)

$

$

Currently unavailable

44

Toro 17-4590

Toro Emblem

$

$

Currently unavailable

45

Toro 19-5680

Restraint R.H.

$

$

Not available

Toro 19-5740

Restraint L.H.

Note: Not illustrated

$

$

Not available
