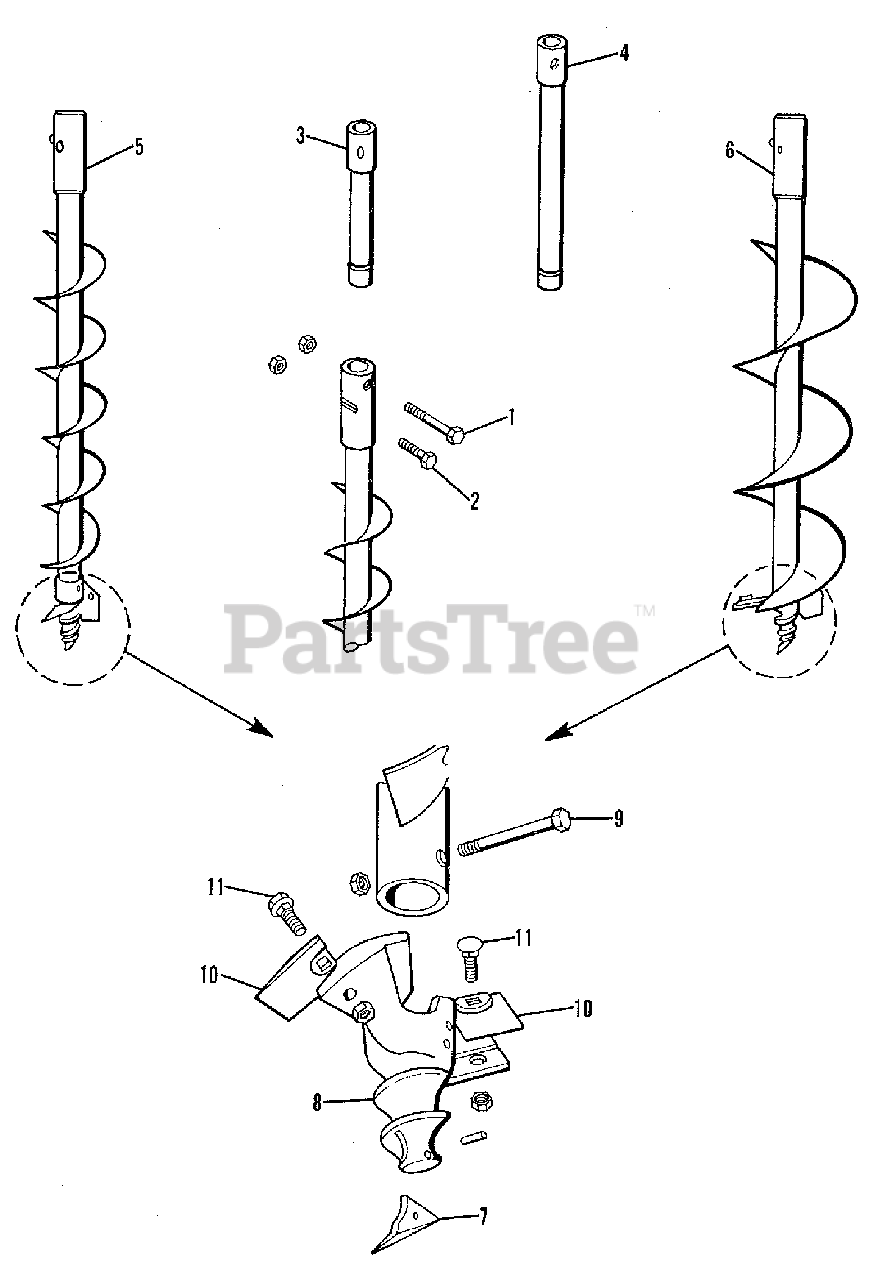

2107025 - Simplicity Model 60 Post Hole Augers Group (3482I19) Parts Diagram

Model 60 Post Hole

Augers Group (3482I19) Parts Diagram

  • Title

1

Simplicity 2107096-6

BOLT, Shear

$

$

Not available

1

Simplicity 0924058-1

NUT, Lock, 7/16NC

$

$

Not available

2

Simplicity 2107097-4

BOLT, Retaining

$

$

Not available

2

Simplicity 0923428-7

NUT, Lock, 3/8NC

$

$

Not available

3

Simplicity 2107098-2

EXTENSION (8" Long)

$

$

Not available

4

Simplicity 2107099-0

EXTENSION (14" Long)

$

$

Not available

5

Simplicity 2107100-6

AUGER ASSEMBLY, Complete (6")

$

$

Not available

5

Simplicity 2107270-7

AUGER ASSEMBLY, Complete (9")

$

$

Not available

6

Simplicity 2107101-4

AUGER ASSEMBLY, Complete (12")

$

$

Not available

7

Simplicity 2107102-2

POINT, Cutter Head

$

$

Not available

8

Simplicity 2107103-0

HEAD, Cutter (For 6" Auger)

$

$

Not available

8

Simplicity 2107271-5

HEAD, Cutter (For 9" Auger)

$

$

Not available

8

Simplicity 2107126-1

HEAD, Cutter (For 12" Auger)

$

$

Not available

9

Simplicity 2107106-3

BOLT, Cutter Head & Auger

$

$

Not available

9

Simplicity 0923428-7

NUT, Lock, 3/8NC

$

$

Not available

10

Simplicity 2107104-8

BLADE, Cutting

$

$

Not available

11

Simplicity 2107105-5

BOLT, Blade & Cutter Head

$

$

Not available

11

Simplicity 0922134-2

NUT, Lock, 1/2NC

$

$

Not available
