2107013 - Simplicity Model 44 Disk Harrow Seal Bearing Type Group (3482I24) Parts Diagram

Model 44 Disk Harrow

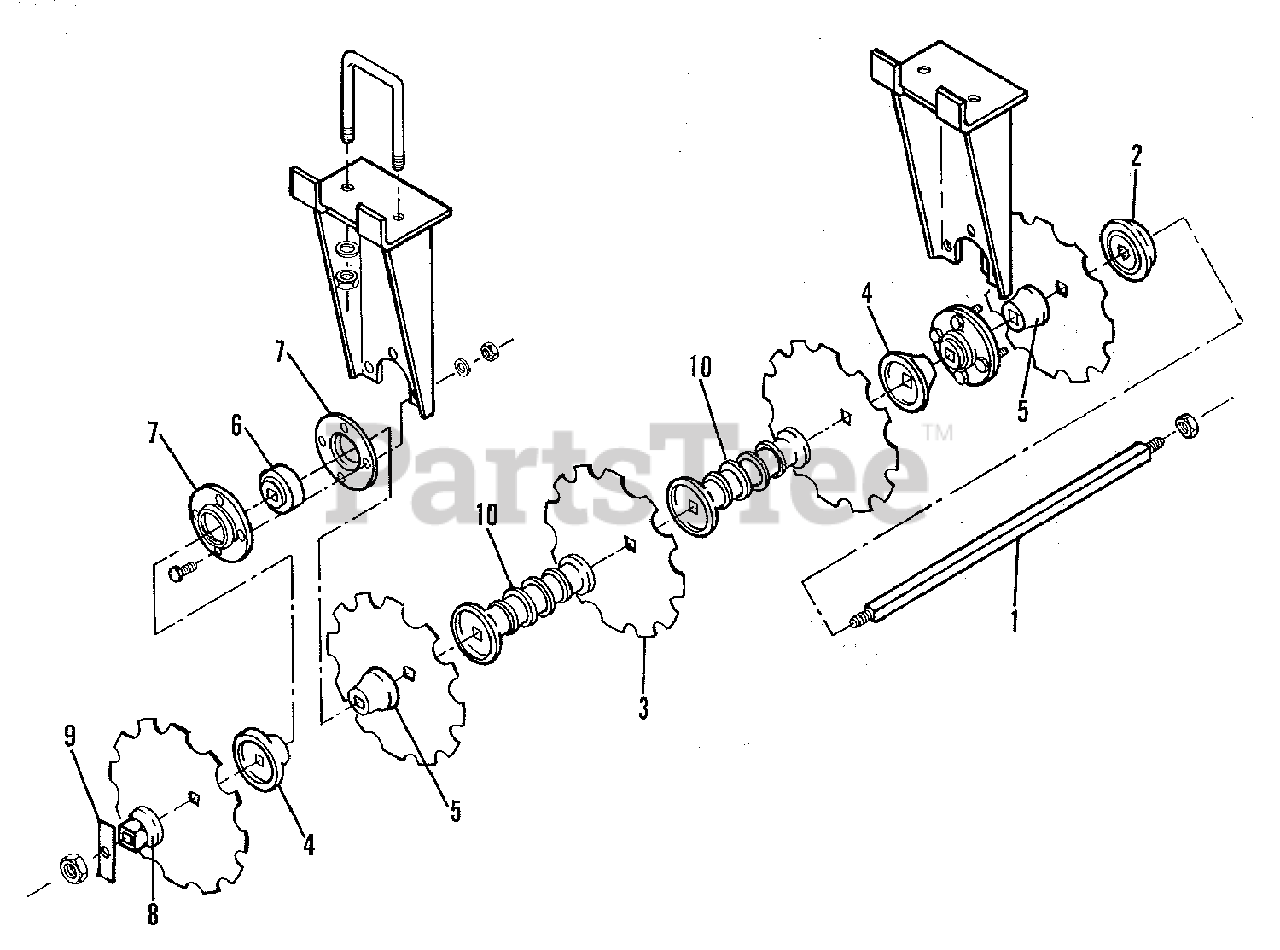

Seal Bearing Type Group (3482I24) Parts Diagram

  • Title
1

Simplicity 2107183-2

AXLE, Gang, 33-1/2" Long (For 5 Blades)

$

$

Not available

1

Simplicity 2107151-9

AXLE, Gang, 26" Long (For 4 Blades)

$

$

Not available

2

Simplicity 2107150-1

WASHER, Bumper

$

$

Not available

3

Simplicity 2107147-7

BLADE, Notched (18" Diameter)

$

$

Not available

3

Simplicity 2107148-5

BLADE, Notched (20" Diameter)

$

$

Not available

4

Simplicity 2107178-2

SPOOL, Bearing, Outer

$

$

Not available

5

Simplicity 2107179-0

SPOOL, Bearing, Inner

$

$

Not available

$

$

Not available

7

Simplicity 2107181-6

FLANGE, Bearing

$

$

Not available

7

Simplicity 0931364-4

BOLT, Carriage, 1/2NC x 1-1/4

$

$

Not available

7

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

7

$

$

Not available

8

Simplicity 2107146-9

WASHER, End

$

$

Not available

9

Simplicity 2107152-7

PLATE, Lock

$

$

Not available

10

Simplicity 2107182-4

SPOOL, Spacing

$

$

Not available
