2107010 - Simplicity Model 44 Disk Harrow Cast Bearing Type Group (3482I25) Parts Diagram

Model 44 Disk Harrow

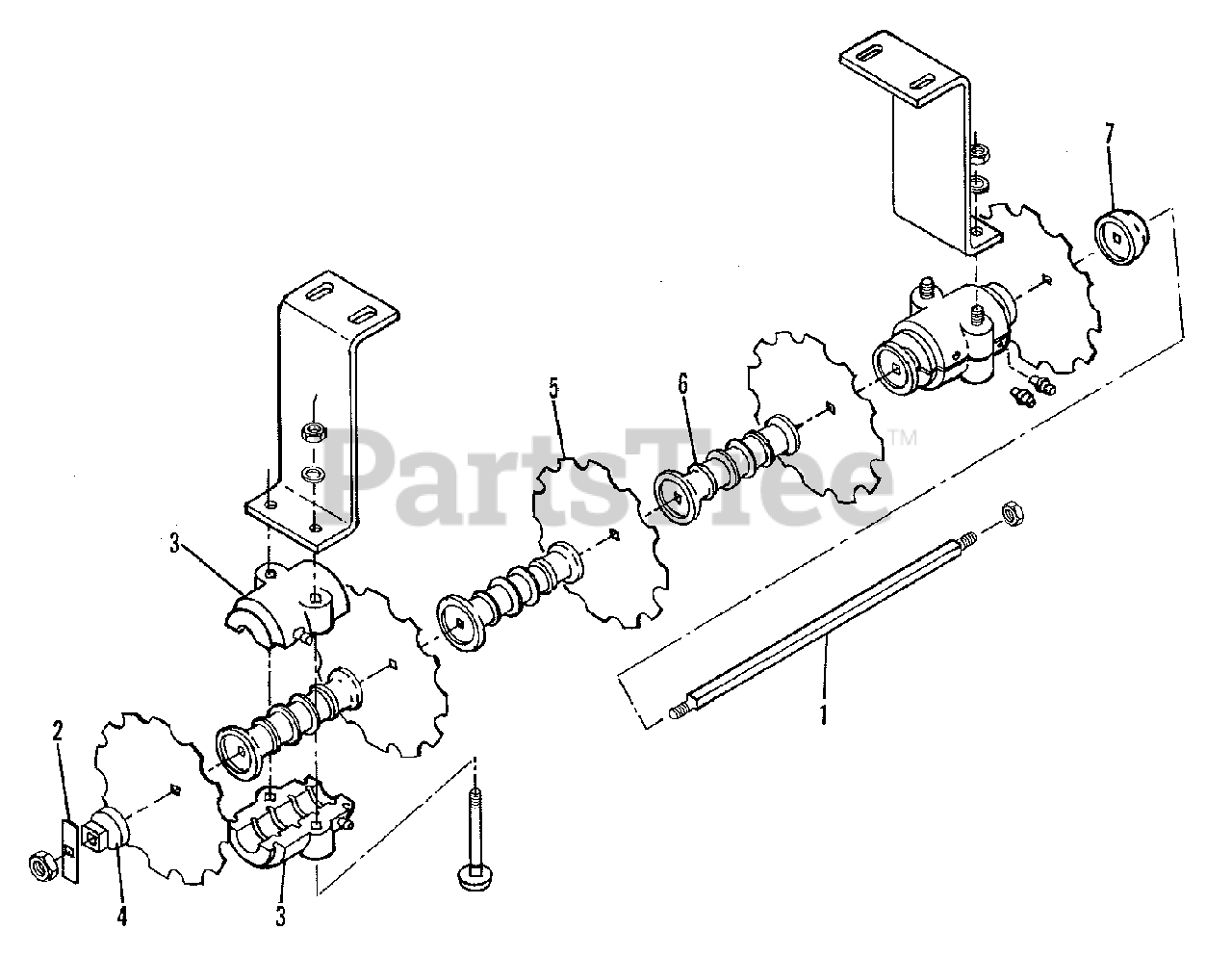

Cast Bearing Type Group (3482I25) Parts Diagram

  • Title
1

Simplicity 2107183-2

AXLE, Gang, 33-1/2" Long (For 5 Blades)

$

$

Not available

1

Simplicity 2107151-9

AXLE, Gang, 26" Long (For 4 Blades)

$

$

Not available

2

Simplicity 2107152-7

PLATE, Lock

$

$

Not available

3

Simplicity 2107153-5

CAP, Bearing, Upper & Lower

$

$

Not available

3

Simplicity 0929237-6

BOLT, Carriage, 1/2NC x 5

$

$

Not available

3

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

3

$

$

Not available

4

Simplicity 2107146-9

WASHER, End

$

$

Not available

4

Simplicity 2107147-7

BLADE, Notched (18" Diameter)

$

$

Not available

4

Simplicity 2107148-5

BLADE, Notched (16" Diameter)

$

$

Not available

6

Simplicity 2107149-3

SPOOL, Bearing & Spacer

$

$

Not available

7

Simplicity 2107150-1

WASHER, Bumper

$

$

Not available
