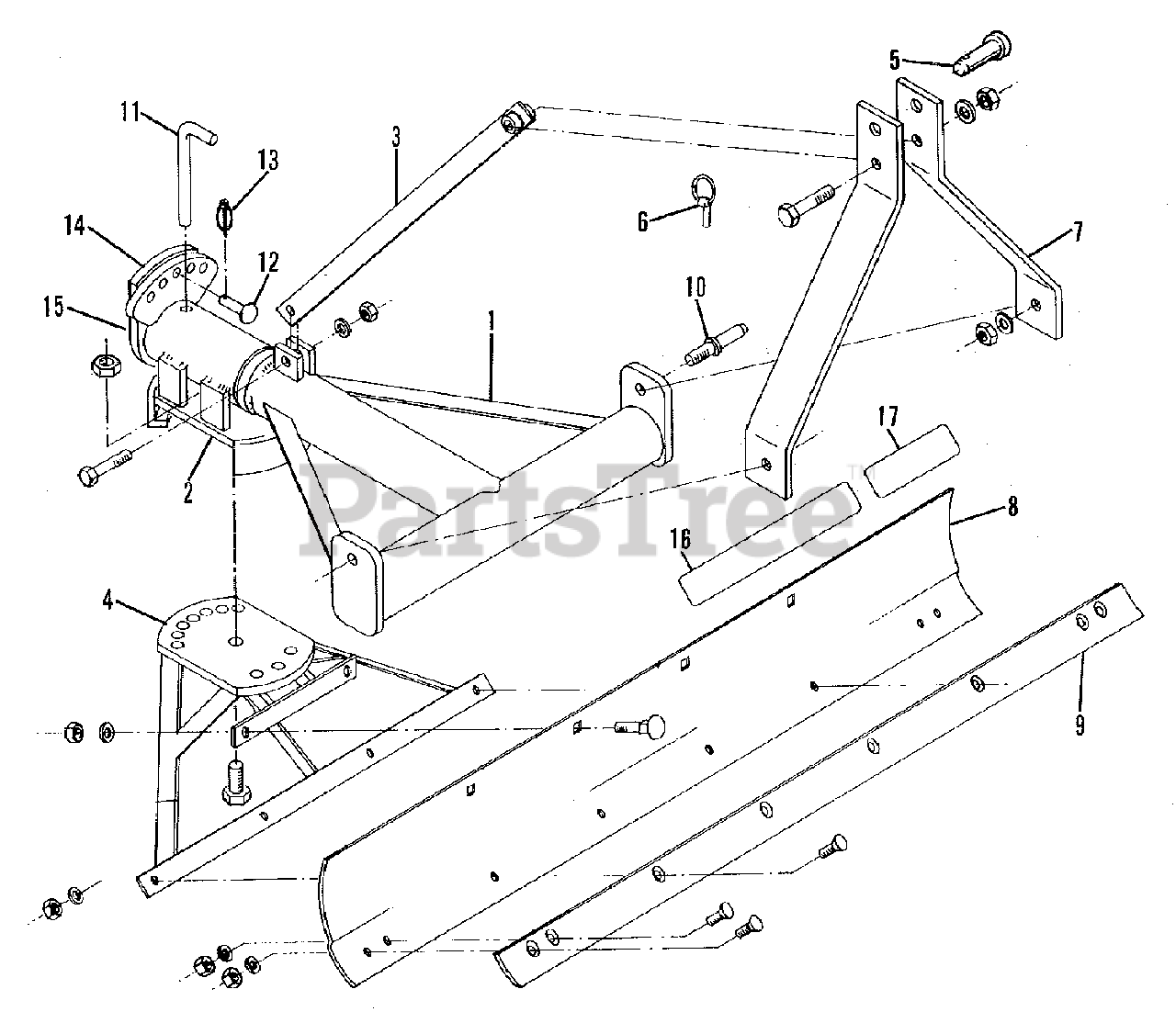

2107006 (46) - Simplicity 72" Heavy-Duty Grader Blade Frame & Moldboard Group (3482I02) Parts Diagram

72" Heavy-Duty Grader Blade

Frame & Moldboard Group (3482I02) Parts Diagram

  • Title

1

Simplicity 2107061-0

FRAME ASSEMBLY, Upper

$

$

Not available

2

Simplicity 2107062-8

FRAME ASSEMBLY, Swivel

$

$

Not available

3

Simplicity 2107063-6

BRACE ASSEMBLY

$

$

Not available

3

Simplicity 0925703-1

CAPSCREW, 5/8NC x 4

$

$

Not available

3

Simplicity 0923269-5

CAPSCREW, 5/8NC x 2-1/2

$

$

Not available

3

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

3

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

4

Simplicity 2107064-4

FRAME ASSEMBLY, Moldboard

$

$

Not available

4

Simplicity 0929506-4

CAPSCREW, 1"NC x 2-1/2

$

$

Not available

4

Simplicity 0926940-8

NUT, Lock, 1"NC x 2-1/2

$

$

Not available

5

Simplicity 2097978-7

PIN, Hitch, Upper

$

$

Not available

6

Simplicity 0244066-7

PIN, Quick

$

$

Not available

7

Simplicity 2107065-1

BAR, Tower

$

$

Not available

8

Simplicity 2107067-7

MOLDBOARD

$

$

Not available

8

Simplicity 0926972-1

BOLT, Carriage, 5/8NC x 1-3/4

$

$

Not available

8

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

8

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

9

Simplicity 2107068-5

BLADE, Cutting

$

$

Not available

9

Simplicity 0921712-6

BOLT, Plow, No. 3 Head, 5/8NC x 1-3/4

$

$

Not available

9

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

9

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

10

Simplicity 0334357-1

PIN, Link (Cat. 1)

$

$

Not available

10

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

10

Simplicity 0920747-3

NUT, 7/8NF

$

$

Not available

11

Simplicity 2107069-3

PIN, Angle

$

$

Not available

12

Simplicity 2107070-1

PIN, Tilt

$

$

Not available

13

Simplicity 2107071-9

PIN, Quick

$

$

Not available

14

Simplicity 2107066-9

BAR, Pivot (Welded)

$

$

Not available

15

Simplicity 2107055-2

COLLAR (Welded)

$

$

Not available

16

Simplicity 0579149-6

DECAL (Allis-Chalmers)

$

$

Not available

17

Simplicity 0593752-9

DECAL (46 Model Identification)

$

$

Not available
