2107005 (46) - Simplicity 72" Economy Blade Attachment Frame & Moldboard Group (3482I01) Parts Diagram

72" Economy Blade Attachment

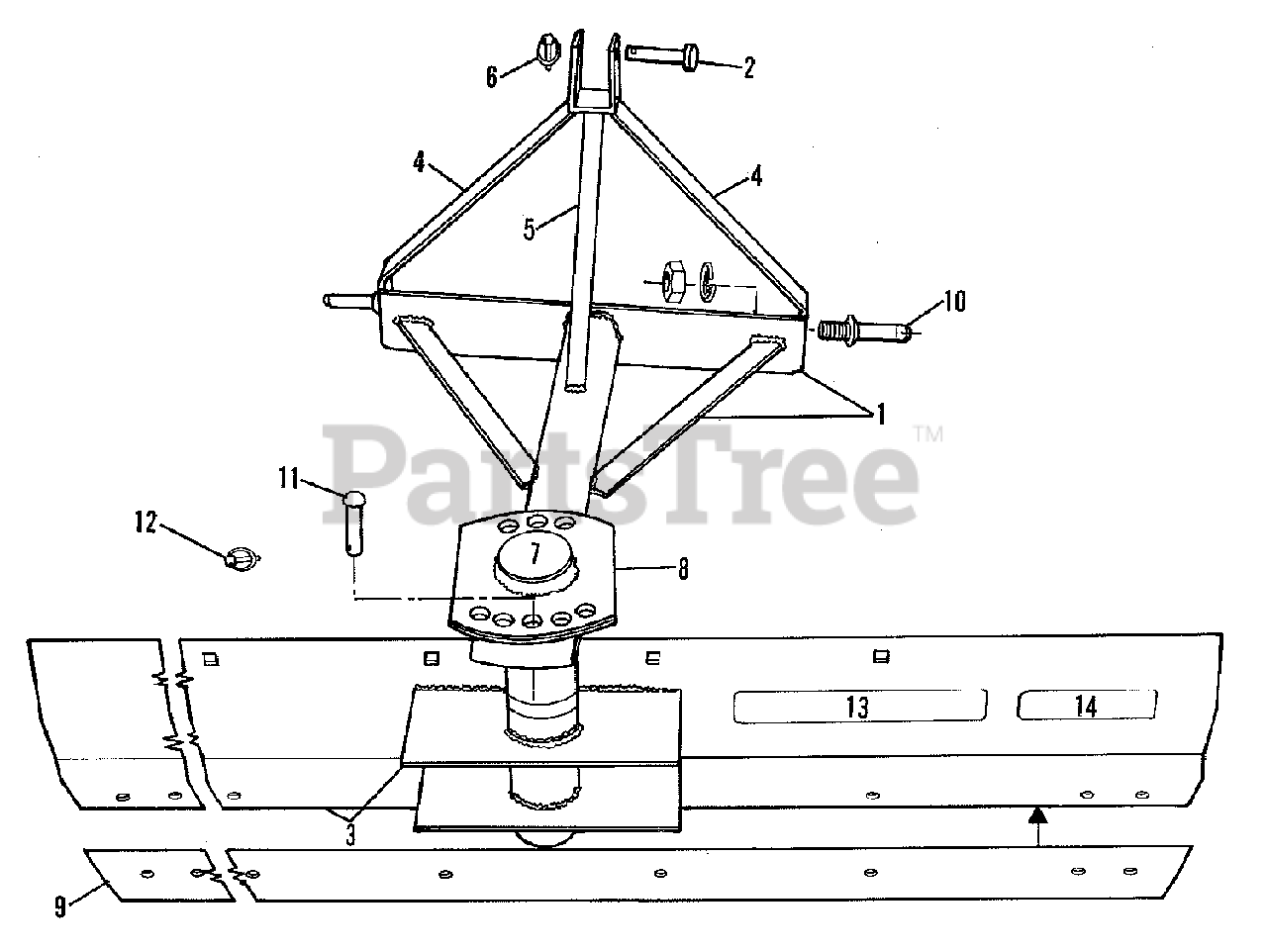

Frame & Moldboard Group (3482I01) Parts Diagram

  • Title

1

Simplicity 2107051-1

FRAME ASSEMBLY, Main

$

$

Not available

2

Simplicity 2097978-7

PIN, Hitch, Upper

$

$

Not available

3

Simplicity 2107052-9

FRAME ASSEMBLY, Moldboard

$

$

Not available

4

Simplicity 2107053-7

BAR, Tower

$

$

Not available

5

Simplicity 2107054-5

BRACE, Frame

$

$

Not available

5

Simplicity 0925703-1

CAPSCREW, 5/8NC x 4

$

$

Not available

5

Simplicity 0923269-5

CAPSCREW, 5/8NC x 2-1/2

$

$

Not available

5

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

5

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

6

Simplicity 0244066-7

PIN, Quick

$

$

Not available

7

Simplicity 2107055-2

COLLAR

$

$

Not available

8

Simplicity 2107056-0

BAR, Pivot

$

$

Not available

9

Simplicity 2107057-8

BLADE, Cutting

$

$

Not available

9

Simplicity 0921712-6

BOLT, Plow, No. 3 Head, 5/8NC x 1-3/4

$

$

Not available

9

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

9

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

10

Simplicity 0334357-1

PIN, Link (Cat. 1)

$

$

Not available

10

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

10

Simplicity 0920747-3

NUT, 7/8 NF

$

$

Not available

11

Simplicity 2107058-6

PIN, Adjusting

$

$

Not available

12

Simplicity 2107059-4

PIN, Quick

$

$

Not available

13

Simplicity 0579149-6

DECAL (Allis-Chalmers)

$

$

Not available

14

Simplicity 0593752-9

DECAL (46 Model Identification)

$

$

Not available
