2107004 (62) - Simplicity 60" Rotary Mower Attachment Rear Wheel Group (3482I67) Parts Diagram

60" Rotary Mower Attachment

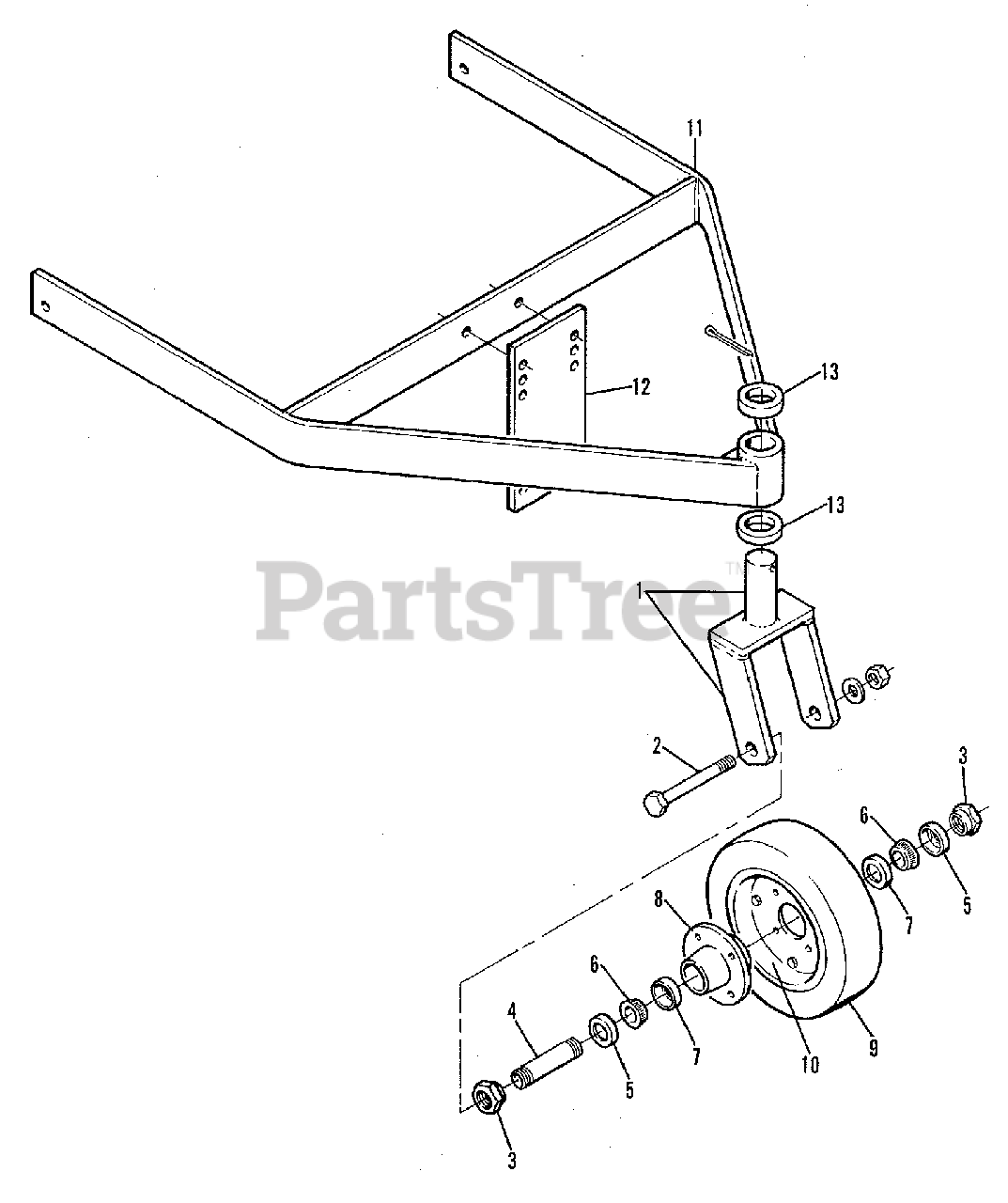

Rear Wheel Group (3482I67) Parts Diagram

  • Title

-

Simplicity 2107192-3

WHEEL & YOKE ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2107210-3

YOKE ASSEMBLY

$

$

Not available

1

Simplicity 0929957-9

PIN, Cotter, 3/8 x 3

$

$

Not available

2

Simplicity 2107201-2

BOLT ASSEMBLY, Axle

$

$

Not available

3

Simplicity 2107202-0

NUT, Shoulder

$

$

Not available

4

Simplicity 2107203-8

SPACER, Axle Bolt

$

$

Not available

5

Simplicity 2107204-6

SEAL, Hub

$

$

Not available

6

Simplicity 2107205-3

CONE, Bearing

$

$

Not available

7

Simplicity 2107206-1

CUP, Bearing

$

$

Not available

8

Simplicity 2107207-9

HUB, Wheel

$

$

Not available

8

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

8

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

8

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

9

Simplicity 2107208-7

TIRE

$

$

Not available

10

Simplicity 2107209-5

DISK, Wheel

$

$

Not available

11

Simplicity 2107190-7

FRAME ASSEMBLY, Wheel

$

$

Not available

11

Simplicity 0922664-8

CAPSCREW, 5/8NC x 2

$

$

Not available

11

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

11

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

12

Simplicity 2107191-5

BRACKET, Adjusting

$

$

Not available

12

Simplicity 0922664-8

CAPSCREW, 5/8NC x 2

$

$

Not available

12

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

12

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

13

Simplicity 2107195-6

WASHER, Yoke Assembly

$

$

Not available
