2107004 (62) - Simplicity 60" Rotary Mower Attachment Deck & Hitch Group (3482I65) Parts Diagram

60" Rotary Mower Attachment

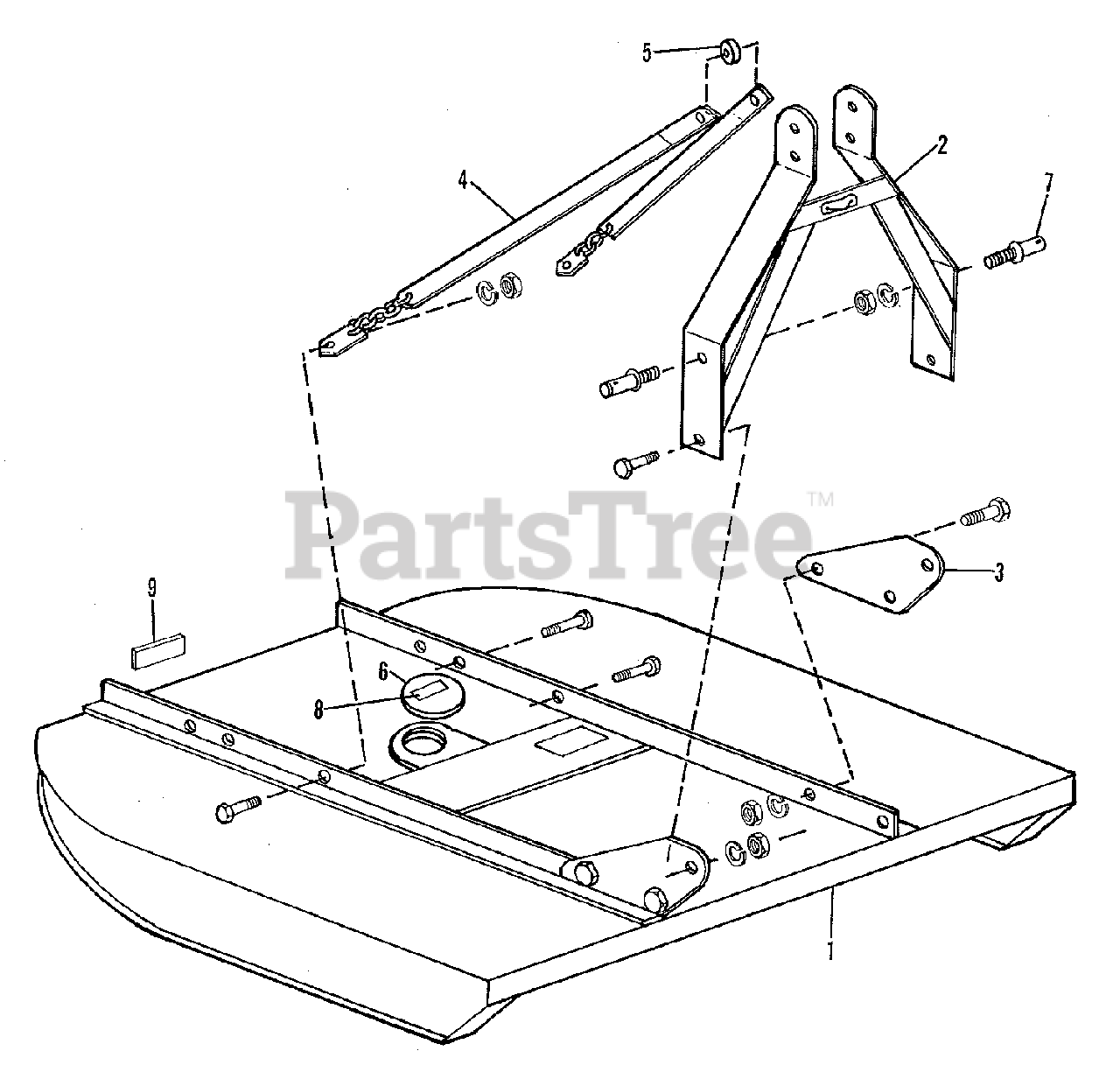

Deck & Hitch Group (3482I65) Parts Diagram

  • Title

1

Simplicity 2107184-0

DECK ASSEMBLY

$

$

Not available

2

Simplicity 2107185-7

FRAME ASSEMBLY, Hitch

$

$

Not available

3

Simplicity 2107186-5

CLEAT, Attaching

$

$

Not available

3

Simplicity 0922664-8

CAPSCREW, 5/8NC x 2

$

$

Not available

3

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

3

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

4

Simplicity 2107187-3

ARM ASSEMBL

$

$

Not available

4

Simplicity 0922664-8

CAPSCREW, 5/8NC x 2

$

$

Not available

4

Simplicity 0925703-1

CAPSCREW, 5/8NC x 4

$

$

Not available

4

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

4

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

5

Simplicity 2107145-1

SPACER, Arm

$

$

Not available

6

Simplicity 2107194-9

PLATE, Access

$

$

Not available

6

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

6

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

6

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

7

Simplicity 0334357-1

PIN, Link (Cat. l)

$

$

Not available

7

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

7

Simplicity 0920747-3

NUT, 7/8NF

$

$

Not available

8

Simplicity 0594149-7

DECAL, Warning (Cover Position)

$

$

Not available

9

Simplicity 0594152-1

DECAL, Warning (Power, Movement & Clearance)

$

$

Not available
