21070 - Toro 40cm Electric Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) BAG AND RECYCLING ASSEMBLY Parts Diagram

40cm Electric Recycler Walk-Behind Mower

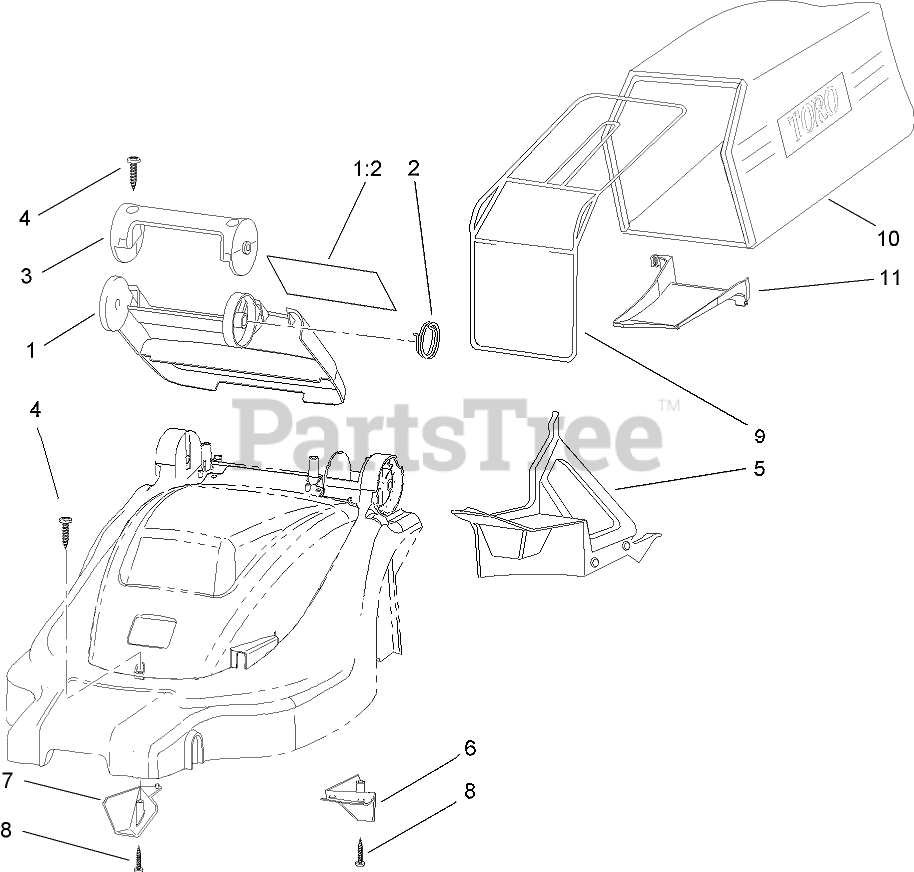

BAG AND RECYCLING ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6711

DOOR AND DECAL ASM

$

$

Not available

1:2

Toro 95-6572

Decal-Safety

$4.49

$

Usually ships in 3-6 days

0

2

Toro 95-6796

SPRING-REAR, DOOR

$

$

Not available

3

Toro 95-6513

HANDLE

$

$

Not available

4

Toro 95-6698

SCREW

$

$

Not available

5

Toro 95-6579

Plug-Recycler

$

$

Not available

6

Toro 95-6575

KICKER-MIDDLE

$

$

Not available

7

Toro 95-6861

KICKER-FRONT

$

$

Not available

8

Toro 95-6560

SCREW-BUTTON HEAD, TORX

$

$

Not available

9

Toro 95-6552

FRAME-BAG

$

$

Not available

10

$

$

Not available

11

Toro 95-6554

Ramp-Bag

$

$

Not available

99

Toro 95-6770

BUSHING-REAR, DOOR

Note: Not illustrated

$

$

Not available
