21070 - Toro 40cm Electric Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HANDLE ASSEMBLY Parts Diagram

40cm Electric Recycler Walk-Behind Mower

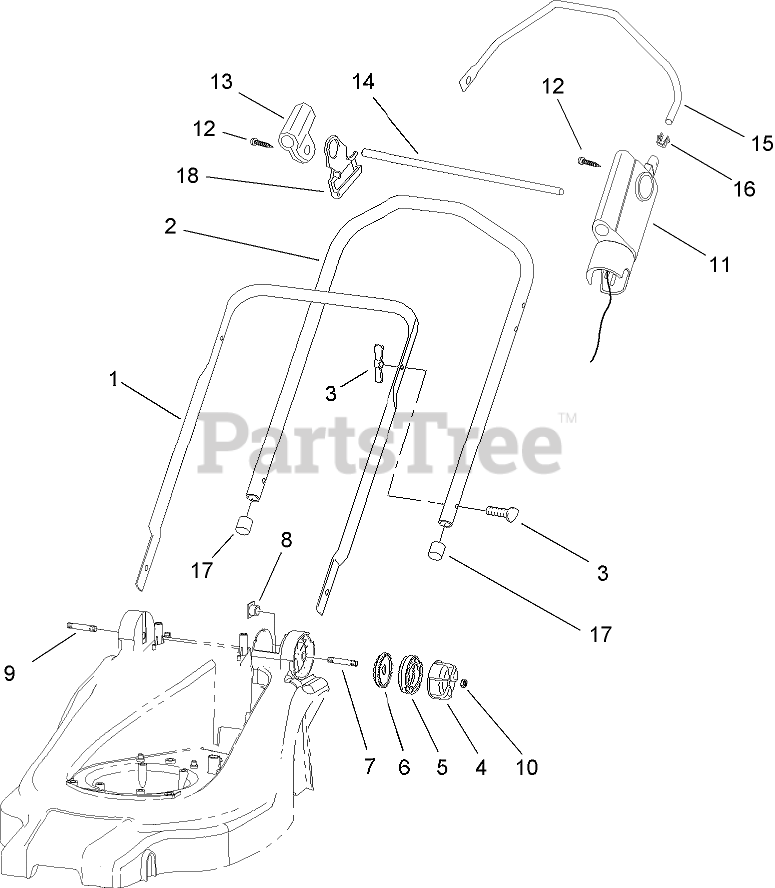

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6886

Handle-Lower

$

$

Not available

2

Toro 95-6516

Handle-Upper

$

$

Not available

3

Toro 95-6718

BOLT AND SCREW SET

$

$

Not available

4

Toro 95-6713

KNOB-ADJUSTING

$

$

Not available

5

Toro 95-6885

ADJUSTING-DISC

$

$

Not available

6

Toro 95-6568

DISC-HOLDING

$

$

Not available

7

Toro 95-6694

STUD-LH

$

$

Not available

8

$

$

Not available

9

Toro 95-6777

STUD-RH

$

$

Not available

10

$

$

Not available

11

Toro 95-6631

SWITCH ASM (SWISS) (only on: 21071)

$

$

Not available

11

Toro 95-6907

SWITCH ASM (GB) (only on: 21072)

$

$

Not available

11

Toro 95-6605

SWITCH ASM (only on: 21070)

$

$

Not available

12

Toro 95-6598

SCREW

$

$

Not available

13

Toro 95-6596

Mount-Bail

$

$

Not available

14

$

$

Not available

15

$

$

Not available

16

Toro 95-6602

Clamp-Bail

$

$

Not available

17

Toro 95-6810

Cap-Handle

$

$

Currently unavailable

18

Toro 95-6597

HOLDER-CABLE

$

$

Not available
