21070 - Toro 40cm Electric Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) MOTOR AND BLADE ASSEMBLY MODEL-NO. 21070,21071 Parts Diagram

40cm Electric Recycler Walk-Behind Mower

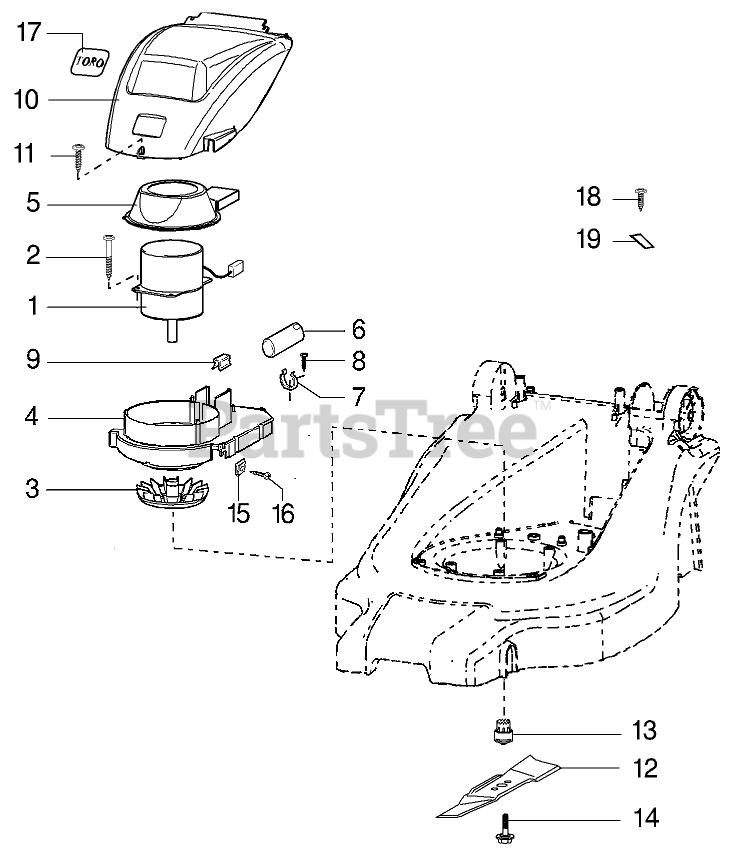

MOTOR AND BLADE ASSEMBLY MODEL-NO. 21070,21071 Parts Diagram

  • Title
1

Toro 95-6764

MOTOR

$

$

Not available

2

Toro 95-6663

SCREW

$

$

Not available

3

$

$

Not available

4

Toro 95-6754

ADAPTOR-MOTOR

$

$

Not available

5

Toro 95-6624

Baffle-Motor

$

$

Not available

6

Toro 95-6633

CAPACITOR

$

$

Not available

7

Toro 95-6584

Clip-Capacitor

$

$

Not available

8

Toro 95-6598

SCREW

$

$

Not available

9

Toro 95-6620

U-CLIP

$

$

Not available

10

Toro 95-6894

Shroud-Motor (incl. Ref.#17)

$

$

Not available

11

Toro 95-6698

SCREW

$

$

Not available

12

Toro 95-6583

BLADE

$

$

Not available

13

Toro 95-6767

RETAINER-BLADE

$

$

Not available

14

Toro 95-6743

SCREW-BLADE

$

$

Not available

15

Toro 95-6619

NUT-SNAP ON, SHROUD

$

$

Not available

16

Toro 95-6623

SCREW

$

$

Not available

17

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

18

Toro 95-6532

SCREW

$

$

Not available

19

Toro 95-6692

Release-Cable

$

$

Not available
