21070 - Toro 40cm Electric Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

40cm Electric Recycler Walk-Behind Mower

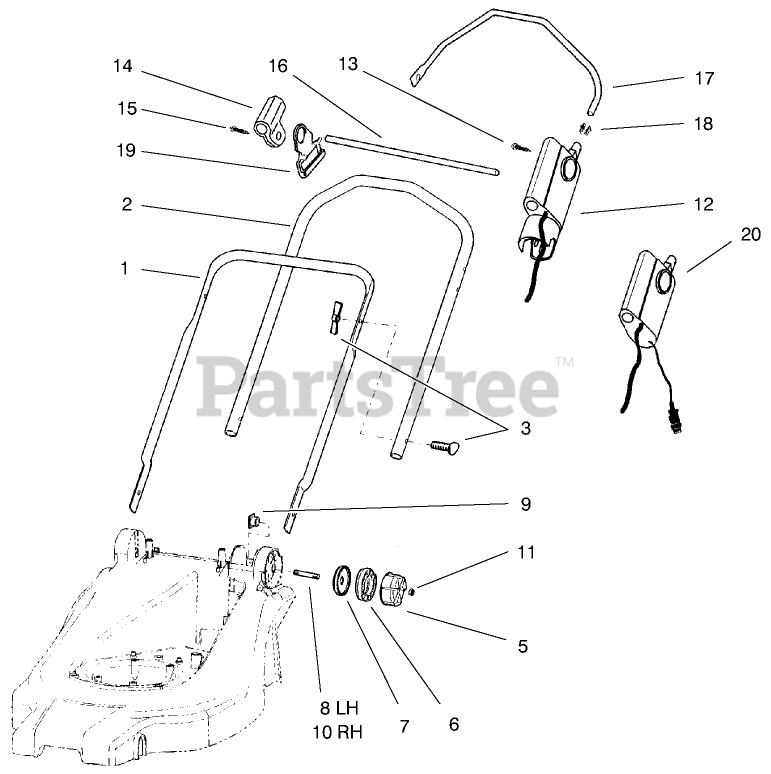

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-6514

HANDLE - LOWER

$

$

Not available

2

Toro 95-6516

Handle-Upper

$

$

Not available

3

Toro 95-6718

BOLT AND SCREW SET

$

$

Not available

5

Toro 95-6713

Adjusting Knob-Handle (Incl. Ref. #11)

$

$

Not available

6

Toro 95-6567

ADJUSTING DISK-HANDLE

$

$

Not available

7

Toro 95-6568

DISC-HOLDING

$

$

Not available

8

Toro 95-6694

STUD-LH

$

$

Not available

9

Toro 95-6740

NUT

$

$

Not available

10

Toro 95-6695

Bolt-RH
(Superseded to 95-6777)

$

$

Not available

11

Toro 95-6569

NUT

$

$

Not available

12

Toro 95-6605

Switch Assembly (Only on: 21070)

$

$

Not available

Toro 95-6631

Switch Assy. (Only on: 21071)

$

$

Not available

13

Toro 95-6598

SCREW

$

$

Not available

14

Toro 95-6596

Mount-Bail

$

$

Not available

15

Toro 95-6598

SCREW

$

$

Not available

16

Toro 95-6607

ROD

$

$

Not available

17

Toro 95-6606

BAIL

$

$

Not available

18

Toro 95-6602

Clamp-Bail

$

$

Not available

19

Toro 95-6597

HOLDER-CABLE

$

$

Not available

20

Toro 95-6630

Switch Assembly (Only on: 21072)

$

$

Not available

Toro 95-6685

Cord-Power (Only on: 21072)

$

$

Not available
