21060 - Toro 34cm Electric Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) MOTOR AND BLADE ASSEMBLY Parts Diagram

34cm Electric Recycler Walk-Behind Mower

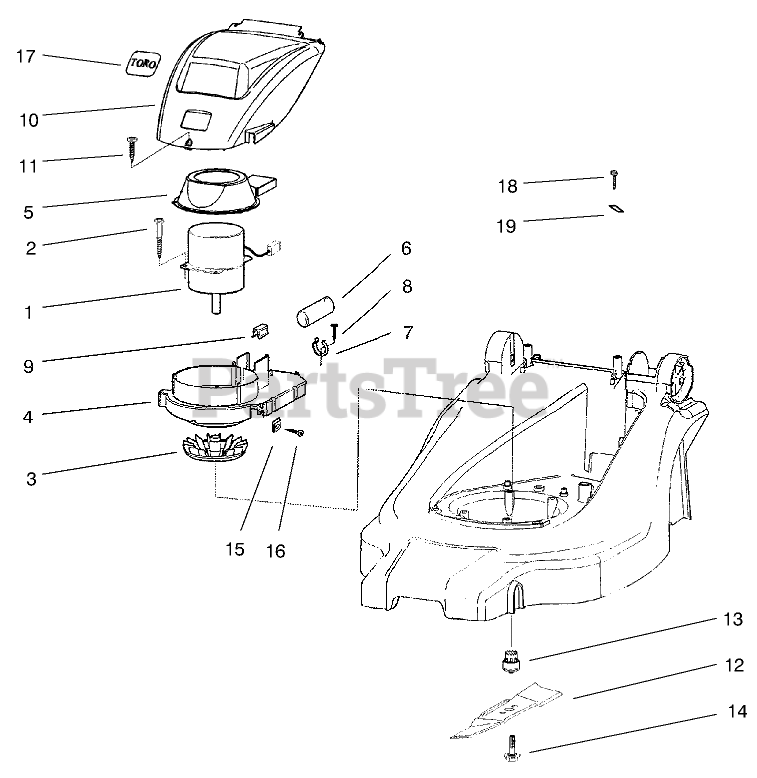

MOTOR AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6742

MOTOR

$

$

Not available

2

Toro 95-6723

SCREW

$

$

Not available

3

$11.99

$

Usually ships in 3-6 days

0

4

Toro 95-6748

Adapter-Motor

$

$

Not available

5

Toro 95-6624

Baffle-Motor

$7.49

$

Usually ships in 3-6 days

0

6

Toro 95-6632

CAPACITOR

$42.99

$

Usually ships in 3-6 days

0

7

Toro 95-6584

Clip-Capacitor

$

$

Not available

8

Toro 95-6598

SCREW

$2.99

$

Usually ships in 3-6 days

0

9

Toro 95-6620

U-CLIP

$

$

Not available

10

Toro 95-6714

Shroud-Motor (Incl. Ref. #17)

$

$

Not available

11

Toro 95-6732

Screw

$

$

Not available

12

Toro 95-6582

BLADE

$

$

Not available

13

Toro 95-6767

RETAINER-BLADE

$

$

Not available

14

Toro 95-6743

SCREW-BLADE

$

$

Not available

15

Toro 95-6619

NUT-SNAP ON, SHROUD

$

$

Not available

16

Toro 95-6623

SCREW

$

$

Not available

17

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

18

Toro 95-6532

SCREW

$

$

Not available

19

Toro 95-6692

Release-Cable

$

$

Not available
