21060 - Toro 34cm Electric Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

34cm Electric Recycler Walk-Behind Mower

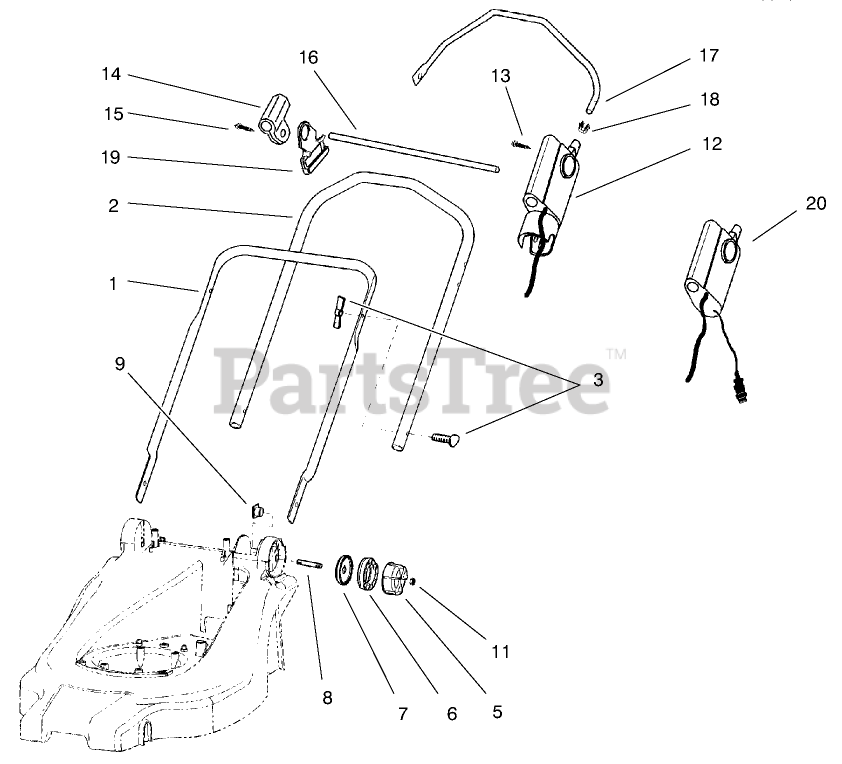

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-6515

Handle-Lower

$

$

Not available

2

Toro 95-6517

Handle-Upper (Incl. Ref. # 17)

$78.99

$

Usually ships in 3-6 days

0

3

Toro 95-6718

BOLT AND SCREW SET

$

$

Not available

5

Toro 95-6713

Adjusting Knob-Handle (Incl. Ref. #11)

$

$

Not available

6

Toro 95-6567

ADJUSTING DISK-HANDLE

$

$

Not available

7

Toro 95-6568

DISC-HOLDING

$

$

Not available

8

Toro 95-6703

Bold

$

$

Not available

9

Toro 95-6740

NUT

$

$

Not available

11

Toro 95-6569

NUT

$

$

Not available

12

Toro 95-6605

Switch Assembly (Only on: 21060)

$

$

Not available

Toro 95-6631

Switch Assembly (Only On: 21061)

Note: Not illustrated

$

$

Not available

13

Toro 95-6598

SCREW

$

$

Not available

14

Toro 95-6596

Mount-Bail

$

$

Not available

15

Toro 95-6598

SCREW

$

$

Not available

16

Toro 95-6535

ROD

$

$

Not available

17

Toro 95-6529

BAIL

$

$

Not available

18

Toro 95-6602

Clamp-Bail

$

$

Not available

19

Toro 95-6597

HOLDER-CABLE

$

$

Not available

20

Toro 95-6630

Switch Assembly (Only On: 21062)

$

$

Not available

Toro 95-6685

Cord-Extension (Only On: 21062)

Note: Not illustrated

$

$

Not available
