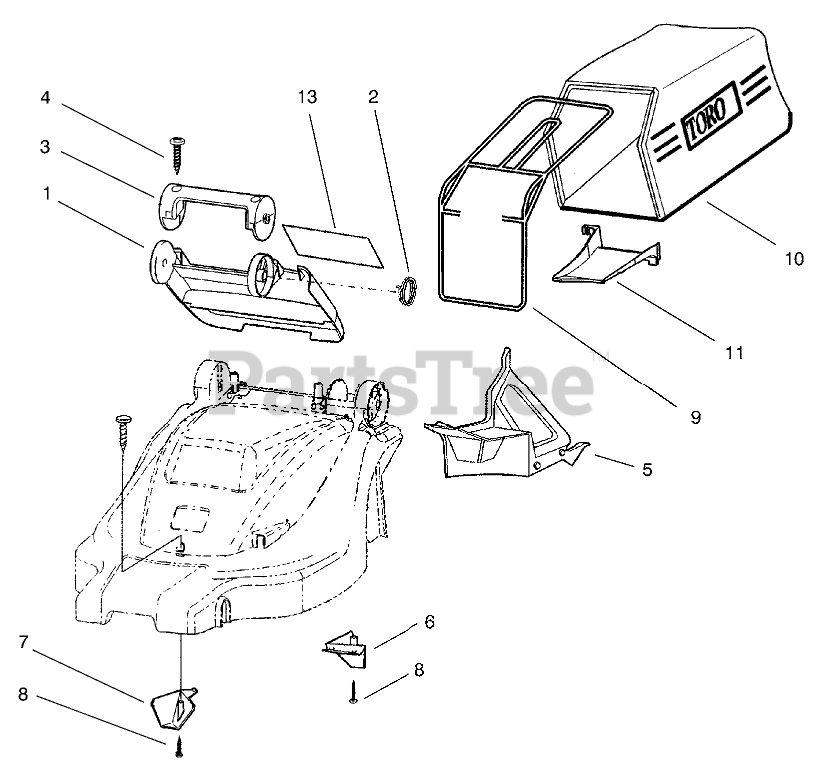

21060 - Toro 34cm Electric Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) BAG AND RECYCLING ASSEMBLY Parts Diagram

34cm Electric Recycler Walk-Behind Mower

BAG AND RECYCLING ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6712

Rear Door (Incl. Ref. #13)

$32.99

$

Usually ships in 3-6 days

0

2

Toro 95-6796

SPRING-REAR, DOOR

$

$

Not available

3

Toro 95-6508

HANDLE

$

$

Not available

4

Toro 95-6732

Screw

$

$

Not available

5

Toro 95-6578

Plug-Recycler

$28.99

$

Usually ships in 3-6 days

0

6

Toro 95-6577

Kicker-Middle

$

$

Not available

7

Toro 95-6765

Kicker-Front

$

$

Currently unavailable

8

Toro 95-6560

SCREW-BUTTON HEAD, TORX

$2.99

$

Usually ships in 3-6 days

0

9

Toro 95-6553

Frame-Bag

$

$

Not available

10

$

$

Not available

11

Toro 95-6555

Ramp-Bag

$

$

Not available

13

Toro 95-6572

Decal-Safety

$3.49

$

Usually ships in 3-6 days

0
