21060 - Toro 34cm Electric Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) CHASSIS ASSEMBLY Parts Diagram

34cm Electric Recycler Walk-Behind Mower

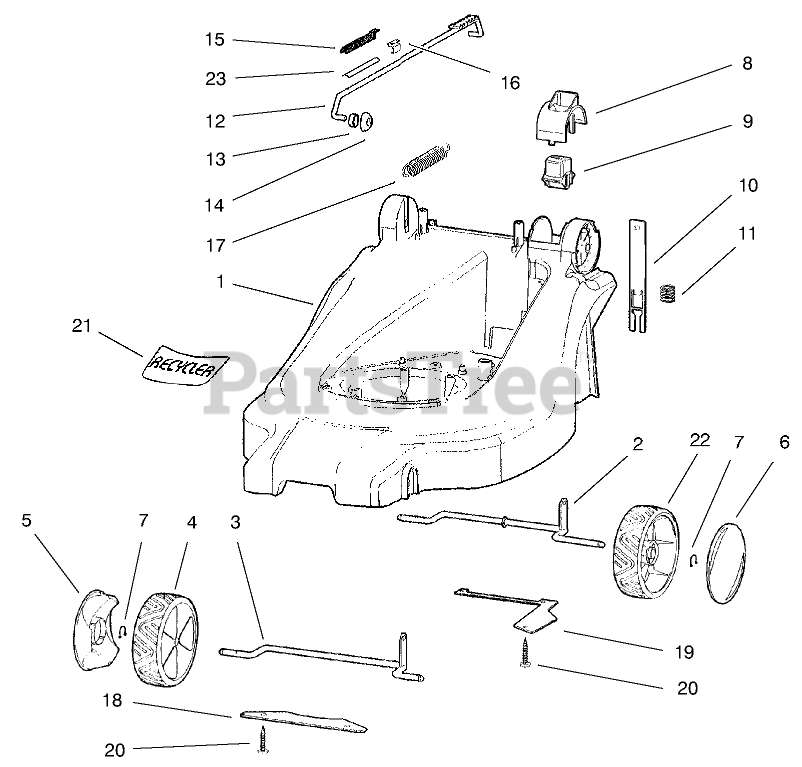

CHASSIS ASSEMBLY Parts Diagram

  • Title

1

Toro 95-6500

HOUSING

$

$

Not available

2

Toro 95-6503

AXLE

$

$

Not available

3

Toro 95-6502

AXLE

$

$

Not available

4

Toro 95-6665

Wheel Assembly (Incl. Ref. # 5 & 7)

$

$

Not available

5

Toro 95-6543

COVER-WHEEL

$4.49

$

Usually ships in 3-6 days

0

6

Toro 95-6716

Cover-Wheel

$

$

Not available

7

Toro 95-6544

Clamp-Spring, Wheel

$

$

Not available

8

Toro 95-6563

COVER - KNOB

$

$

Not available

9

Toro 95-6562

Knob-HOC

$

$

Not available

10

Toro 95-6506

Latch-HOC

$12.99

$

Usually ships in 3-6 days

0

11

Toro 95-6564

Spring-HOC

$

$

Not available

12

Toro 95-6719

Rod-HOC (Incl. Ref. # 23)

$

$

Not available

13

Toro 95-6697

SPACER

$

$

Not available

14

Toro 95-6565

Nut-Push

$

$

Not available

15

Indicator-HOC

Note: Not serviced separately

$

$

Not available

16

U-Clip-Indicator

Note: Not serviced separately

$

$

Not available

17

Toro 95-6505

Spring-Balance, HOC

$

$

Not available

18

Toro 95-6700

Plate-Axle, Front

$

$

Not available

19

Toro 95-6699

Plate-Axle, Rear

$

$

Not available

20

Toro 95-6560

SCREW-BUTTON HEAD, TORX

$

$

Not available

21

Toro 95-6521

DECAL - RECYCLER 34CM

$

$

Not available

22

Toro 95-6666

Smartwheel Assembly (Incl. Ref. # 6 & 7)

$

$

Not available

23

Toro 95-6709

Decal-HOC

$

$

Currently unavailable
