21050 B - Toro 43cm Recycler Walk-Behind Mower, Electric (SN: 069000001 - 069999999) (1996) MOTOR ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower, Electric

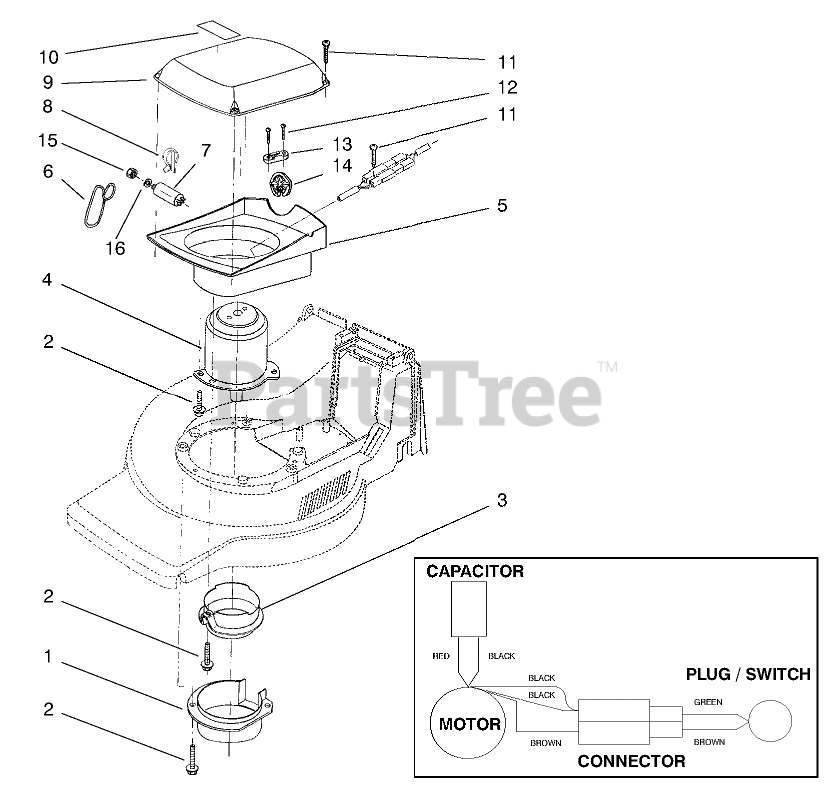

MOTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 94-6711

SHROUD - LOWER

$

$

Not available

2

Toro 94-6736

SCREW

$

$

Not available

3

Toro 94-6738

SHROUD - INNER

$

$

Not available

4

Toro 94-6742

MOTOR - ELECTRIC

$

$

Not available

5

Toro 94-6713

SHROUD - MOTOR

$

$

Not available

6

Toro 94-6743

BINDER - RUBBER

$

$

Not available

7

Toro 94-6744

CAPACITOR

$

$

Not available

8

$

$

Not available

9

Toro 94-6715

COVER - SHROUD

$

$

Not available

10

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

11

Toro 94-6717

SCREW - TAPPING

$

$

Not available

12

Toro 94-6724

SCREW

$

$

Not available

13

Toro 94-6730

CLAMP - CABLE

$

$

Not available

14

Toro 94-6728

ADAPTER

$

$

Not available

15

$

$

Not available

16

Toro 94-6719

WASHER

$

$

Not available
