21050 B - Toro 43cm Recycler Walk-Behind Mower, Electric (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower, Electric

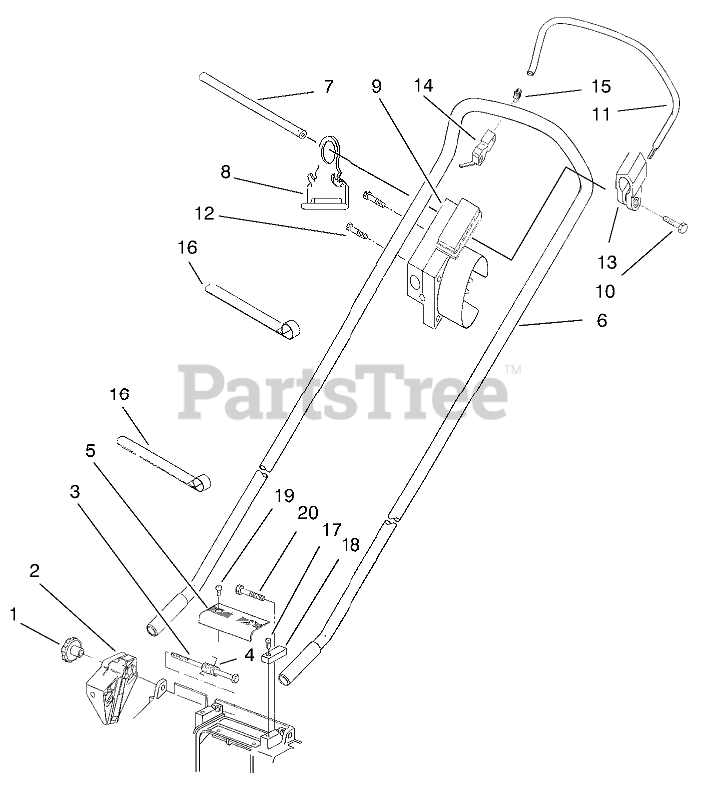

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$17.99

$

In Stock, only 3 left!

0

2

Toro 93-4082

Mount-Handle R.H.

$

$

Not available

3

Toro 93-4058

BOLT-LONG

$13.99

$

Usually ships in 3-6 days

0

4

Toro 93-4057

SPRING-DOOR

$8.49

$

Usually ships in 3-6 days

0

5

Toro 71-7860

GRIP-UPPER

$

$

Not available

6

Toro 94-6745

HANDLE

$

$

Not available

7

$

$

Not available

8

Toro 94-6729

RETAINER - CABLE

$

$

Not available

9

Toro 94-6732

SWITCH - PLUG ASSEMBLY

$

$

Not available

10

Toro 94-6716

SCREW - TAPPING

$

$

Not available

11

Toro 94-6714

LEVER - SWITCH

$

$

Not available

12

Toro 94-6718

SCREW - TAPPING

$

$

Not available

13

Toro 94-6740

MOUNT - LEVER

$3.49

$

Usually ships in 3-6 days

0

14

Toro 94-6739

BUSHING - LEVER

$

$

Not available

15

$

$

Not available

16

Toro 94-6733

Binder-Cable

$

$

Not available

17

Toro 93-4094

SCREW-CAP, HINGE

$

$

Not available

18

Toro 93-4056

CAP-BOLT

$

$

Not available

19

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

20

Toro 93-4060

BOLT-SHORT

$

$

Not available

Toro 93-4083

Mount-Handle L.H
(Superseded to 99-1705)

Note: Not Illustrarted

$

$

Not available
