21050 B - Toro 43cm Recycler Walk-Behind Mower, Electric (SN: 069000001 - 069999999) (1996) DECK ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower, Electric

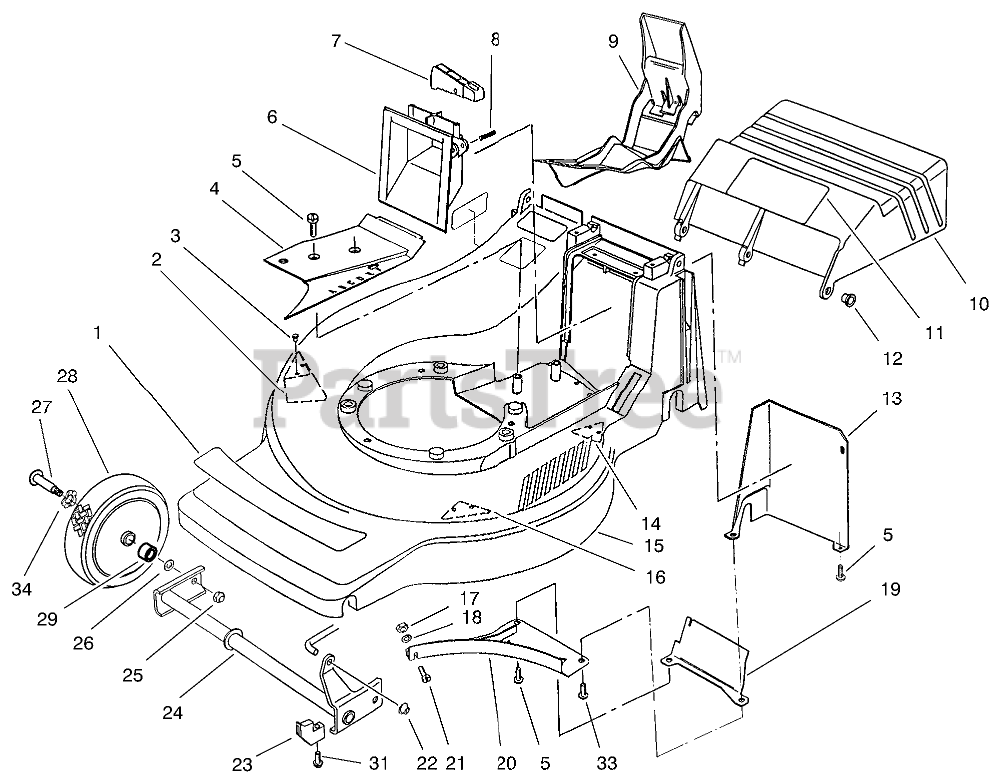

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 93-4351

DECAL - DECK
(Superseded to 95-6839)

$186.99

$

Usually ships in 3-6 days

0

2

Toro 93-3730

KICKER

$16.99

$

Usually ships in 3-6 days

0

3

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 93-3782

COVER - BELT

$

$

Not available

5

Toro 93-4095

SCREW-RH

$

$

Not available

6

Toro 71-7870

GRIP - LOWER

$

$

Not available

7

Toro 71-7930

TRIGGER - HOC

$

$

Not available

8

Toro 3284-5

PIN-SPIRAL

$

$

Not available

9

$98.99

$

Usually ships in 3-6 days

0

10

Toro 93-4055

Door-Discharge
(Superseded to 99-1700)

$

$

Not available

11

Toro 94-9163

DECAL - DANGER

$

$

Not available

12

Toro 93-3794

BUSHING-DOOR

$

$

Not available

13

Toro 93-3781

COVER - SHIELD
(Superseded to 98-1429)

$

$

Not available

14

Toro 93-3750

KICKER

$16.99

$

Usually ships in 3-6 days

0

15

Toro 16-8959

Housing Assembly (Incl. Ref. #2, 3, 14, 16 )

$

$

Not available

16

Toro 93-3740

KICKER

$16.99

$

Usually ships in 3-6 days

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 93-4110

BAFFLE-BAGGER, REAR

$

$

Not available

20

Toro 93-3720

BAFFLE

$

$

Not available

21

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

22

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

23

Toro 93-4064

RETAINER - AXLE

$

$

Not available

24

Toro 93-4080

AXLE-FRONT

$87.99

$

Usually ships in 3-6 days

0

25

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

26

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

27

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

28

Toro 93-4081

WHEEL-FRONT

$

$

Not available

29

Toro 93-7024

BUSHING

$4.49

$

Usually ships in 3-6 days

0

31

Toro 93-3793

SCREW-RETAINER

$

$

Not available

33

Toro 94-1864

SCREW-BAFFLE

$

$

Not available

34

Toro 94-6722

WASHER-WAVE

$

$

Not available
