21040 - Toro Carefree Cordless Walk-Behind Mower, 24V (SN: 210000001 - 210999999) (2001) COVER, MULCH PLUG AND PANEL ASSEMBLY Parts Diagram

Carefree Cordless Walk-Behind Mower, 24V

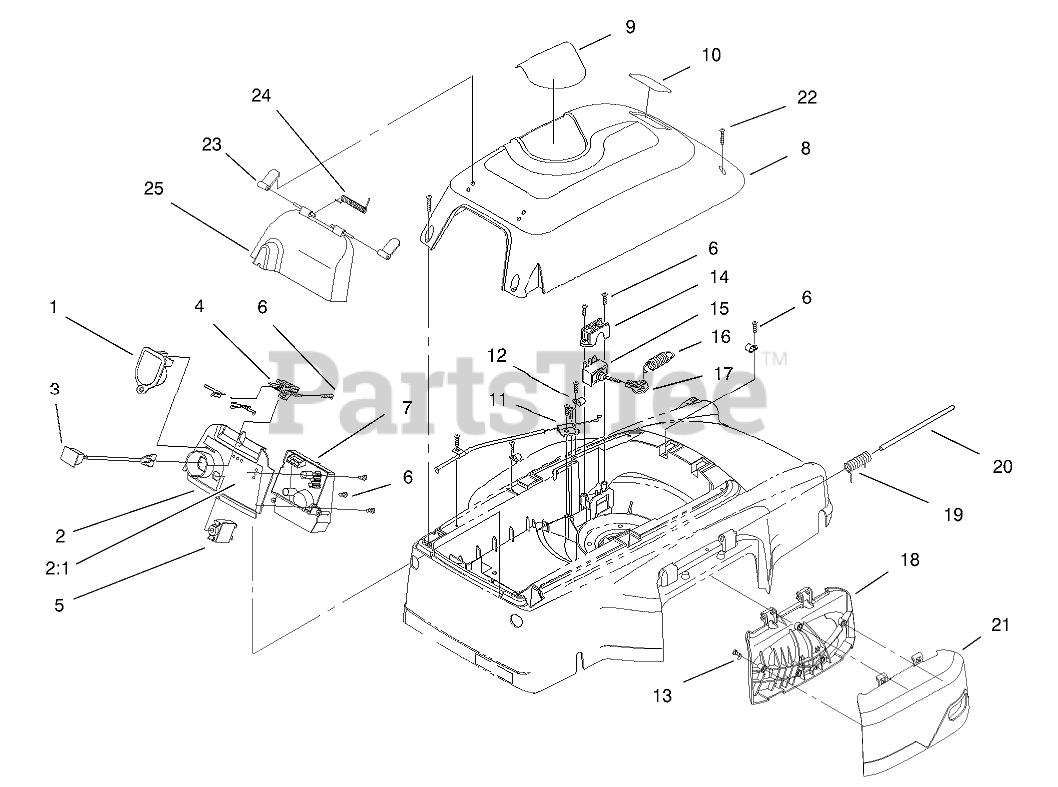

COVER, MULCH PLUG AND PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 95-5028

KEY

$63.99

$

Usually ships in 3-6 days

0

2

Toro 104-0238

PANEL ASM

$

$

Not available

2:1

Toro 95-5015

DECAL - CONTROL PANEL

$

$

Not available

3

Toro 95-5024

PLUG ASM

$

$

Not available

4

Toro 95-5042

HOUSING - PLUG

$

$

Not available

5

Toro 93-3982

CIRCUIT BREAKER

$

$

Not available

6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-0245

Charger

$466.99

$

Usually ships in 3-6 days

0

8

Toro 95-5168

COVER ASM

$

$

Not available

9

Toro 95-5008

DECAL - COVER

$

$

Not available

10

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

11

Toro 93-3975

BRACKET - CABLE

$

$

Not available

12

Toro 94-1194

CLIP - WIRE

$

$

Not available

13

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

14

Toro 93-3345

CLAMP - SWITCH, TOGGLE

$

$

Not available

15

Toro 93-3970

SWITCH - TOGGLE

$

$

Not available

16

Toro 93-3999

SPRING - SWITCH

$

$

Not available

17

Toro 93-3346

COVER LEVER-SWITCH

$

$

Not available

18

Toro 93-3956

OBS MULCH PLUG - INSIDE

$

$

Not available

19

Toro 94-3865

SPRING - TORSION

$

$

Not available

20

Toro 93-3990

PIN - HINGE, MULCH PLUG

$

$

Not available

21

Toro 95-5033

PLUG - OUTSIDE MULCH

$

$

Not available

22

Toro 93-3986

SCREW-PPH

$4.49

$

Usually ships in 3-6 days

0

23

Toro 95-5025

TAB - SHIELD

$

$

Not available

24

Toro 95-5022

SPRING - TORSION, SHIELD

$

$

Not available

25

Toro 95-5041

SHIELD - RAIN

$

$

Not available
