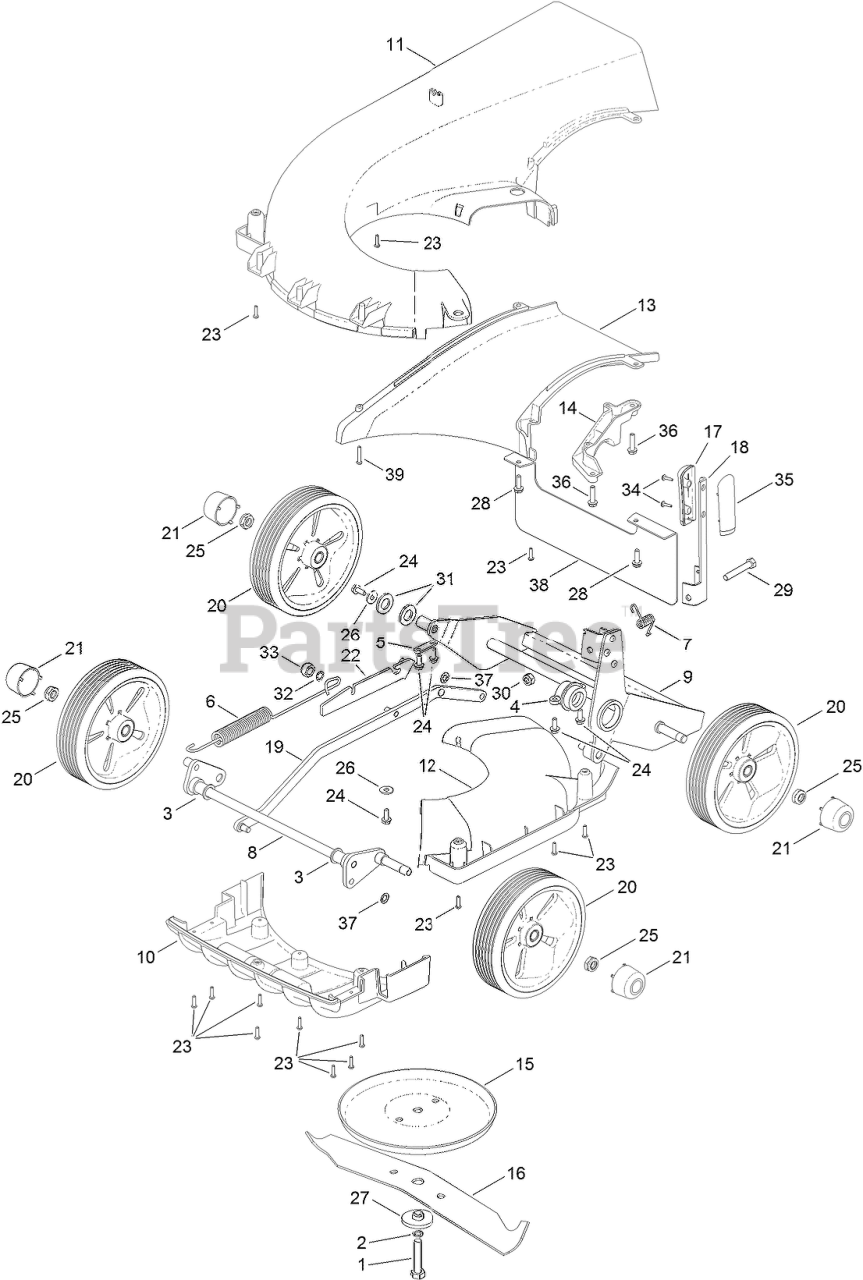

21030 - Toro 41cm Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) LOWER ASSEMBLY Parts Diagram

41cm Recycler Walk-Behind Mower

LOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 09788

BOLT-UNF

$

$

Currently unavailable

2

Toro 09273

WASHER-SPRING

$

$

Not available

3

Toro 410069

BEARING-AXLE, FRONT

$

$

Currently unavailable

4

Toro 410048

HOUSING-PIVOT BEARING, LH

$

$

Currently unavailable

5

Toro 219037

PLATE-SECURING

$

$

Currently unavailable

6

Toro 410050

SPRING-COUNTER BALANCE

$

$

Currently unavailable

7

Toro 111-0078

SPRING-HOC

$

$

Currently unavailable

8

Toro 111-0027

AXLE-FRONT

$

$

Currently unavailable

9

Toro 111-0068

FRAME-WHEEL
(Superseded to 111-0068-03)

$

$

Not available

10

Toro 111-0034

MOULDING-FIN

$

$

Currently unavailable

11

Toro 111-0037

MOULDING-SNAIL DECK

$

$

Currently unavailable

12

Toro 111-0038

MOULDING-ACCESS, SNAIL DECK

$

$

Currently unavailable

13

Toro 111-0039

MOULDING-THROW PLATE

$

$

Currently unavailable

14

Toro 111-0050

MOUNT-BEARING

$

$

Not available

15

Toro 410057W

DISC-FRICTION

$

$

Not available

16

Toro 111-0093

CUTTERBAR

$

$

Currently unavailable

17

Toro 111-0055

KNOB-HOC, RH

$

$

Currently unavailable

18

Toro 111-0059

LEVER-HOC

$

$

Currently unavailable

19

Toro 111-0063

ROD-CONNECTING BAR

$

$

Currently unavailable

20

Toro 111-4036

WHEEL ASM

$40.99

$

Usually ships in 3-6 days

0

21

Toro 111-0066

CAP-WHEEL, CENTER

$

$

Currently unavailable

22

Toro 111-0073

MOUNT-SPRING

$

$

Currently unavailable

23

$

$

Not available

24

Toro 09365

SCREW M6 X 16 TAPTITE HEX HD

$

$

Currently unavailable

25

Toro 111-0119

NUT-NYLOC

$

$

Currently unavailable

26

Toro 09262

WASHER

$

$

Not available

27

Toro HY4014

SPACER-DISTANCE, CUTTERBAR

$

$

Currently unavailable

28

Toro 09575

SCREW-TAPTITE

$

$

Not available

29

Toro 09565

SCREW-HH

$

$

Not available

30

Toro 09441

NUT-HEX, NI

$

$

Not available

31

Toro 09491

WASHER-PLAIN

$

$

Not available

32

Toro 09476

WASHER-SHAKEPROOF

$

$

Currently unavailable

33

Toro 09438

NUT-NYLOC

$

$

Not available

34

$

$

Not available

35

Toro 111-0105

KNOB-HOC, LH

$

$

Currently unavailable

36

Toro 09364

SCREW-HH

$

$

Not available

37

Toro 0201086

WASHER-STARLOCK

$

$

Not available

38

Toro 111-4952

GUARD-REAR
(Superseded to 111-4952-03)

$

$

Not available

39

$

$

Currently unavailable
