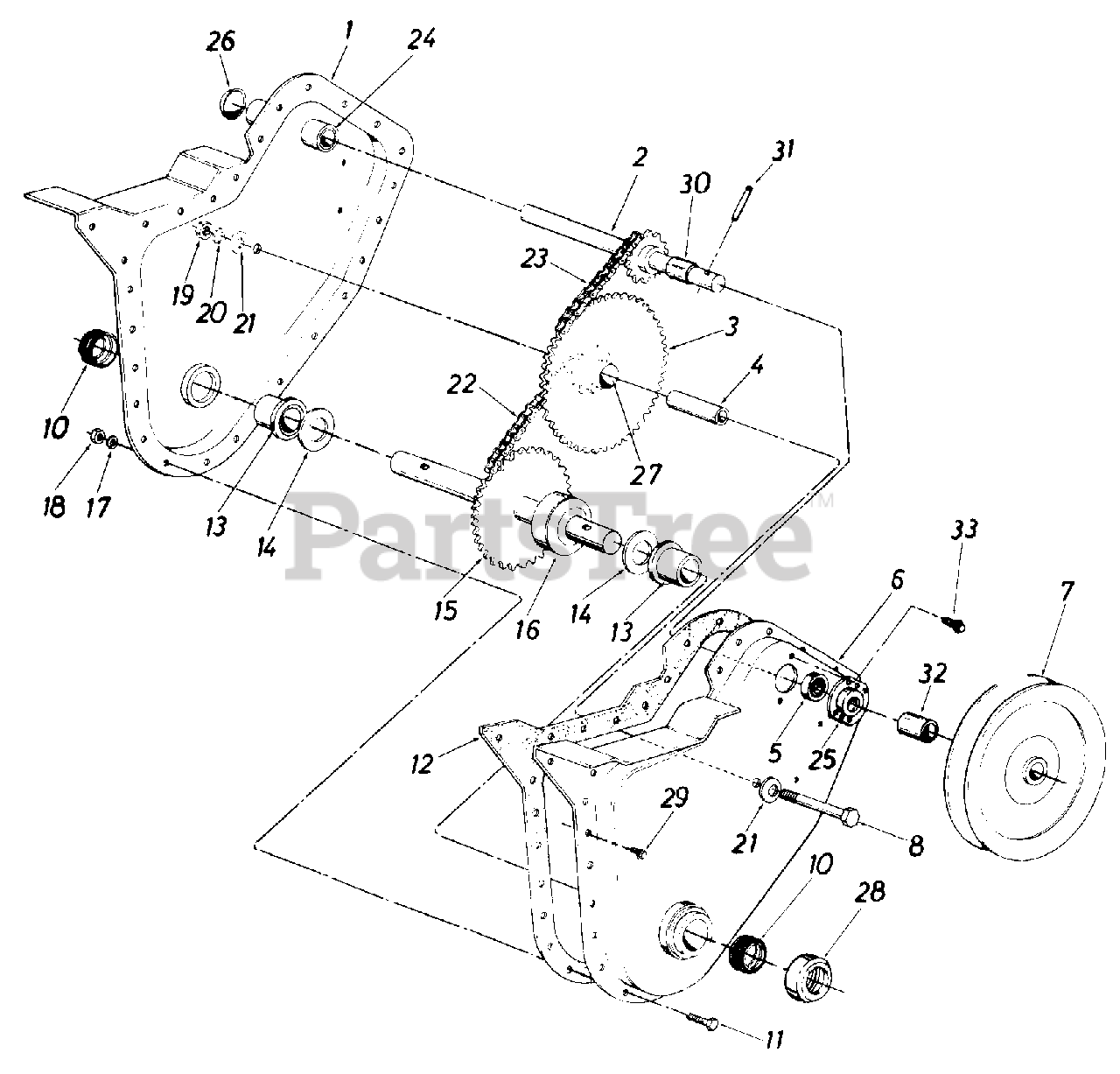

21030-7 - MTD Tiller (1987) Chain Parts Diagram

Tiller

Chain Parts Diagram

  • Title

1

MTD 04926

Chain Case Ass'y. R.H.

$

$

Currently unavailable

2

MTD 04756

Input Shaft Ass'y.

$

$

Not available

3

MTD 04757

Hub and Sprocket Ass'y.
(Superseded to 04757A)

$

$

Not available

4

MTD 750-0351

Bearing Inner Race

$

$

Not available

5

MTD 741-0155

Ball Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

6

MTD 15863

Chain Case Ass'y. L.H.
(Superseded to 686-0087-0637)

$

$

Not available

7

MTD 756-0287

Pulley Chain Case 51/2 x 1/2

$

$

Not available

8

MTD 710-0369

Hex Bolt 3/8-24 x 2.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

10

MTD 721-0157

Seal

$

$

Not available

11

MTD 710-0195

Hex Bolt 1/4-28 x .625" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

12

MTD 721-0156

Gasket
(Superseded to 921-0156A)

$

$

Not available

13

MTD 741-0227

Flange Brg. .879 I.D.

$11.99

$

In Stock, Qty 20+

0

14

MTD 736-0265

Fl-Wash. .88 I.D. x 1.50 O.D. x .030

$

$

Not available

15

MTD 04920

Tine Shaft Ass'y.

$

$

Not available

16

MTD 750-0354

Spacer 718" I.D. x .68" Lg.
(Superseded to 750-0354A)

$

$

Not available

17

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

20

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-0219

Bell-Wash. .406 I.D. x 1.130 O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

MTD 713-0215

Chain #420 .50" Pitch x 38 Links

$

$

Not available

23

MTD 713-0216

Chain #35 .375" Pitch x 50 Links

$

$

Not available

24

MTD 748-0154

Bearing .62" I.D. x .813 O.D. x 1.31

$

$

Not available

25

MTD 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

26

MTD 726-0164

Expansion Plug 13/16" Dia.

$

$

Not available

27

MTD 741-0228

Bearing

$

$

Not available

28

MTD 731-0486

Dust Cap

$

$

Not available

29

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 750-0471

Spacer .630" I.D. x .77" O.D. x.38" Lg.

$

$

Not available

31

MTD 715-0114

Spring Pin Spiral 1/4" Dia. x 1-1/2 " Lg.

$9.49

$

In Stock, Qty 20+

0

32

MTD 750-0550

Spacer .647 x 1.25"

$

$

Not available

33

MTD 710-0653

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0
