21027 - Toro 43cm Emotion Walk-Behind Mower (SN: 290003001 - 290999999) (2009) UPPER HANDLE ASSEMBLY Parts Diagram

43cm Emotion Walk-Behind Mower

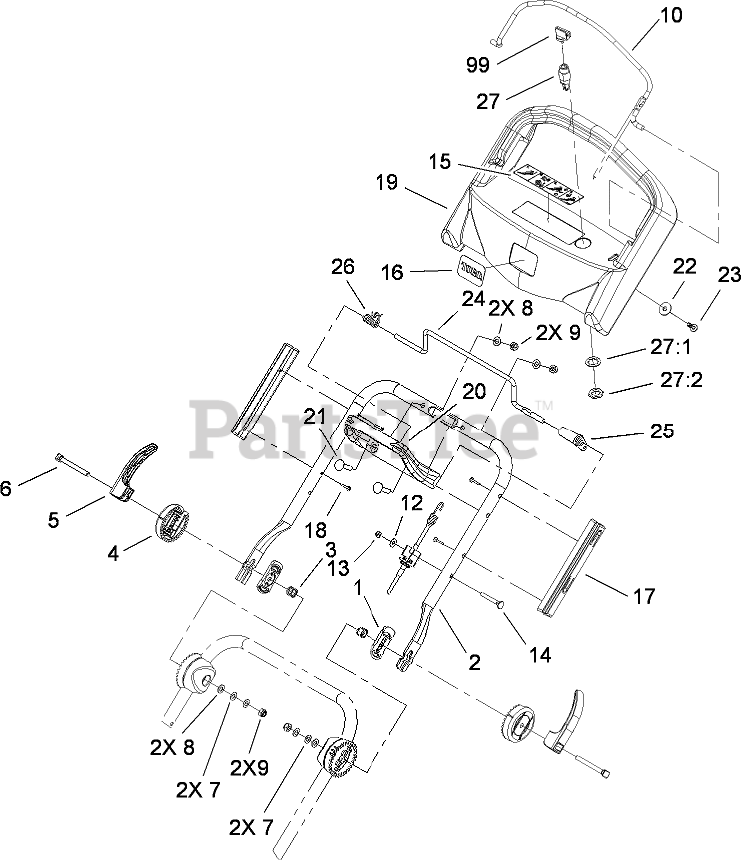

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 110-9313

PLATE-ADJUST, HANDLE

$

$

Currently unavailable

2

Toro 110-9317

HANDLE-UPPER

$

$

Not available

3

Toro 110-9392

SPRING-ADJUST, HANDLE

$

$

Currently unavailable

4

Toro 110-9316

MOUNT-HANDLE, UPPER

$

$

Currently unavailable

5

Toro 110-9296

LEVER-LOCKING, HANDLE

$

$

Currently unavailable

6

Toro 95-6996

BOLT-T HEAD, UPPER

$

$

Currently unavailable

7

Toro 110-9335

WASHER-SPRING

$

$

Currently unavailable

8

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

9

Toro 106-4757

NUT-HEX

$

$

Currently unavailable

10

Toro 110-9359

BAIL-BRAKE

$

$

Not available

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 106-8576

NUT-HEX

$

$

Not available

14

Toro 114-5350

BOLT-CARRIAGE

$

$

Currently unavailable

15

$

$

Not available

16

$

$

Not available

17

Toro 99-1590

GUIDE-HANDLE, CONTROL

$16.99

$

In Stock, only 3 left!

0

18

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 95-6998

HANDLE-CONTROL

$

$

Currently unavailable

20

Toro 99-1591

HANDLE-ASSIST, TRACTION
(Superseded to 104-7943)

$58.99

$

Usually ships in 3-6 days

0

21

Toro 106-4755

BOLT-RH

$

$

Not available

22

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

23

Toro 110-9352

SCREW-ROUND HEAD, POZIDRIVE

$

$

Not available

24

Toro 110-9304

BAR-CONTROL, TRACTION

$

$

Not available

25

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

26

Toro 95-6849

Spring-Torsion

$

$

Currently unavailable

27

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

27:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

27:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

99

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0
