21027 - Toro 43cm Emotion Walk-Behind Mower (SN: 270000001 - 270999999) (2007) DECK ASSEMBLY Parts Diagram

43cm Emotion Walk-Behind Mower

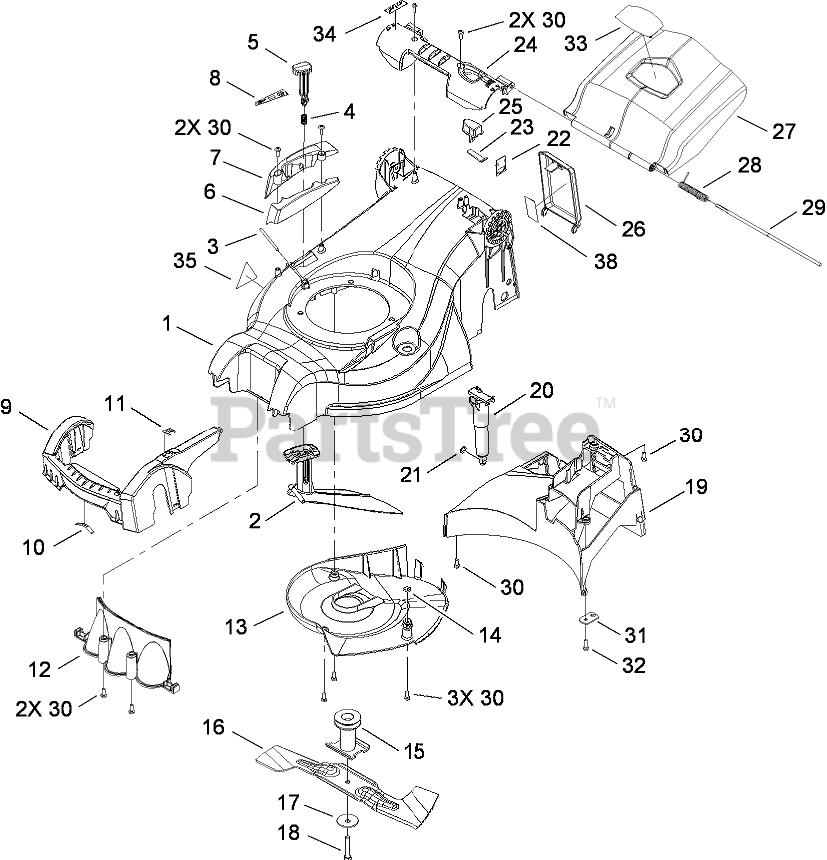

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 112-8550

DECK ASM

$

$

Currently unavailable

2

Toro 110-9269

DOOR-ROD

$

$

Not available

3

Toro 110-9271

PIN-DOOR, ROD

$

$

Not available

4

Toro 110-9274

SPRING-DOOR, ROD

$

$

Not available

5

Toro 110-9270

BUTTON-ROD

$

$

Currently unavailable

6

Toro 110-9272

COVER-ROD, LEFT

$

$

Not available

7

Toro 110-9273

COVER-ROD, RIGHT

$

$

Not available

8

$

$

Not available

9

Toro 110-9258

BUMPER-FRONT
(Superseded to 112-8600)

$

$

Not available

10

Toro 110-9305

SPRING-LEAF, FRONT

$

$

Currently unavailable

11

Toro 110-9259

LENSE-HOC

$

$

Not available

12

Toro 110-9257

BAFFLE-FRONT

$

$

Not available

13

Toro 95-6987

COVER-DECK
(Superseded to 112-8609)

$

$

Not available

14

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

15

Toro 110-9291

BLADE DRIVER ASM

$

$

Currently unavailable

16

Toro 110-9289

BLADE-ROTARY

$

$

Not available

17

Toro 95-6727

WASHER-SPRING

$

$

Not available

18

Toro 95-6728

SCREW-HH

$

$

Not available

19

Toro 110-9397

BAFFLE-REAR

$

$

Currently unavailable

20

Toro 95-6991

HOC CYLINDER ASM
(Superseded to 112-8612)

$

$

Not available

21

Toro 115-3125

CLIP-PUSH

$

$

Currently unavailable

22

Toro 110-9295

PLATE-LOCKING

$

$

Currently unavailable

23

Toro 110-9279

LEVER-BUTTON, HOC

$

$

Currently unavailable

24

Toro 110-9267

HANDLE-DECK, REAR

$

$

Not available

25

Toro 110-9277

BUTTON-HOC

$

$

Currently unavailable

26

Toro 110-9285

COVER-BATTERY

$

$

Currently unavailable

27

Toro 110-9268

DOOR-REAR
(Superseded to 114-5361)

$

$

Not available

28

Toro 110-9276

SPRING-DOOR, REAR

$

$

Currently unavailable

29

Toro 110-9275

PIN-DOOR, REAR

$

$

Not available

30

Toro 114-5356

SCREW-SPH, THREAD ROLLING

$

$

Currently unavailable

31

Toro 110-9332

SUPPORT-CABLE, TRACTION

$

$

Currently unavailable

32

Toro 93-4095

SCREW-RH

$

$

Not available

33

Toro 110-9328

DECAL-WARNING
(Superseded to 115-3114)

$

$

Not available

34

$

$

Currently unavailable

35

$

$

Currently unavailable

38

Toro 112-8592

DECAL-BATTERY
(Superseded to 115-3116)

$

$

Not available
