21027 - Toro 43cm Emotion Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 122T07-2058-B1 Parts Diagram

43cm Emotion Walk-Behind Mower

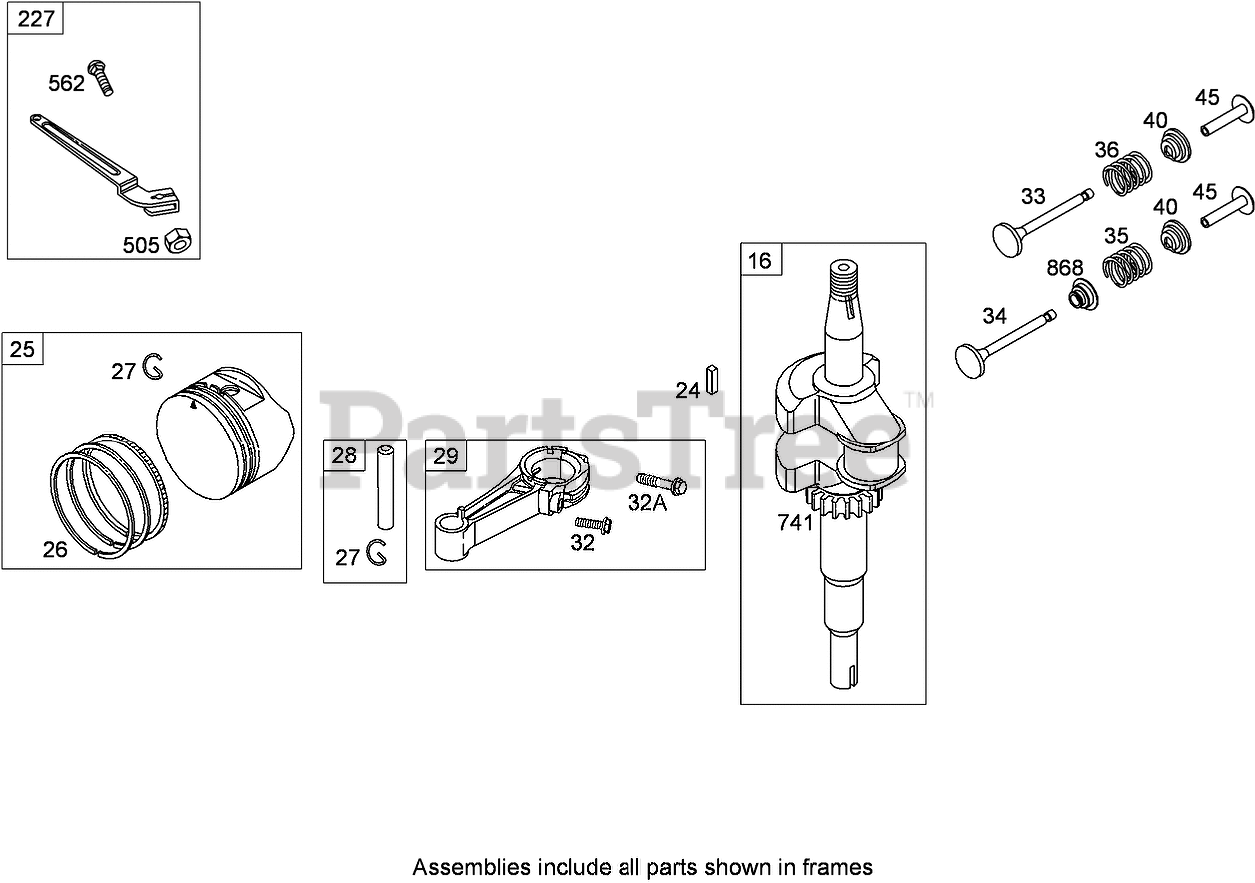

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 122T07-2058-B1 Parts Diagram

  • Title

16

Briggs & Stratton 691450

Crankshaft
(Superseded to 797017)

Note: Obtain parts from www.briggsandstratton.com

$155.99

$

Usually ships in 2-12 days

0

24

Toro 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 795429

Piston Asm (Standard)
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 795430

Piston Asm (.020 Oversize)
(Superseded to 799064)

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 795431

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$49.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 795432

Ring Set (.020 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$52.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw (Connecting Rod) (Short)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw (Connecting Rod) (Long)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

33

Toro 262651s

Valve-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

34

Toro 262652s

Valve-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

35

Briggs & Stratton 691270

Spring-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

36

Briggs & Stratton 691270

Spring-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 690548

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690783

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 92613

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

741

Briggs & Stratton 795755

Gear-Timing
(Superseded to 797521)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

868

Briggs & Stratton 697338

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 4 left!

0
