21026 - Toro 43cm Emotion Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE ASSEMBLY Parts Diagram

43cm Emotion Walk-Behind Mower

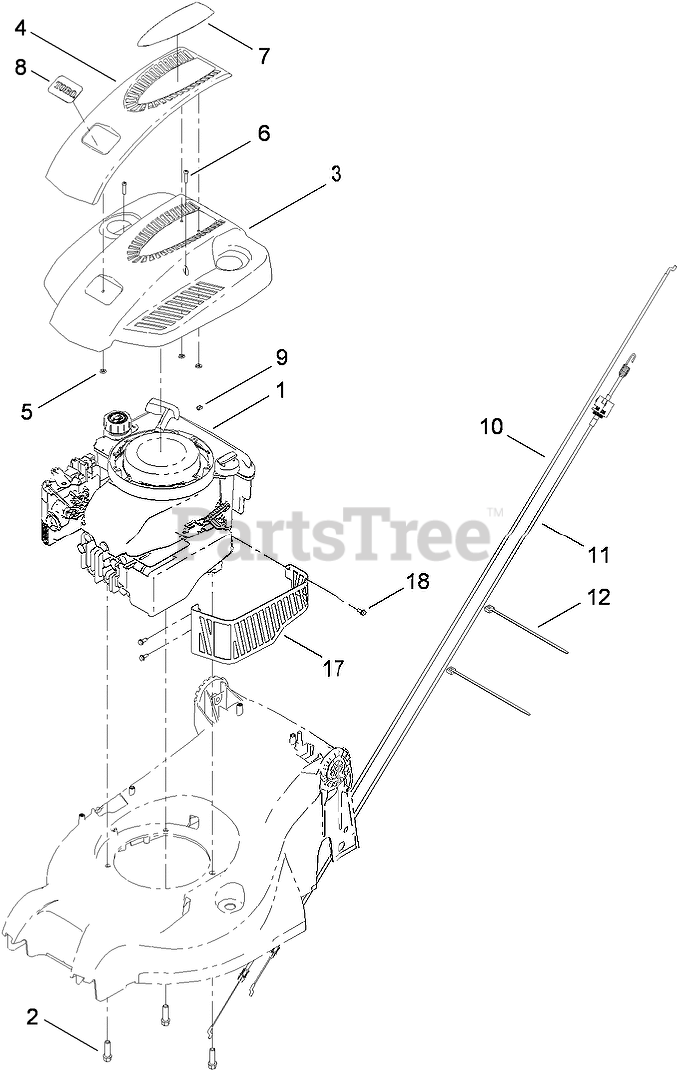

ENGINE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-BRIGGS, 124T02-0305-B1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 124T02-0305-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

3

Toro 110-9156

SHROUD-ENGINE

$

$

Not available

4

Toro 110-9157

COVER-SHROUD

$

$

Not available

5

Toro 110-9350

CLIP-PUSH

$

$

Not available

6

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

7

$

$

Not available

8

$

$

Not available

9

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

10

Toro 110-9324

CABLE-BRAKE

$

$

Not available

11

Toro 110-9326

CABLE-TRACTION

$

$

Not available

12

Toro 115-3113

TIE-CABLE

$

$

Not available

17

Toro 110-9158

SHIELD-MUFFLER

$

$

Currently unavailable

18

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0
