21026 - Toro 43cm Emotion Walk-Behind Mower (SN: 290003001 - 290999999) (2009) LOWER HANDLE ASSEMBLY Parts Diagram

43cm Emotion Walk-Behind Mower

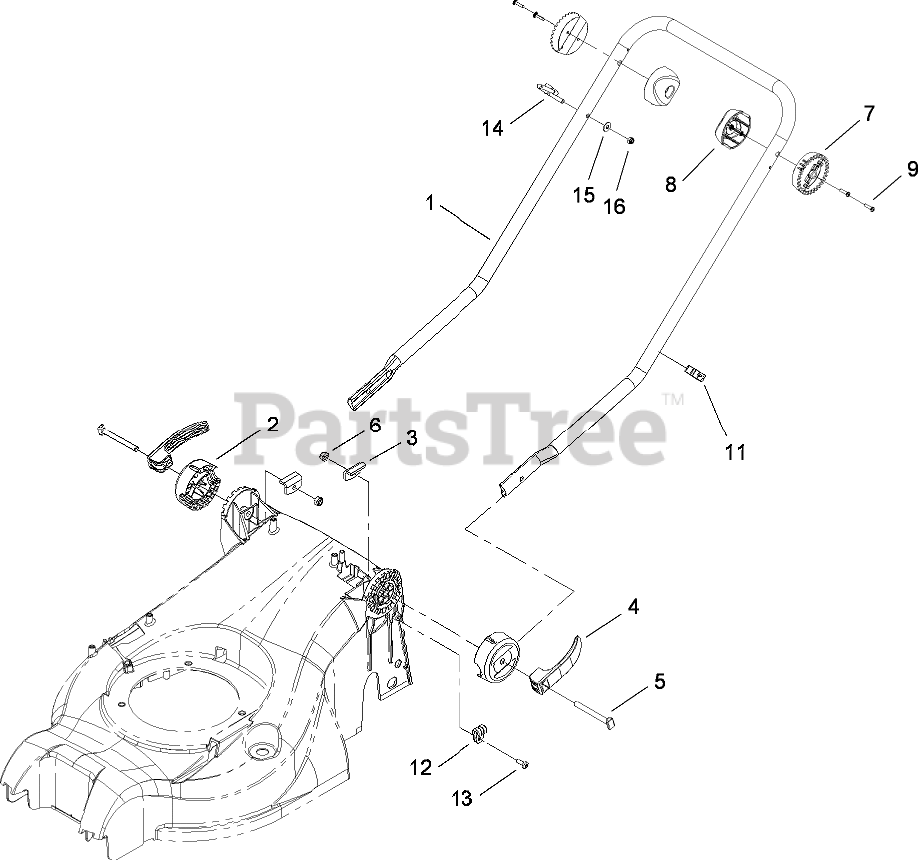

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 110-9297

HANDLE-LOWER

$

$

Currently unavailable

2

Toro 110-9351

DISC-HANDLE, LOWER

$

$

Currently unavailable

3

Toro 110-9376

BRACKET-ADJUST, HANDLE

$

$

Currently unavailable

4

Toro 110-9296

LEVER-LOCKING, HANDLE

$

$

Currently unavailable

5

Toro 95-6988

BOLT-T HEAD, LOWER

$

$

Currently unavailable

6

Toro 106-4757

NUT-HEX

$

$

Currently unavailable

7

Toro 110-9314

MOUNT-HANDLE

$

$

Currently unavailable

8

Toro 110-9315

CLAMP-HANDLE

$

$

Currently unavailable

9

Toro 95-6598

SCREW

$

$

Not available

11

Toro 110-9294

GUIDE-CABLE

$

$

Currently unavailable

12

Toro 115-3126

CLAMP-CABLE

$

$

Currently unavailable

13

Toro 114-5356

SCREW-SPH, THREAD ROLLING

$

$

Currently unavailable

14

Toro 112-8586

GUIDE-ROPE

$

$

Currently unavailable

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 106-8576

NUT-HEX

$

$

Not available
