21025 - Toro 43cm Emotion Walk-Behind Mower (SN: 290000001 - 290999999) (2009) UPPER HANDLE ASSEMBLY Parts Diagram

43cm Emotion Walk-Behind Mower

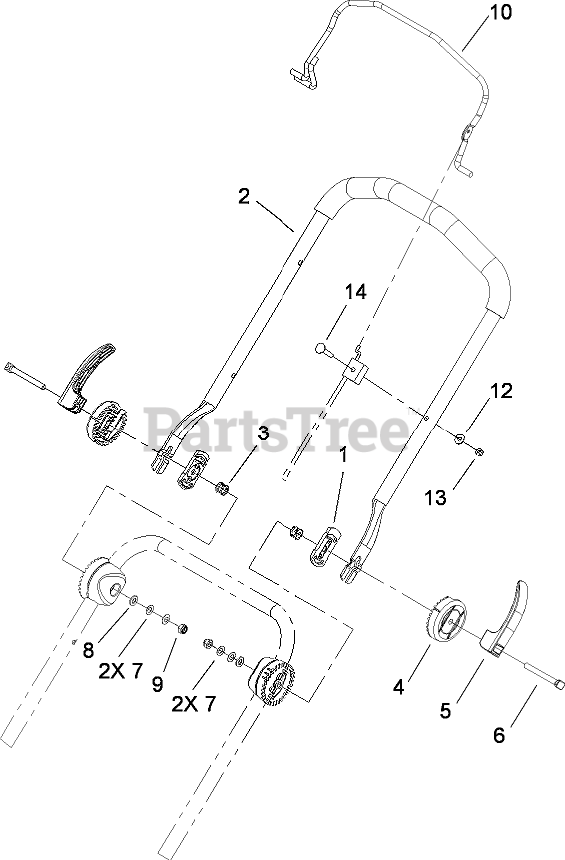

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 110-9313

PLATE-ADJUST, HANDLE

$

$

Currently unavailable

2

Toro 112-8597

HP UPPER HANDLE ASM

$

$

Not available

3

Toro 110-9392

SPRING-ADJUST, HANDLE

$

$

Currently unavailable

4

Toro 110-9316

MOUNT-HANDLE, UPPER

$

$

Currently unavailable

5

Toro 110-9296

LEVER-LOCKING, HANDLE

$

$

Currently unavailable

6

Toro 95-6996

BOLT-T HEAD, UPPER

$

$

Currently unavailable

7

Toro 110-9335

WASHER-SPRING

$

$

Currently unavailable

8

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

9

Toro 106-4757

NUT-HEX

$

$

Currently unavailable

10

Toro 110-9323

BRAKE BAIL ASM

$

$

Not available

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 106-8576

NUT-HEX

$

$

Not available

14

Toro 114-5355

BOLT-RH

$

$

Currently unavailable
