21022 - Toro 40cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

40cm Recycler Walk-Behind Mower

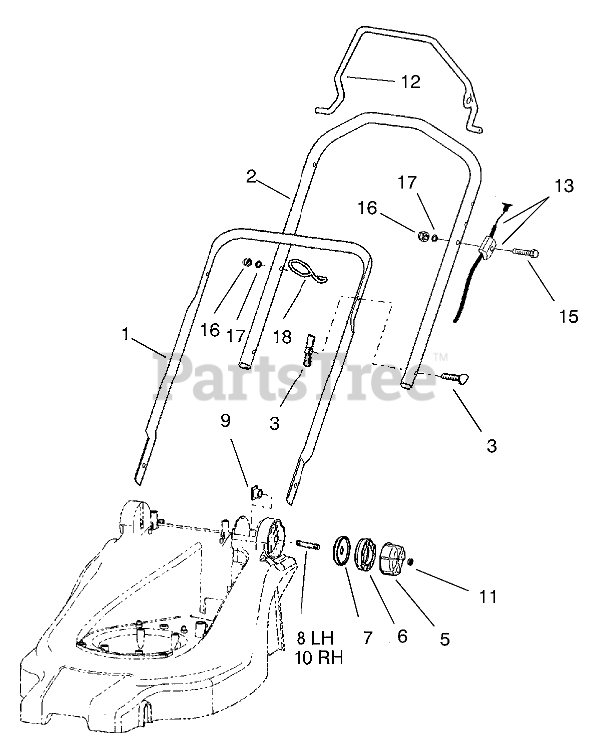

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6514

HANDLE - LOWER

$

$

Not available

2

Toro 95-6518

Handle-Upper

$

$

Not available

3

Toro 95-6718

BOLT AND SCREW SET

$

$

Not available

5

Toro 95-6713

KNOB-ADJUSTING

$

$

Not available

6

Toro 95-6567

ADJUSTING DISK-HANDLE

$

$

Not available

7

Toro 95-6568

DISC-HOLDING

$

$

Not available

8

Toro 95-6694

STUD-LH

$

$

Not available

9

$

$

Not available

10

Toro 95-6777

STUD-RH

$

$

Not available

11

$

$

Not available

12

Toro 95-6588

Bail-Brake

$

$

Not available

13

Toro 95-6592

Cable-Brake

$

$

Not available

15

Toro 95-6729

SCREW

$

$

Not available

16

$

$

Not available

17

Toro 95-6731

WASHER

$

$

Not available

18

Toro 95-6710

Guide-Rope

$

$

Not available
