21020 - Toro 40cm Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) CMOTOR AND BLADE ASSEMBLY MODEL-NO. 21020, 21022 Parts Diagram

40cm Recycler Walk-Behind Mower

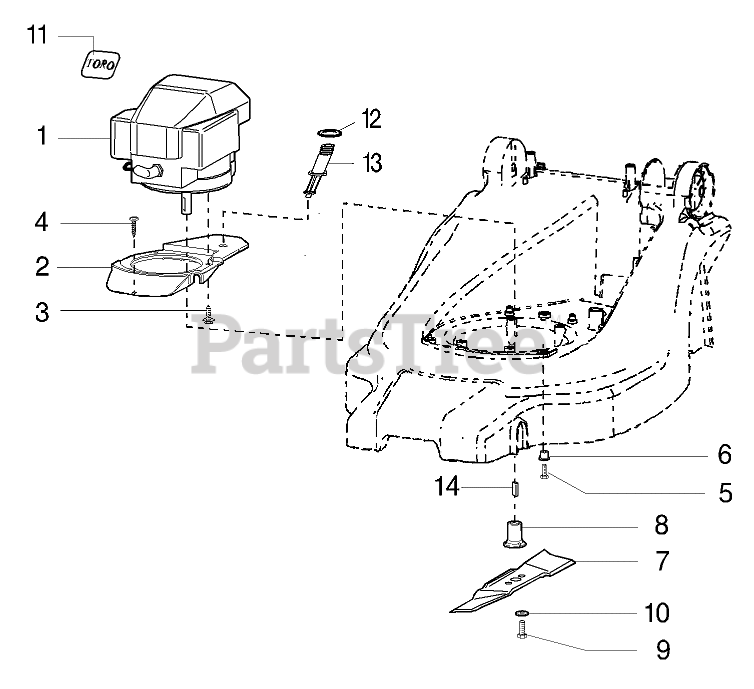

CMOTOR AND BLADE ASSEMBLY MODEL-NO. 21020, 21022 Parts Diagram

  • Title

1

Toro 95-6905

Engine-Briggs and Stratton, Q45

$

$

Currently unavailable

2

Toro 95-6832

Mount-Adapter-Engine

$

$

Currently unavailable

3

Toro 92-1648

SCREW-MOUNT, ENGINE
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

4

Toro 95-6632

CAPACITOR

$42.99

$

Usually ships in 3-6 days

0

5

Toro 95-6689

SCREW

$

$

Not available

6

Toro 95-6705

Distance

$0.99

$

Usually ships in 3-6 days

0

7

Toro 95-6583

BLADE

$

$

Not available

8

Toro 95-6792

Retainer-Blade (incl. Ref.#14)

$

$

Not available

9

Toro 95-6728

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10

Toro 95-6727

WASHER-SPRING

$4.49

$

Usually ships in 3-6 days

0

11

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

12

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

13

Toro 95-6537

Hose-Adapter

$

$

Not available

14

Toro 95-6787

Parallel-Key

$

$

Currently unavailable
