21020 - Toro 40cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) BAG & RECYCLING PARTS MODEL-NO. 21020, 21022 Parts Diagram

40cm Recycler Walk-Behind Mower

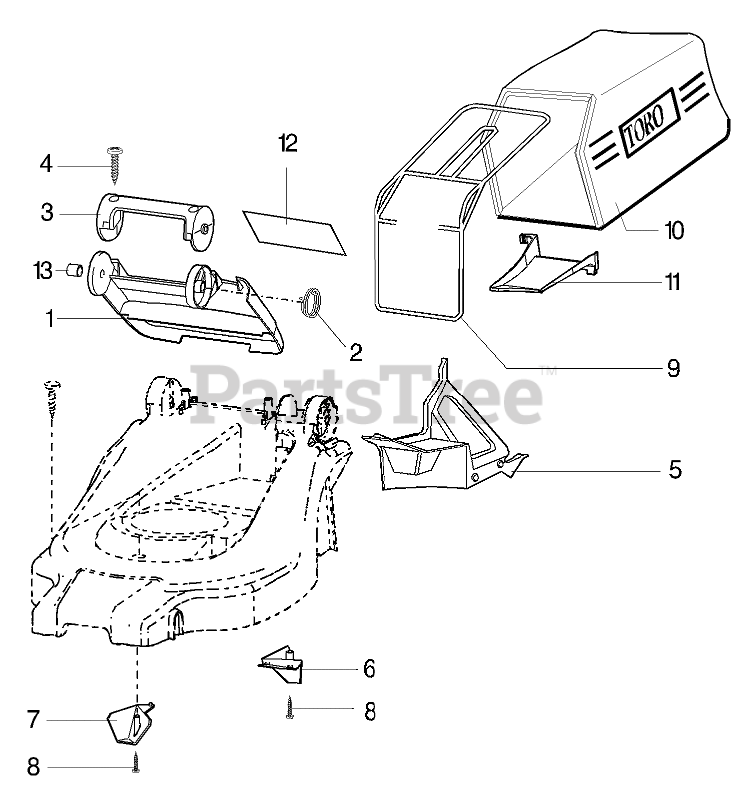

BAG & RECYCLING PARTS MODEL-NO. 21020, 21022 Parts Diagram

  • Title
1

Toro 95-6711

Rear Door (incl. Ref.#13)

$

$

Not available

2

Toro 95-6739

Spring-Rear Door

$

$

Currently unavailable

3

Toro 95-6751

Handle

$

$

Currently unavailable

4

Toro 95-6698

SCREW

$

$

Not available

5

Toro 95-6579

Plug-Recycler

$

$

Not available

6

Toro 95-6575

KICKER-MIDDLE

$

$

Not available

7

Toro 95-6753

Kicker-Front
(Superseded to 95-6861)

$

$

Not available

8

Toro 95-6560

SCREW-BUTTON HEAD, TORX

$

$

Not available

9

Toro 95-6552

FRAME-BAG

$

$

Not available

10

$

$

Not available

11

Toro 95-6554

Ramp-Bag

$

$

Not available

12

Toro 95-6573

DECAL-SAFETY

$

$

Not available

13

Toro 95-6770

BUSHING-REAR, DOOR

$

$

Not available

Toro 95-6776

ManuaI-GB

Note: Not illustrated

$9.68

$

Usually ships in 3-6 days

0

Toro 65-6775

Manual-German/Dutch/French/Italien

Note: Not illustrated

$

$

Currently unavailable
