21014 - Toro 43cm Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) REAR AXLE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

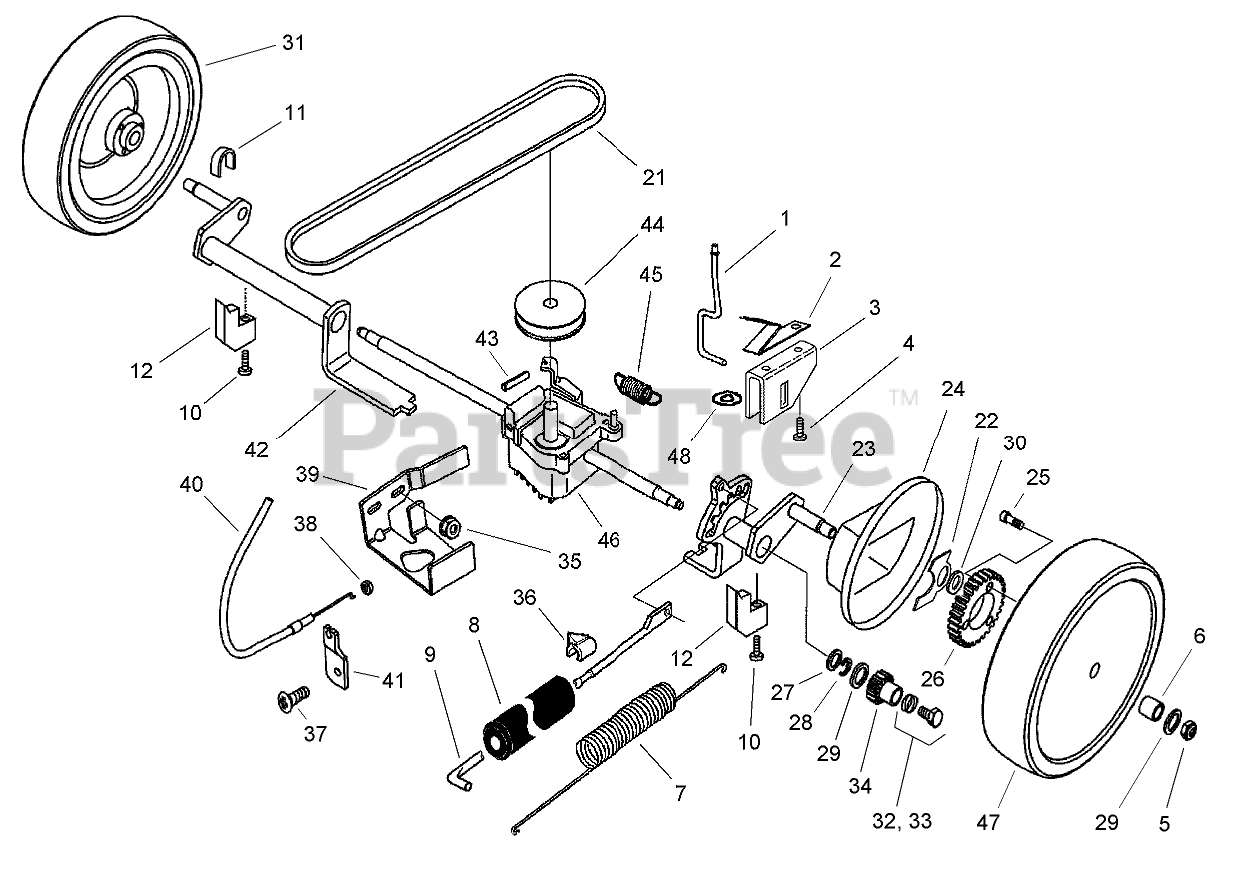

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3232

ROD-TRIGGER

$

$

Not available

2

Toro 93-4062

SPRING-RETURN, TRIGGER

$6.49

$

Usually ships in 3-6 days

0

3

Toro 93-4066

SADDLE-HEIGHT OF CUT

$

$

Not available

4

Toro 93-4095

SCREW-RH

$

$

Not available

5

Toro 93-4098

NUT-HH

$3.49

$

Usually ships in 3-6 days

0

6

Toro 93-7023

BUSHING

$4.49

$

Usually ships in 3-6 days

0

7

Toro 71-7740

SPRING-COUNTERBALANCE

$47.99

$

Usually ships in 3-6 days

0

8

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

9

Toro 93-4065

ROD-LINK

$

$

Not available

10

Toro 93-3793

SCREW-RETAINER

$

$

Not available

11

Toro 98-3226

CAP-AXLE, REAR

$

$

Not available

12

Toro 98-3216

RETAINER-AXLE

$

$

Not available

21

Toro 93-4118

BELT - V

$

$

Not available

22

Toro 93-3783

WHEEL-REAR

$

$

Not available

22

Toro 95-6909

PLATE-LOCKING

$

$

Not available

23

Toro 95-6912

AXLE-REAR, LEFT

$

$

Not available

24

Toro 93-4067

COVER-WHEEL

$

$

Not available

25

Toro 95-6925

SCREW-WHEEL

$

$

Not available

26

Toro 93-4068

GEAR-WHEEL

$19.99

$

Usually ships in 3-6 days

0

27

Toro 93-3792

WASHER-COVER

$2.49

$

Usually ships in 3-6 days

0

28

Toro 93-3791

WASHER-AXLE

$2.49

$

Usually ships in 3-6 days

0

29

Toro 93-4099

WASHER-GEAR

$

$

Not available

30

Toro 95-6945

WASHER

$

$

Not available

31

Toro 93-3783

WHEEL-REAR

$

$

Not available

32

Toro 99-1715

LEFT BUSHING ASM

$

$

Not available

33

Toro 99-1716

RIGHT BUSHING ASM

$

$

Not available

34

$

$

Not available

35

$

$

Not available

36

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$9.99

$

Usually ships in 3-6 days

0

37

Toro 93-4116

SCREW-BRACKET

$

$

Not available

38

Toro 106-4758

Nut-Cable

$

$

Not available

39

Toro 106-4759

Guide-Belt

$

$

Not available

40

Toro 106-4760

Cable-Drive
(Superseded to 95-6950)

$

$

Not available

41

Toro 106-4761

Retainer-Cable

$

$

Not available

42

Toro 95-6913

AXLE-REAR, RIGHT

$

$

Currently unavailable

43

Toro 106-4762

Pin-Roll

$

$

Currently unavailable

44

Toro 106-4763

PULLEY-GEARBOX

$

$

Not available

45

Toro 106-4764

Spring-Clutch

$

$

Not available

46

Toro 106-4765

GEARBOX ASM

$

$

Not available

47

Toro 93-9836

WHEEL-SMART, REAR

$

$

Not available

48

Toro 106-4790

Washer

$

$

Currently unavailable
