21014 - Toro 43cm Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) HANDLE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

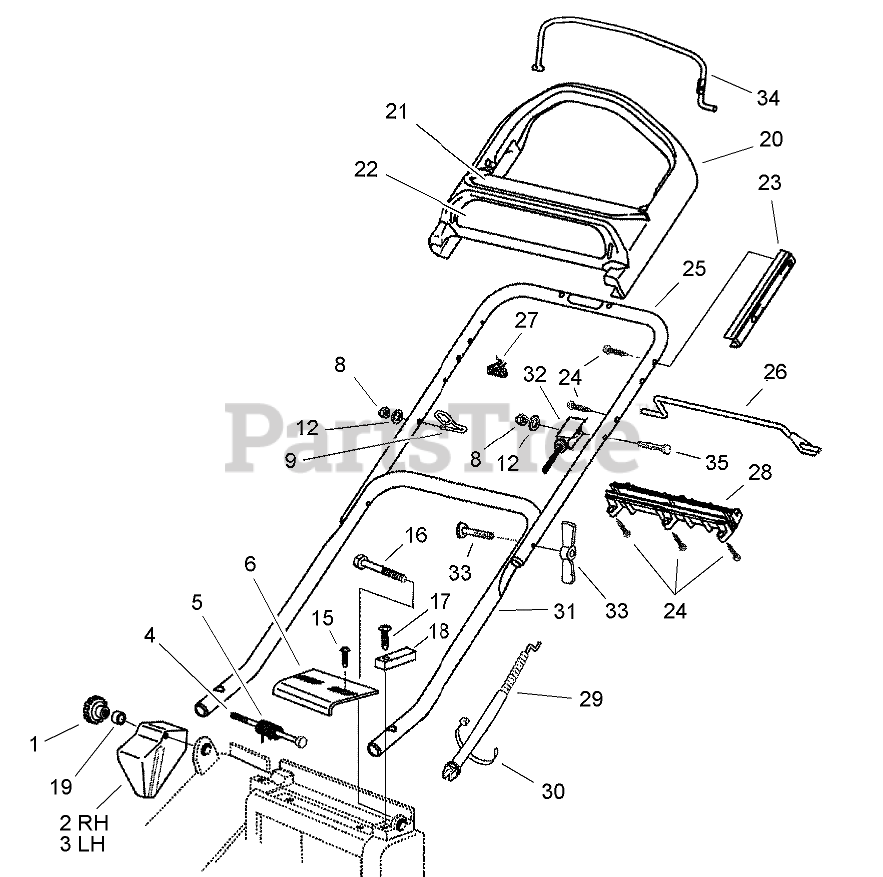

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

2

Toro 99-1710

MOUNT-HANDLE, RIGHT

$

$

Currently unavailable

3

Toro 99-1705

MOUNT-HANDLE, LEFT

$

$

Not available

4

Toro 93-4058

BOLT-LONG

$15.99

$

Usually ships in 3-6 days

0

5

Toro 93-4057

SPRING-DOOR

$

$

Not available

6

Toro 71-7860

GRIP-UPPER

$

$

Not available

8

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

9

Toro 95-4457

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

16

Toro 93-4060

BOLT-SHORT

$

$

Not available

17

Toro 93-4094

SCREW-CAP, HINGE

$

$

Not available

18

Toro 93-4056

CAP-BOLT

$

$

Not available

19

Toro 99-1717

SPACER-MOUNT, HANDLE

$

$

Not available

20

Toro 95-6845

Handle-Control

$

$

Currently unavailable

21

Toro 106-4792

Decal-Control

$

$

Not available

22

Toro 106-4793

Decal-Drive

$

$

Not available

23

Toro 99-1590

GUIDE-HANDLE, CONTROL

$16.99

$

In Stock, only 3 left!

0

24

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

25

Toro 95-6846

Handle-Upper

$

$

Currently unavailable

26

Toro 95-6847

Bar-Control, Traction

$

$

Not available

27

Toro 95-6849

Spring-Torsion

$

$

Not available

28

Toro 99-6008

RETAINER-CONTROL ROD, TRACTION

$36.99

$

Usually ships in 3-6 days

0

29

Toro 106-4754

Cable-Brake

$

$

Not available

30

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

31

Toro 95-6851

Handle-Lower

$

$

Not available

32

Toro 106-4760

Cable-Drive
(Superseded to 95-6950)

$

$

Not available

33

Toro 95-6718

BOLT AND SCREW SET

$

$

Not available

34

Toro 95-6858

Bail-Brake

$

$

Not available

35

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0
