21014 - Toro 43cm Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) REAR AXLE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

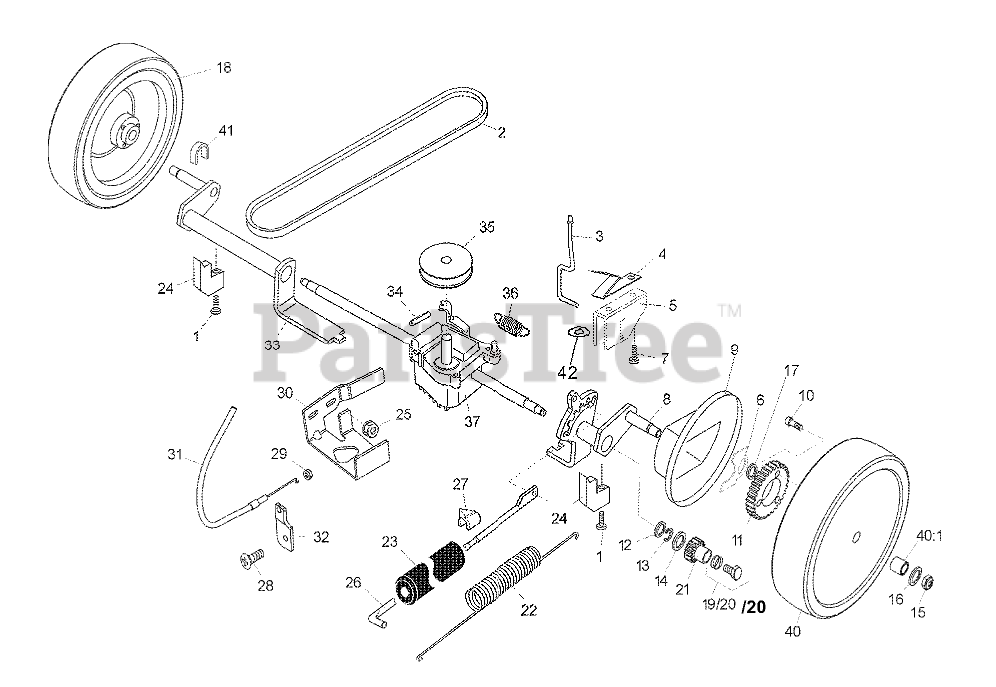

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 93-3793

SCREW-RETAINER

$

$

Not available

2

Toro 93-4118

BELT - V

$

$

Not available

3

Toro 98-3232

ROD-TRIGGER

$

$

Not available

4

Toro 93-4062

SPRING-RETURN, TRIGGER

$6.49

$

Usually ships in 3-6 days

0

5

Toro 93-4066

SADDLE-HEIGHT OF CUT

$

$

Not available

6

Toro 95-6909

PLATE-LOCKING

$

$

Not available

7

Toro 93-4095

SCREW-RH

$

$

Not available

8

Toro 95-6912

AXLE-REAR, LEFT

$

$

Not available

9

Toro 93-4067

COVER-WHEEL

$

$

Not available

10

Toro 95-6925

SCREW-WHEEL

$

$

Not available

11

Toro 93-4068

GEAR-WHEEL

$19.99

$

Usually ships in 3-6 days

0

12

Toro 93-3792

WASHER-COVER

$2.49

$

Usually ships in 3-6 days

0

13

Toro 93-3791

WASHER-AXLE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 93-4099

WASHER-GEAR

$

$

Not available

15

Toro 93-4098

NUT-HH

$3.49

$

Usually ships in 3-6 days

0

16

Toro 93-4099

WASHER-GEAR

$

$

Not available

17

Toro 94-6723

CAP-AXLE, REAR

$

$

Not available

18

Toro 93-3783

Wheel-Rear (incl. Ref. 40:1)

$

$

Not available

19

Toro 99-1715

LEFT BUSHING ASM

$

$

Not available

20

Toro 99-1716

RIGHT BUSHING ASM

$

$

Not available

21

$

$

Not available

22

Toro 71-7740

SPRING-COUNTERBALANCE

$47.99

$

Usually ships in 3-6 days

0

23

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

24

Toro 98-3216

RETAINER-AXLE

$

$

Not available

25

$

$

Not available

26

Toro 93-4065

ROD-LINK

$

$

Not available

27

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$9.99

$

Usually ships in 3-6 days

0

28

Toro 93-4116

SCREW-BRACKET

$

$

Not available

29

Toro 106-4758

Nut-Cable

$

$

Not available

30

Toro 106-4759

Guide-Belt

$

$

Not available

31

Toro 106-4760

Cable-Drive (incl. Ref. 29)
(Superseded to 95-6950)

$

$

Not available

32

Toro 106-4761

Retainer-Cable

$

$

Not available

33

Toro 95-6913

AXLE-REAR, RIGHT

$

$

Currently unavailable

34

Toro 106-4762

Pin-Roll

$

$

Currently unavailable

35

Toro 106-4763

PULLEY-GEARBOX

$

$

Not available

36

Toro 106-4764

Spring-Clutch

$

$

Not available

37

Toro 106-4765

Gearbox Ass. (Incl. Ref # 34+35 )

$

$

Not available

40

Toro 93-9836

Wheel-Rear (incl. SmartWheel)

$

$

Not available

40:1

Toro 93-7023

BUSHING

$4.49

$

Usually ships in 3-6 days

0

41

Toro 98-3226

CAP-AXLE, REAR

$

$

Not available

42

Toro 106-4790

Washer

$

$

Currently unavailable
