21014 - Toro 43cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

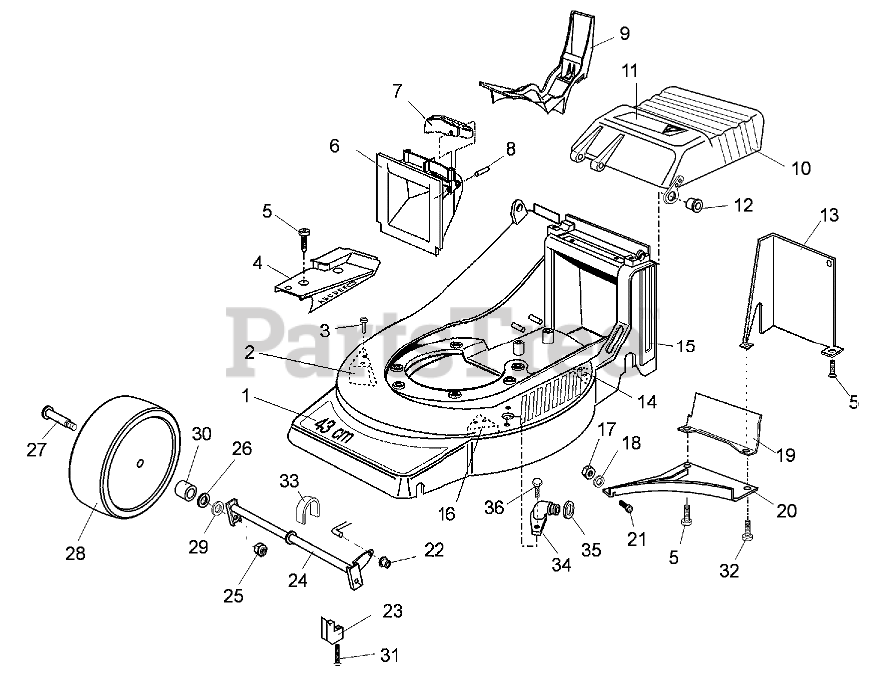

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6839

DECAL

$186.99

$

Usually ships in 3-6 days

0

2

Toro 93-3730

KICKER

$16.99

$

Usually ships in 3-6 days

0

3

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 106-4750

Cover-Belt

$

$

Not available

5

Toro 93-4095

SCREW-RH

$

$

Not available

6

Toro 93-4054

GRIP-LOWER

$23.99

$

Usually ships in 3-6 days

0

7

Toro 98-3236

TRIGGER-HEIGHT OF CUT

$

$

Not available

8

Toro 3284-5

PIN-SPIRAL

$

$

Not available

9

$98.99

$

Usually ships in 3-6 days

0

10

Toro 99-1700

DISCHARGE DOOR ASM

$

$

Not available

11

Toro 99-1708

DECAL-DANGER

$

$

Not available

12

Toro 93-3794

BUSHING-DOOR

$

$

Not available

13

Toro 98-1429

COVER-SHIELD

$

$

Not available

14

Toro 93-3750

KICKER

$16.99

$

Usually ships in 3-6 days

0

15

Toro 106-4751

Housing-Deck (Incl. Ref #2, 14 + 16)

$

$

Not available

16

Toro 93-3740

KICKER

$16.99

$

Usually ships in 3-6 days

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 93-4110

BAFFLE-BAGGER, REAR

$

$

Not available

20

Toro 93-3720

BAFFLE

$

$

Not available

21

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

22

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

23

Toro 98-3216

RETAINER-AXLE

$

$

Not available

24

Toro 93-4080

AXLE-FRONT

$87.99

$

Usually ships in 3-6 days

0

25

Toro 99-1711

Nut-Lock
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

26

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

27

Toro 99-1712

Bolt-Wheel
(Superseded to 27-6231)

$5.99

$

In Stock, Qty 7

0

28

Toro 93-4081

Wheel-Front (incl. Ref. No. 30)

$

$

Not available

29

Toro 99-1713

WASHER-SPRING

$

$

Not available

30

Toro 93-7024

BUSHING

$4.49

$

Usually ships in 3-6 days

0

31

Toro 93-3793

SCREW-RETAINER

$

$

Not available

32

Toro 94-1864

SCREW-BAFFLE

$

$

Not available

33

Toro 98-3222

CAP-AXLE, FRONT

$

$

Not available

34

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

35

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

36

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0
