21013 - Toro 43cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

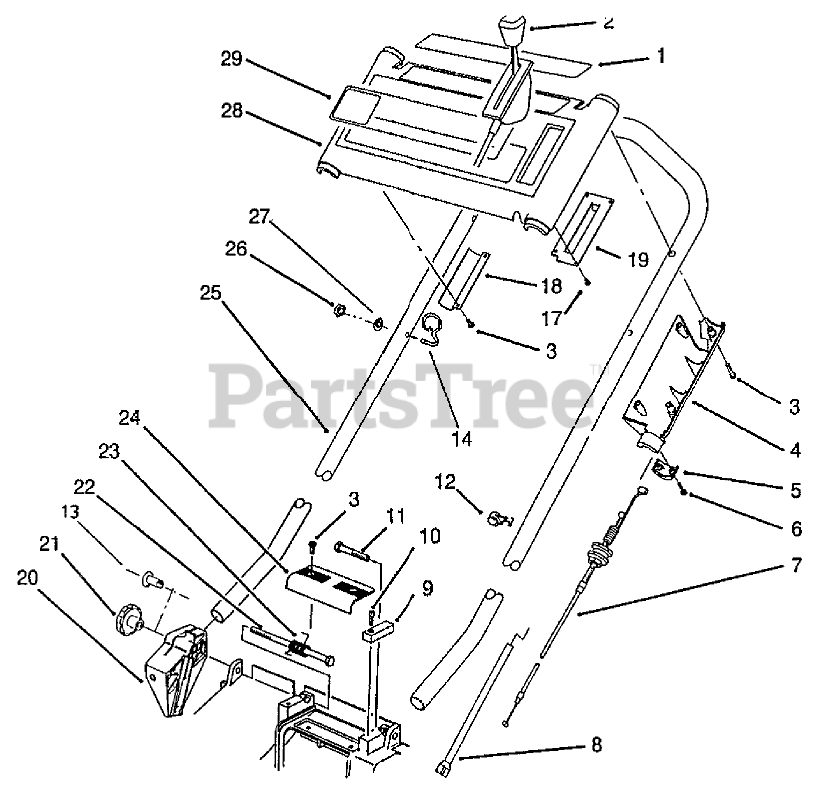

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-6026

DECAL - CONTROL PANEL

$

$

Not available

2

Toro 93-1117

CONTROL - THROTTLE

$94.99

$

Usually ships in 3-6 days

0

3

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

4

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

5

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

6

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

7

Toro 99-1718

CABLE-TRACTION

$

$

Not available

8

Toro 99-1719

CABLERAKE

$

$

Not available

9

Toro 93-4056

CAP-BOLT

$

$

Not available

10

Toro 93-4094

SCREW-CAP, HINGE

$

$

Not available

11

Toro 93-4060

BOLT-SHORT

$

$

Not available

12

Toro 93-4084

CLAMP-CABLE

$

$

Not available

13

Toro 99-1717

SPACER-MOUNT, HANDLE

$

$

Currently unavailable

14

Toro 95-4457

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

17

Toro 32144-98

#6-19X.25 PLASK FORM SC

$1.99

$

Usually ships in 3-6 days

0

18

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

19

Toro 71.8040

Plate-Throttle

$

$

Currently unavailable

20

Toro 99-1710

Mount-Handle RH (Incl. Ref. # 13)

$

$

Currently unavailable

Toro 99-1705

Mount-Handle LH (Incl. Ref. # 13)

Note: Not illustrated

$

$

Not available

21

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

22

Toro 93-4058

BOLT-LONG

$13.99

$

Usually ships in 3-6 days

0

23

Toro 93-4057

SPRING-DOOR

$8.49

$

Usually ships in 3-6 days

0

24

Toro 71-7860

GRIP-UPPER

$

$

Not available

25

Toro 98-1440

HANDLE-SP

$

$

Not available

26

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

27

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 17-4319

Panel-Control (Incl.
(Superseded to 94-9436)

$

$

Not available

29

Toro 92-7865

DECAL - PANEL

$

$

Not available
