21013 - Toro 43cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) REAR AXLE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

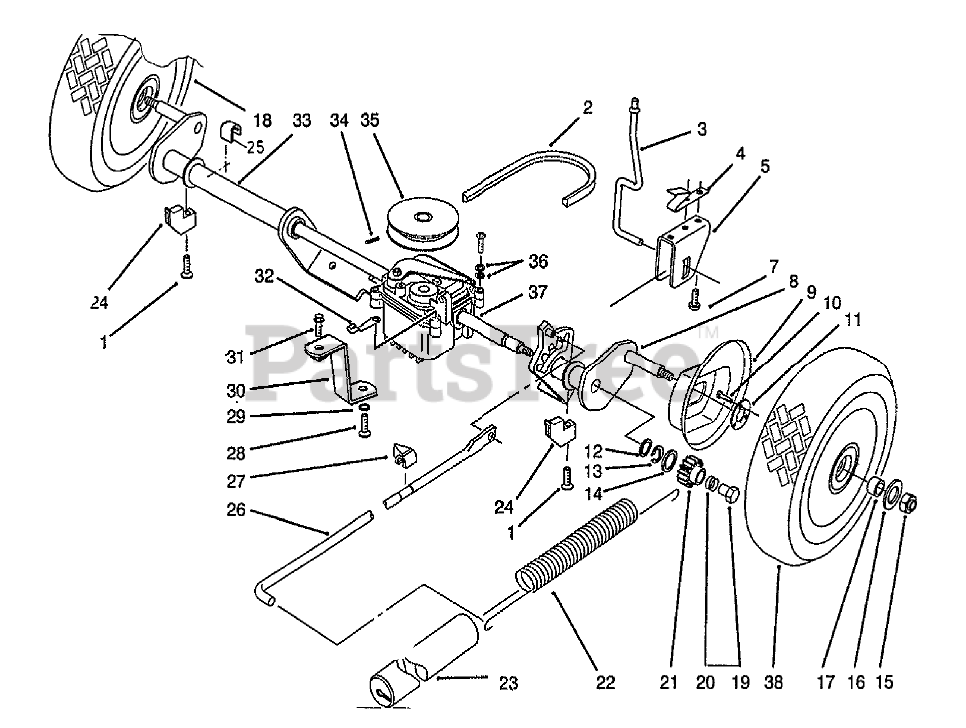

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-3793

SCREW-RETAINER

$

$

Not available

2

Toro 93-4118

BELT - V

$

$

Not available

3

Toro 98-3232

ROD-TRIGGER

$

$

Not available

4

Toro 93-4062

SPRING-RETURN, TRIGGER

$6.49

$

Usually ships in 3-6 days

0

5

Toro 93-4066

SADDLE-HEIGHT OF CUT

$

$

Not available

7

Toro 93-4095

SCREW-RH

$

$

Not available

8

Toro 93-4077

AXLE - REAR

$

$

Not available

9

Toro 93-4067

COVER-WHEEL

$

$

Not available

10

Toro 106-4788

Screw-Wheel Gear
(Superseded to 95-6925)

$

$

Not available

11

Toro 93-4068

GEAR-WHEEL

$20.99

$

Usually ships in 3-6 days

0

12

Toro 93-3792

WASHER-COVER

$2.49

$

Usually ships in 3-6 days

0

13

Toro 93-3791

WASHER-AXLE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 93-4099

WASHER-GEAR

$

$

Not available

15

Toro 93-4098

NUT-HH

$3.49

$

Usually ships in 3-6 days

0

16

Toro 93-4097

WASHER-WHEEL

$

$

Not available

17

Toro 93-7023

BUSHING

$4.49

$

Usually ships in 3-6 days

0

18

Toro 93-3783

Wheel Rear (incI.Ref # 17)

$

$

Not available

19

Toro 99-1715

LEFT BUSHING ASM

$

$

Not available

20

Toro 99-1716

RIGHT BUSHING ASM

$

$

Not available

21

Toro 93-4072

GEAR

$

$

Not available

22

Toro 71-7740

SPRING-COUNTERBALANCE

$50.99

$

Usually ships in 3-6 days

0

23

Toro 71-8450

COVER-SPRING

$

$

Not available

24

Toro 98-3216

RETAINER-AXLE

$

$

Not available

25

Toro 98-3226

CAP-AXLE, REAR

$

$

Not available

26

Toro 93-4065

ROD-LINK

$

$

Not available

27

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$10.99

$

Usually ships in 3-6 days

0

28

Toro 93-4116

SCREW-BRACKET

$

$

Not available

29

Toro 93-4115

WASHER - BRACKET

$

$

Not available

30

Toro 93-4112

BRACKET - GEARBOX

$

$

Not available

31

Toro 93-4114

SCREW - BRACKET

$

$

Not available

32

Toro 93-7018

HOLDER - CABLE

$

$

Not available

33

Toro 93-4078

AXLE - REAR

$

$

Not available

34

Toro 93-4113

PIN - ROLL

$

$

Not available

35

Toro 93-4111

PULLEY - GEARBOX

$

$

Not available

36

Toro 93-7019

WASHER

$

$

Not available

37

Toro 93-4073

ASSEMBLY - GEAR CASE

$

$

Not available

38

Toro 93-9836

Smartwheel Rear (Incl. Ref # 17)

$

$

Not available
